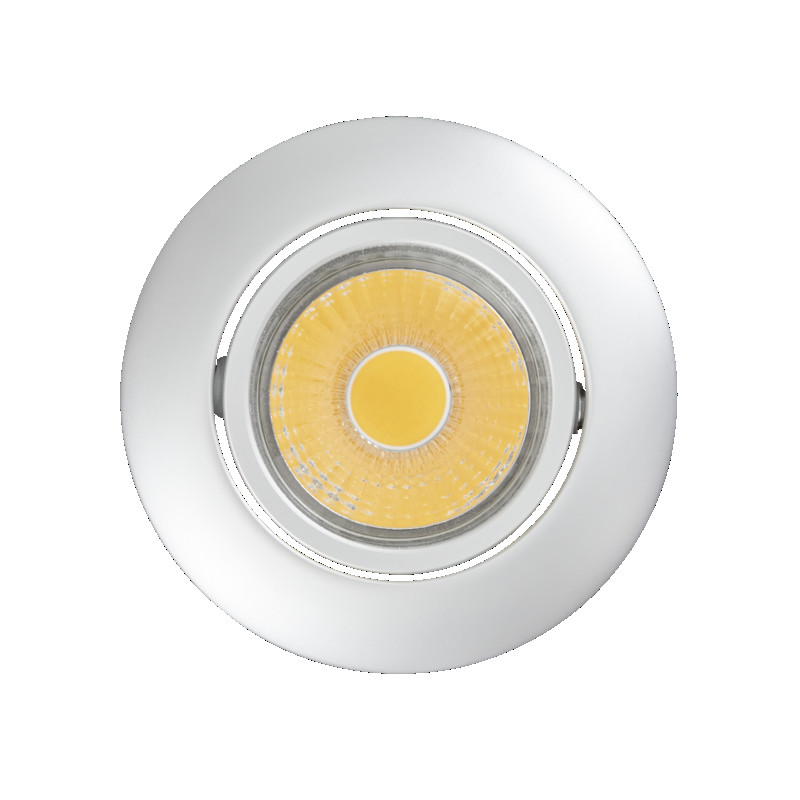

A 5068 T Flat dimmable (C)

For use in spot and general lighting.

Ideal problem solver for ceilings with low installation depth

Front glass

Genuine glass reflector

Aluminum heat sink

The luminaire is only suitable for installation in false ceilings. Installed downlight must not be covered by insulation material. Ensure constant convection.

Installation housing: the LED Downlight can generally be installed in all standard housings for the installation in concrete ceilings; specially tested are the housings from KAISER: HaloX® 100 with tunnel 190 (Type 1281-30) + Front section, i. e. type 1281-11/HaloX® 180 with tunnel 190 (Type 1282-72/1282-75)

Material: die-cast aluminium

Surface: powder coated or galvanized

Suitable for ceiling cut-out: 68 mm

Colour rendering index Ra: 90

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

LED driver included: dimmable with trailing edge

Terminal block and through-wiring (L, N, PE)

Einbaudosen: generell kann das LED Downlight in allen gängigen Betoneinbaugehäusen installiert werden; speziell getestet sind folgende Typen von KAISER: HaloX® 100 mit Tunnel 190 (Type 1281-30) + Frontteil, Bsp. Type 1281-11/HaloX® 180 mit Tunnel 190 (Type 1282-72/1282-75)

Passend für Einbaudurchmesser: 68 mm

Farbwiedergabeindex Ra: 90

Farbabstand (McAdam): 3 SDCM

Lebensdauer: 50.000 (L80 B10)

Betriebsgerät inklusive: dimmbar über Phasenabschnitt

Anschlussbox mit Durchgangsverdrahtung (L, N, PE) und Steckklemmen

Material: Aluminiumdruckguss; Oberfläche: pulverbeschichtet oder galvanisiert
