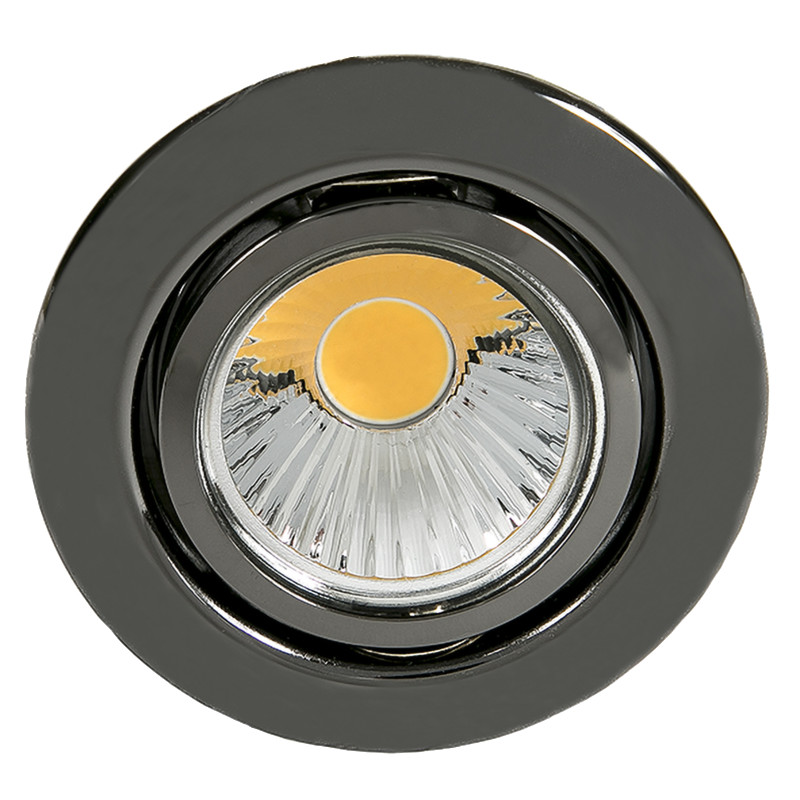

D 3830 black chrome
EAN: 4044538007946
For use in general lighting. The reliable and patented mechanics guarantees fast and easy lamp change. Suitable for ceiling cut-out of 68 mm.
*The F-sign requirements are met only if screwed on spacer applied or if downlight is fitted with an LED light source.
The D 3830 series can also be equipped with:
GU10 LED 6W SCCT
LED Module D50 Glass reflector BIO-Spectrum
LED Module D50 with lense
COB LED Module for N 5800
Material: steel/inner ring brass
Surface: powder-coated or galvanized
Accessories: Heat can, high-voltage kit, low-voltage spacer, version with loudspeaker LS 1000, loudspeaker element LS 51
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Degree of protection IP20 Impact strength without Thermal insulation mark yes Installation, electrical engineering expertise yes Distance to objects [m] 0,5 Only for indoor use yes Furniture installation, fire protection 'MM' only applicable with LED light source * F-Test mark only applicable with screwed on spacer or LED light source Installation in insulated ceilings, fire protection 'F with roof' yes Installation into any material with normal flammability not applicable with a halogen lamp Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Product contents
With light source no Including LED driver no - Dimensions and weight

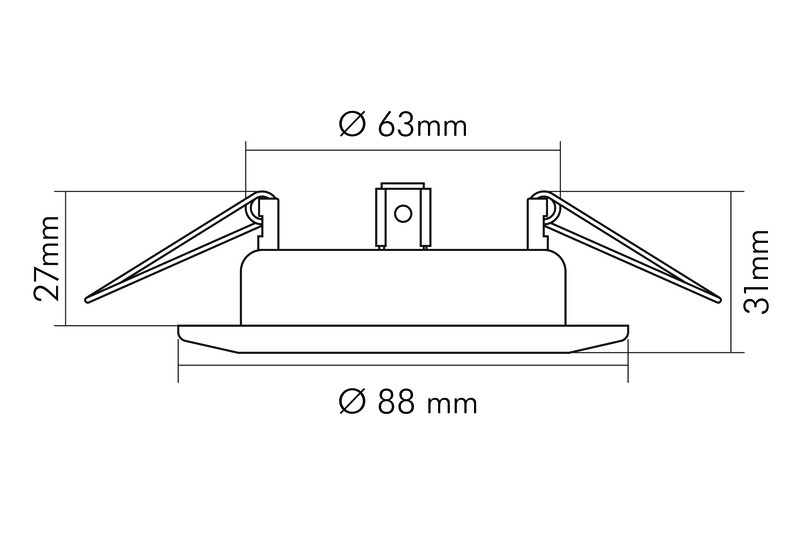

Diameter [mm] 88 Height [mm] 31 Weight [g] 139 Ceiling cut-out [diameter] [mm] 68 Built-in depth [mm] 53,5 - Other specifications
Operation by Bluetooth no Adjustability Swivelling Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for clamp-mounting no Suitable for suspended mounting no Suitable for built-in mounting yes Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light-track mounting no Suitable for light-track mounting no Adjustable [°] 20 Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Suitable for lighting accessories no - Material and colour
Material steel/inner ring brass Colour black chrome Surface finishing galvanized - Electrical specifications
Lamp power [W] 50 Lamp holder without Exchangeable LED driver yes Through-wiring possible no Electrical connection with connector system no - Technical lighting specifications
Light cone Narrow beam 11 - 20° Fit for monitor workplace acc. EN 12464-1 no Light distributor without Colour controllable (RGB) no Light outlet direct Lamp type other Suitable for number of lamps 1
