EN-60 D2

Series EN-D2 – Electronic Transformer with Thermoswitch
SKU: 6992006000
EAN: 4044538001470
Article Choice

Independent transformer with covered screw terminals. Especially for use in small openings. Spacious terminal section for easy wiring.

Fits into downlight cut-out from 47 mm Ø onwards.

Dimmable with any standard leading and trailing edge dimmer.

Thermoswitch ensures exact switch off in case of overheating (automatic restart).

Active power factor: cos phi ≈ 0,98

weniger lesen
mehr lesen

Downloads

ProduktdatenblattProduktdatenblatt

Technical Data

  • Temperature specifications
    Case temperature [Tc] [°C] 65
  • Protection specifications
    CE-Conformity yes
    RoHS yes
    SELV yes
    Protection class II
    Degree of protection IP20
    With secondary automatic circuit breaker no
    Safety transformer yes
    Short-circuit protected yes
    Protection against short-circuit yes
    Protection against overheating yes
    Temperature protection shutdown at [°C] 100
    Installation, electrical engineering expertise yes
    Only for indoor use yes
    Furniture installation, fire protection 'MM' yes
    * F-Test mark yes
    Thermoswitch yes
  • Material and colour
    Material housing synthetic material
    Colour blue/white
  • Electrical specifications
    Type of transformer electronic transformer
    Lamp power [W] 20 - 60
    Input frequency [Hz] 50/60 Hz
    Connection type primary covered screw terminals
    Connection type secondary covered screw terminals
    Dimmable yes
    Type of dimming leading edge/trailing edge
    Active power factor [cos phi] 0,98
    Input voltage [AC] [V] 230
    Output voltge [AC] [V] 11,8
    Number of output positions (pairs) 1
  • Other specifications
    Compatible with Apple HomeKit no
    Compatible with Google Assistant no
    Compatible with Amazon Alexa no
    IFTTT support available no
    Kind of disposal at the end of the life time specific collection points, please consider the local regulations
    Built-in yes
    Surface-mounted no
    Independant installation yes

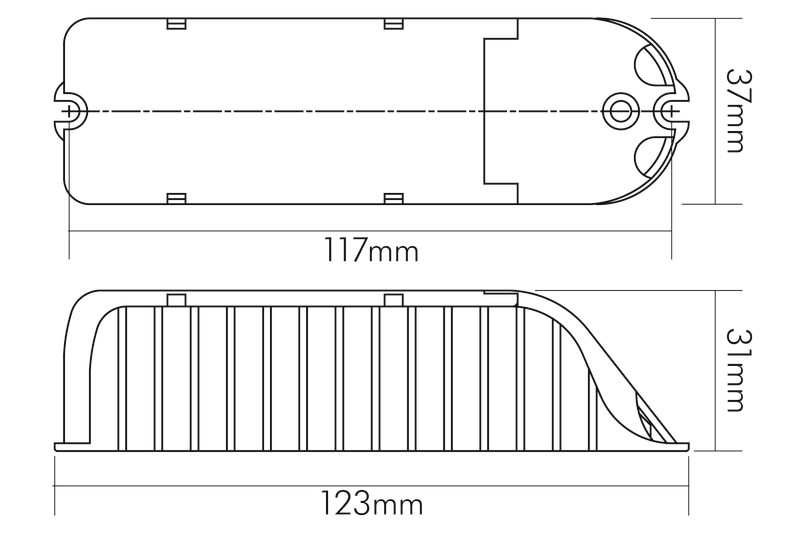

  • Dimensions and weight
    Length [mm] 123
    Width [mm] 37
    Height [mm] 31
    Weight [g] 120
    Ceiling cut-out [mm] 47
