LED Module D50 with optics 6,3W neutral white 38°
SKU:
8053211903EAN: 4044538050157
High-performance circuit board with COB LEDs and aluminium heat-sink for an optimal thermal management. Optimized efficiency level reached by an especially calculated lens with prismatic structure, emitting a harmonic, even light.
The nobilé developed LED Module D50 is excellently suited to keeping existing light installations at the newest and highest energy saving status. You can change over to the long-life LED technology within very little effort. Up to 80% energy savings in comparison to similar halogen lamps.
Ensure constant convection and do not cover by insulation material.
Material: aluminium/polycarbonate
Dimensions (ØxH): 50x38 mm
Connecting cable: 15 cm 2x0.33 mm² with AMP plug-system 2-pole
Colour rendering index Ra: 90
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
Recommendation LED driver:
Part no. 8999038350 EL-8R-350 non dim, non dimmable
Part no. 8999028350 EL-8R-350 D dim C, dimmable with trailing edge
Part no. 8990200000 EL-7R-350 D dim C, dimmable with trailing edge
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] -20 - 40 - Energy consumption labeling

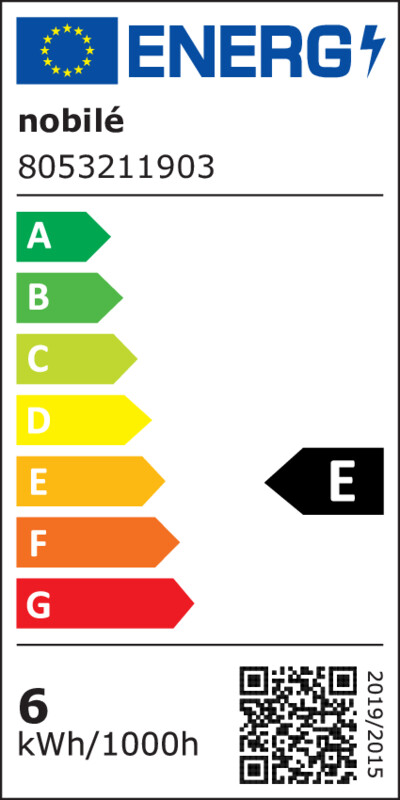

Energy efficiency class E Part number of the light source 8053211903 EPREL-Registration number 970546 - Protection specifications
CE-Conformity yes RoHS yes Protection class III Degree of protection IP44 front-facing Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Mercury-free yes Note ensure constant convection and do not cover by insulation material - Product contents
Including LED driver no - Technical lighting specifications
Type of light source DLS/NMLS Non-directional (NDLS) or directional [DLS] DLS Colour temperature [K] 4000 Colour of light neutral white LED efficiency [lm/W] 111 Total luminous flux [lm] 680 Useful luminous flux (Φuse) [lm] 640 Useful luminous flux (Φuse) related to Narrow cone (90°) Beam angle [°] 38 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 90 Colour rendering index R9 60 Chromaticity coordinates (x) 0,38 Chromaticity coordinates (y) 0,38 Peak luminous intensity [cd] 1350 L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Rated lifetime factor 0,9 Lumen maintenance factor 0,96 Lighting Technology used LED Anti-glare shield no Envelope no envelope Colour-tuneable light source no Light source replaceable no High luminance light source no Number of LEDs 1 Lens Prismatic structure Lamp type COB LED - Dimensions and weight
Length [mm] 50 Width [mm] 50 Diameter [mm] 50 Height [mm] 38 Weight [g] 80 Difference to standard dimensions yes - Material and colour
Material aluminium/polycarbonate Colour aluminium - Other specifications
Suitable for general lighting yes Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Shape round Appropriate disposal acc. to WEEE yes - Electrical specifications
Min. number of switching cycles 12500 Mains light source (MLS) or non-mains light source (NMLS) NMLS Energy consumption during operation [kWh/1000 h] 6 Lamp power [W] 6,3 Connected Light Source (CLS) no Nominal current of luminaire [mA] 350 - 50 Constant current [mA] 350 Voltage type DC Lamp holder other Connection type primary 15 cm connecting cable 2x0.33 mm² with AMP plug-system 2-pole Dimmable yes Type of dimming Led driver dependent Suitable for constant voltage no Suitable for constant current yes Warm up time to 60% nom. Lumen < [s] 1 Lamp voltage [V] 18 Forward voltage drop (DC) [V] 18 External driver required yes
