Flexible LED COB 512 5m 940 10W/m 24V IP67
LED strip light with SMD 528 with a higher IP protection
SKU:
5032528012EAN: 4044538070025

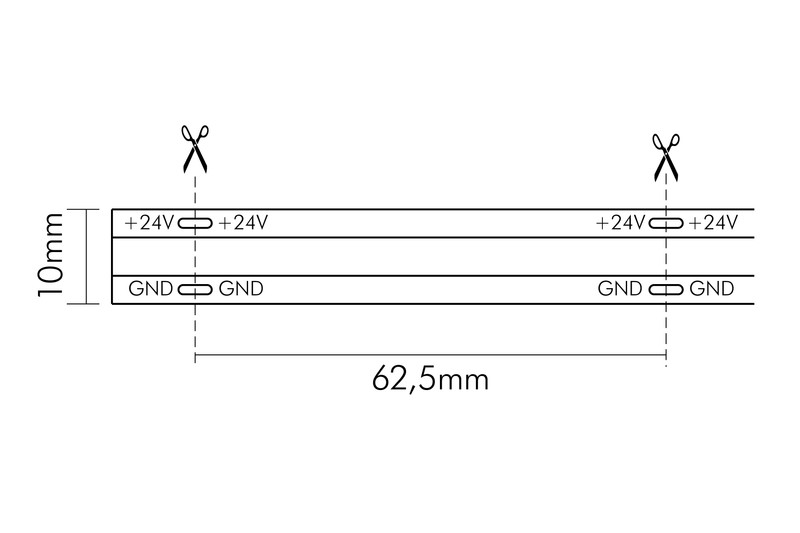

Highly flexible LED tape made of UV resistant silicone with 30 cm connecting cable on both sides; reducible in 62,5 mm (32 LEDs) sections.
Easy installation with clips and bendable track.
Dimensions (LxWxH): 5000x10x4 mm
Number of LEDs: 512/m
Colour rendering index Ra: 90
Colour distance (MacAdam): 5 SDCM
Life time: 30.000 h (L70 B50)
Recommendation LED driver: EL-24V CV series and LED PWM-5 Controller 12V/24V 8A BT
weniger lesen
Technical Data
-
Energy consumption labeling
Energy efficiency class F Part number of the light source 5032528012 EPREL-Registration number 933439 - Temperature specifications
Ambient temperature [Ta] [°C] -10 - 40 - Product contents
Including LED driver no With connection set no With end piece no - Technical lighting specifications
Type of light source NDLS/NMLS Non-directional (NDLS) or directional [DLS] NDLS Colour temperature [K] 4000 Colour of light neutral white LED efficiency [lm/W] 94 Total luminous flux per coil [lm] 4750 Total luminous flux per meter [lm] 950 Useful luminous flux (Φuse) [lm] 4700 Useful luminous flux (Φuse) per meter [lm] 940 Useful luminous flux [Φuse] per coil [lm] 4700 Useful luminous flux (Φuse) related to Wide cone (120°) Beam angle [°] 120 Colour consistency [MacAdam] [SDCM] 5 Colour rendering index Ra 90 Colour rendering index R9 51 Chromaticity coordinates (x) 0,38 Chromaticity coordinates (y) 0,38 Peak luminous intensity [cd] 130 L70B50 - life time at 25°C [h] 30000 Rated lifetime factor 0,9 Lumen maintenance factor 0,95 Lighting Technology used LED Anti-glare shield no Envelope no envelope Colour-tuneable light source no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no High luminance light source no Number of LEDs per meter 512 Number of LEDs per segment 32 Lamp type SMD-LED - Dimensions and weight
Length [mm] 5000 Length of particular segments [mm] 62,5 Width [mm] 10 Height [mm] 4 Weight [g] 278 - Protection specifications
CE-Conformity yes RoHS yes LVD Standard EN 60598-1:2015; EN 60598-2-21:2015; EN 62031:2008 + A1:2013 + A2:2015, EN 62493:2015; IEC TR 62778:2014 Protection class III Degree of protection IP67 solvent resistant no UV-resistance yes seawater resistant yes With protective cover yes Installation, electrical engineering expertise yes Only for indoor use no Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces - Material and colour
Material housing silicone Colour of printed circuit board white - Other specifications
Compatible with Casambi no Type of luminaire tape Bendable yes Model tape Mounting method surface-/recessed-mounted Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Self-adhesive no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Storage temperature range [°C] -30 - 80 - Electrical specifications
Power [W/m] 10 Mains light source (MLS) or non-mains light source (NMLS) NMLS Energy consumption during operation [kWh/1000 h] 50 Lamp power [W] 50 Lamp power per meter [W] 10 Connected Light Source (CLS) no Rated current per meter [A] 0,42 Max. current handling (at 5 m length) [A] 2 Voltage type DC Lamp holder without Type of wiring Suitable for through wiring Wire cross section free, stripped wire ends Cable conductor quantity 2 Exchangeable LED driver no Dimmable yes Suitable for dimmer yes Type of dimming PWM LED driver LED operating device voltage-controlled Nominal voltage [V] 24 Lamp type exchangeable no Number of poles 2 Conductor cross section [mm²] 0,32 Connecting cable (on both sides) [cm] 30
