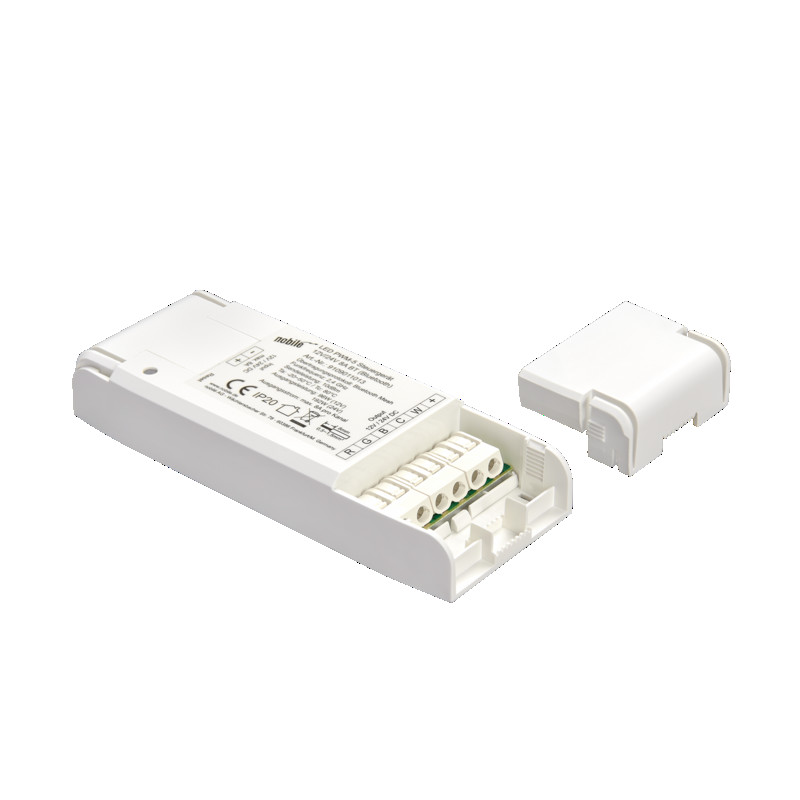

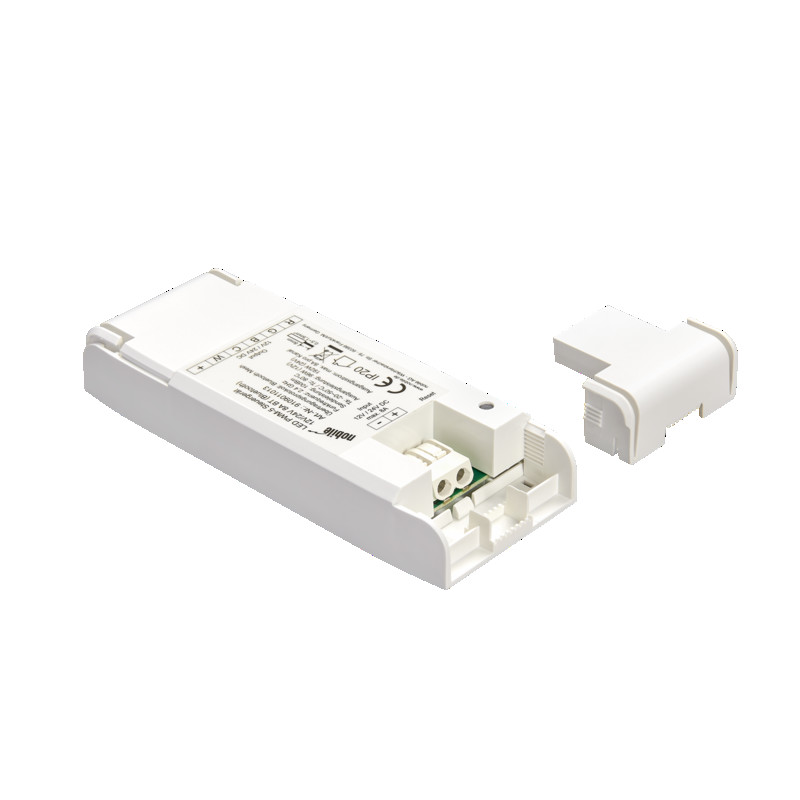

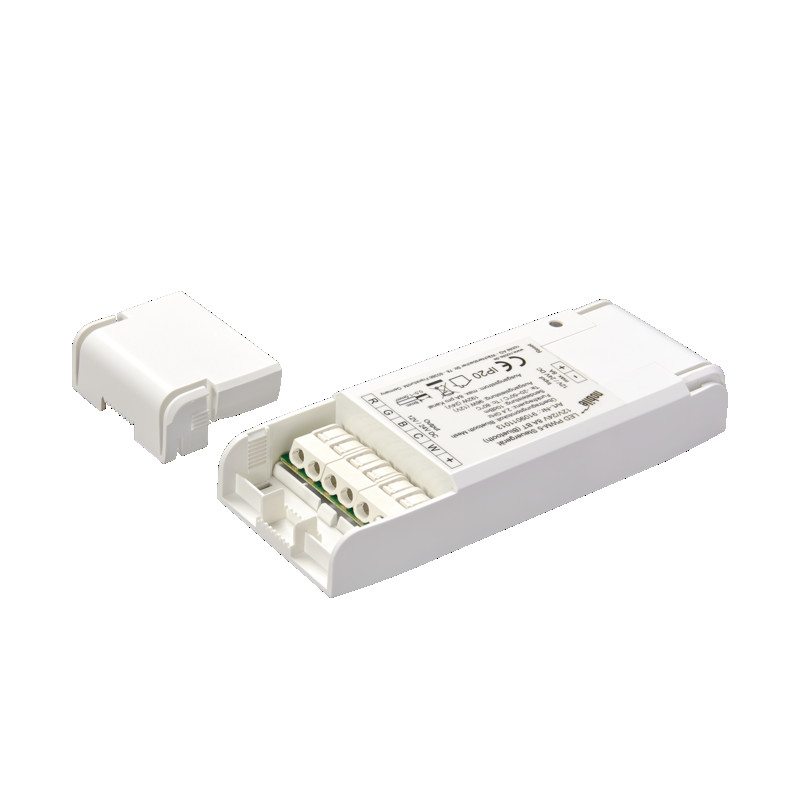

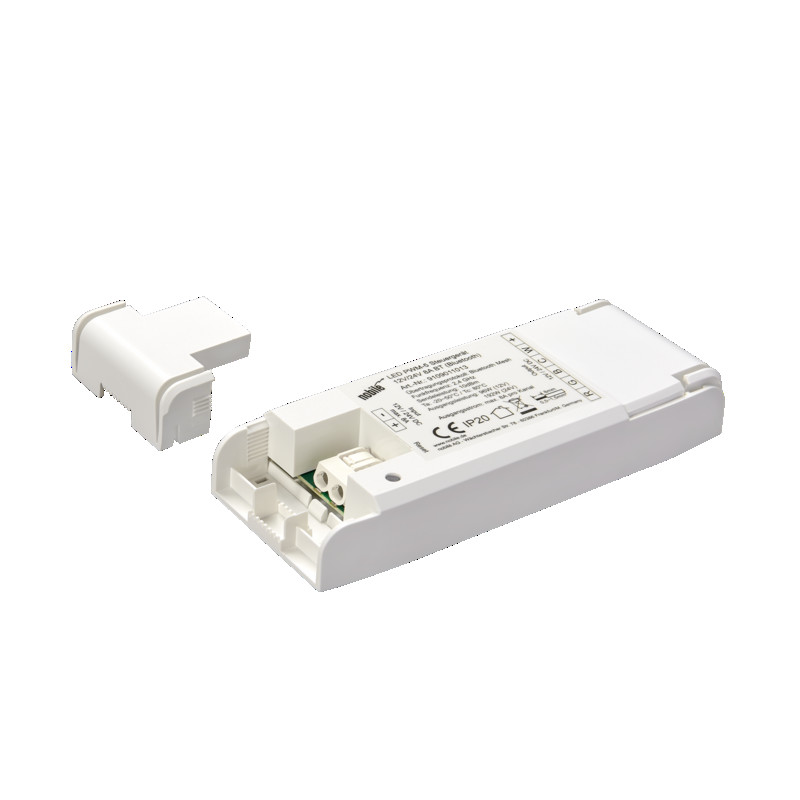

LED PWM-5 Controller 12V/24V 8A BT

Smartmatic 2.0 PWM controller

SKU: 9109011013
EAN: 4044538074078

12V/24V

Max. 8A

Five channel device for Linear Lighting

Dimensions (LxWxH): 115x45x18 mm

weniger lesen

	Montageanleitung
	Produktdatenblatt
	Ausschreibungstext nobilé
	Ausschreibungstext neutral

Protection specifications

CE-Conformity	yes
RoHS	yes
EMC Standard	EN 55015; EN 61000-3-2; EN 61000-3-3; EN 61547
RED Standard	ETSI EN 300 328 V2.1.1; ETSI EN 301 489-1 V2.1.1; ETSI EN 301 489-17 V3.1.1; EN 61058-1; EN 61058-1-2
Protection class	III
Degree of protection	IP20
Installation, electrical engineering expertise	yes
Only for indoor use	yes
Furniture installation, fire protection 'MM'	yes

Temperature specifications

Ambient temperature [Ta [°C]	-20 - 50
Case temperature [Tc] [°C]	80

Material and colour

Material housing	synthetic material
Colour housing	white

Dimensions and weight

Other specifications

Kind of disposal at the end of the life time	specific collection points, please consider the local regulations
APP	Smartmatic 2.0

Electrical specifications

Radio frequency [GHz]	2,4
Output voltage [DC] [V]	12 - 24
Input voltage [DC] [V]	12 - 24
Output current [DC] [mA]	8000
Quantity of channels [secondary]	5
Input current [A]	8
Control system	Smartmatic
Frequency band	2.4GHz
Output power (at 24V DC) max. [W]	192
Output power (at 12V DC) max. [W]	96
Output current [per channel and maximum] [A]	8
Transmission protocol	Bluetooth (Mesh)
Transmission power [dBm]	10
Supported operating systems (OS)	Android/iOS
Radio range outdoors [m]	10
