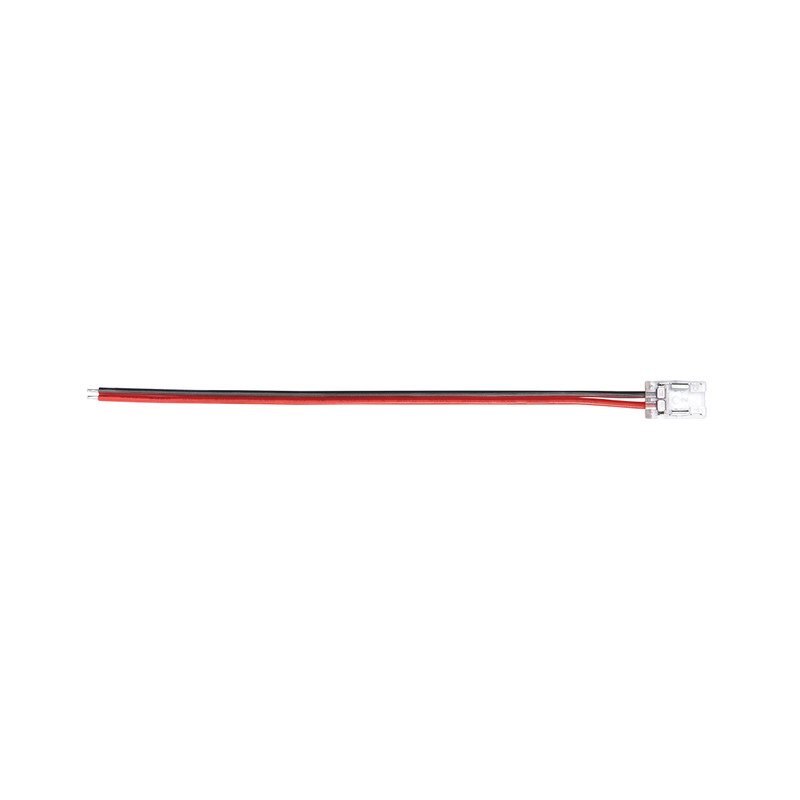

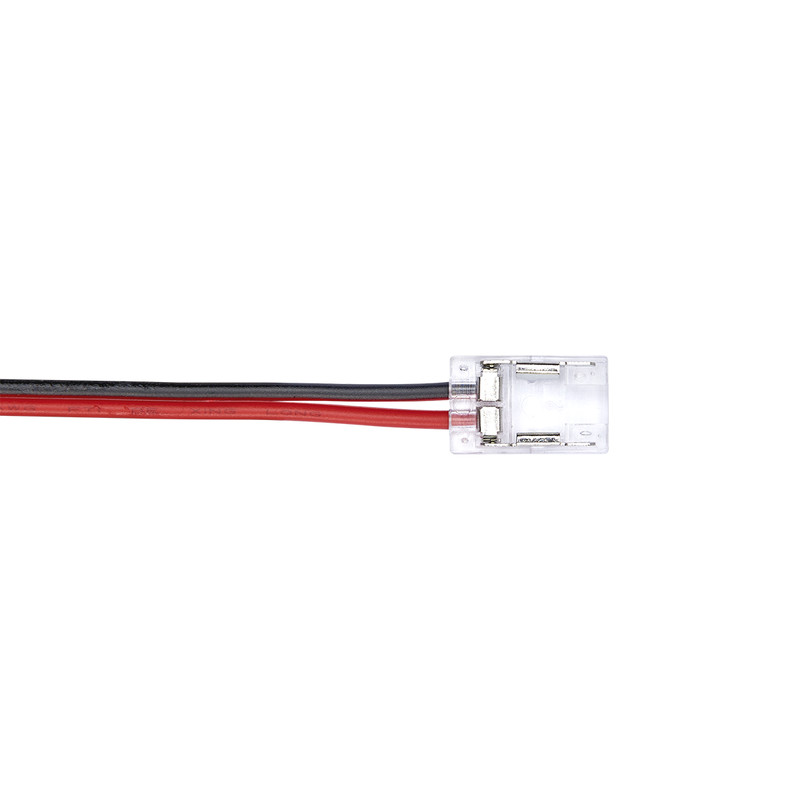

Flexible LED COB Connecting cable 8/2 5-Set
Connecting cable
_DE-EN.pdf)
SKU:
5011520015
EAN: 4044538074375
EAN: 4044538074375
The connecting cable is needed to spit in shortened partial lengths of the LED stripes again.
weniger lesen
Technical Data
-
Other specifications
Type of accessory/spare part connecting cable Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Dimensions and weight

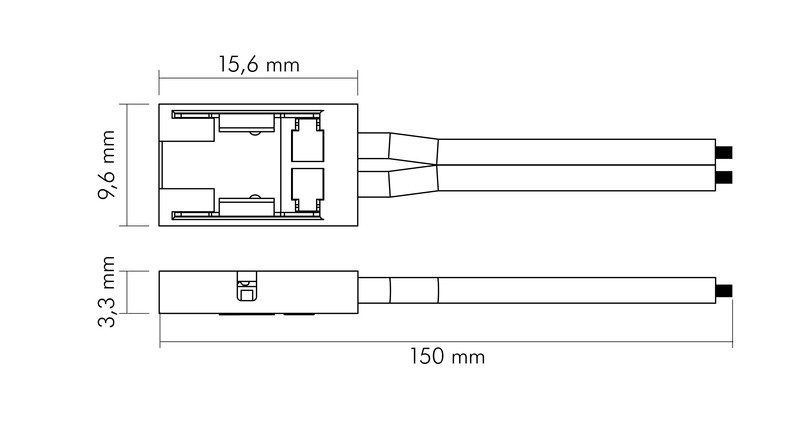

Length [mm] 150 Width [mm] 9,6 Height [mm] 3,3 Weight [g] 14 For tapes up to a width of [mm] 8 - Product contents
Accessory yes Spare part no - Material and colour
Material Copper/PVC/PC Colour transparent/multi-coloured - Protection specifications
CE-Conformity yes RoHS yes Degree of protection IP20 Only for indoor use yes - Electrical specifications
Cable conductor quantity 2 Rated voltage (DC) [V] 24 Cable cross-section [mm²] 0,54 Current carrying capacity max. [A] 3,5
