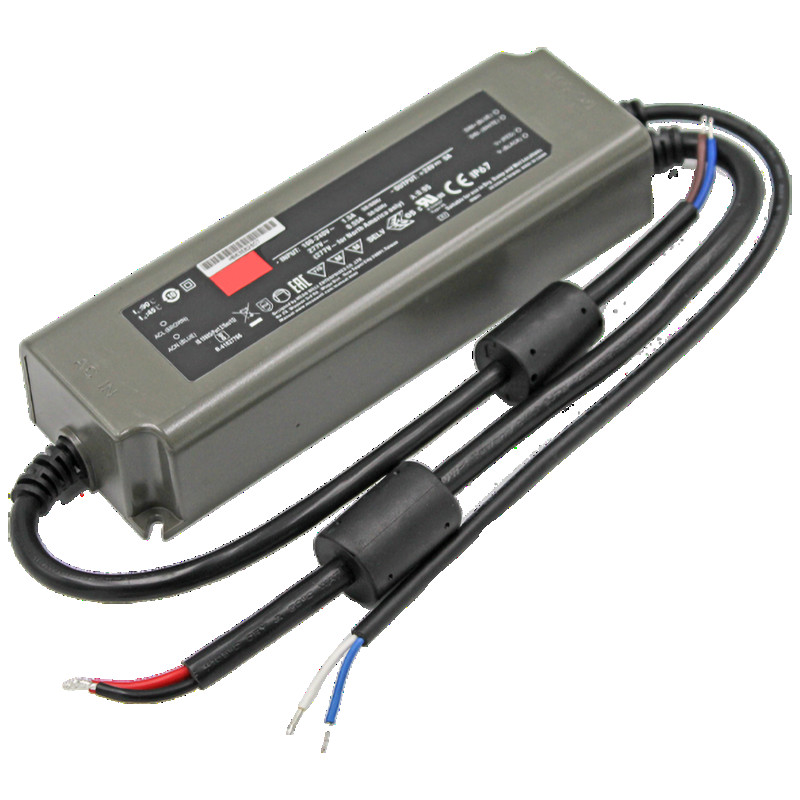

EL-120-24V IP67 dim 1-10V PWM
LED Driver with 24V constant voltage
_DE-EN.pdf)
SKU:
8970501224
EAN: 4044538052441
EAN: 4044538052441
LED driver for indoor and outdoor use.
Connection type primary side: connecting cable 2x1,0 mm²
Connection type secondary side: connecting cable 2x1,0 mm²
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] -40 - 70 Case temperature [Tc] [°C] 90 - Protection specifications
CE-Conformity yes RoHS yes SELV yes Protection class II Degree of protection IP67 Safety transformer yes Short-circuit protected yes Protection against short-circuit yes Temperature protection shutdown at [°C] 110 ENEC-Test mark ENEC 05 CB certificate yes RU certificate yes Installation, electrical engineering expertise yes Furniture installation, fire protection 'MM' yes * F-Test mark yes - Dimensions and weight

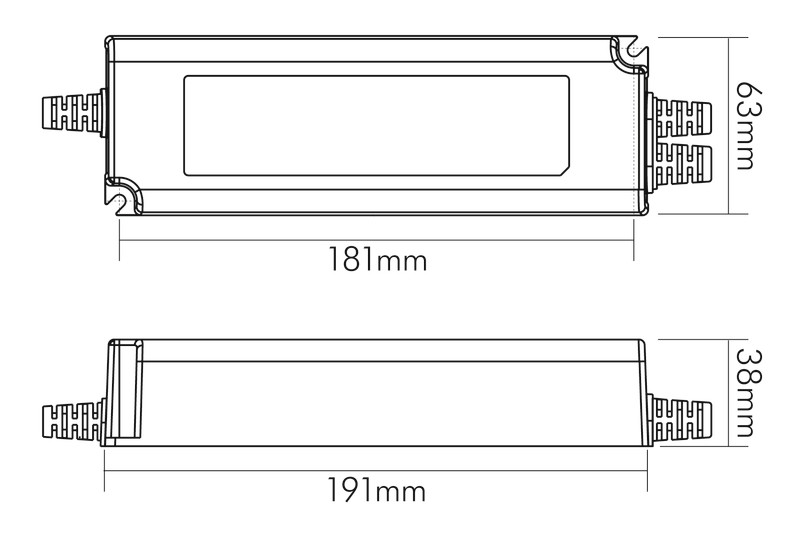

Length [mm] 191 Width [mm] 63 Height [mm] 38 Weight [g] 970 - Material and colour
Material synthetic material Colour black - Other specifications
Model static Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Independant installation yes Application for LED luminaire/LED modules only - Technical lighting specifications
Constant light output (CLO) no - Electrical specifications
Cable length primary [mm] 300 Cable length secondary [mm] 300 Pipe length Dimming interface [mm] 300 Conductor cross section primary [mm²] 0,75 Conductor cross section secondary [mm²] 2 Conductor cross section dimming interface [mm²] 0,75 Power [W] 0 - 120 Output frequency [Hz] 300 Input frequency [Hz] 47 - 63 Power factor [at full load] 0,96 Sink current (dimming) [mA] 0,2 Connection type primary free, stripped cable ends Connection type secondary free, stripped cable ends Connection dimmer interface free, stripped wire ends Dimmable yes Type of dimming 1-10V, PWM (10V) Suitable for DC voltage (primary side) yes Suitable for constant voltage yes Suitable for constant current no Built-in active Power-Factor-Correction yes Input voltage [AC] [V] 90 - 305 Output voltage [DC] [V] 24 Input voltage [DC] [V] 127 - 431 Efficiency/Power factor at full load [%] 90 Suitable for outdoor use yes
