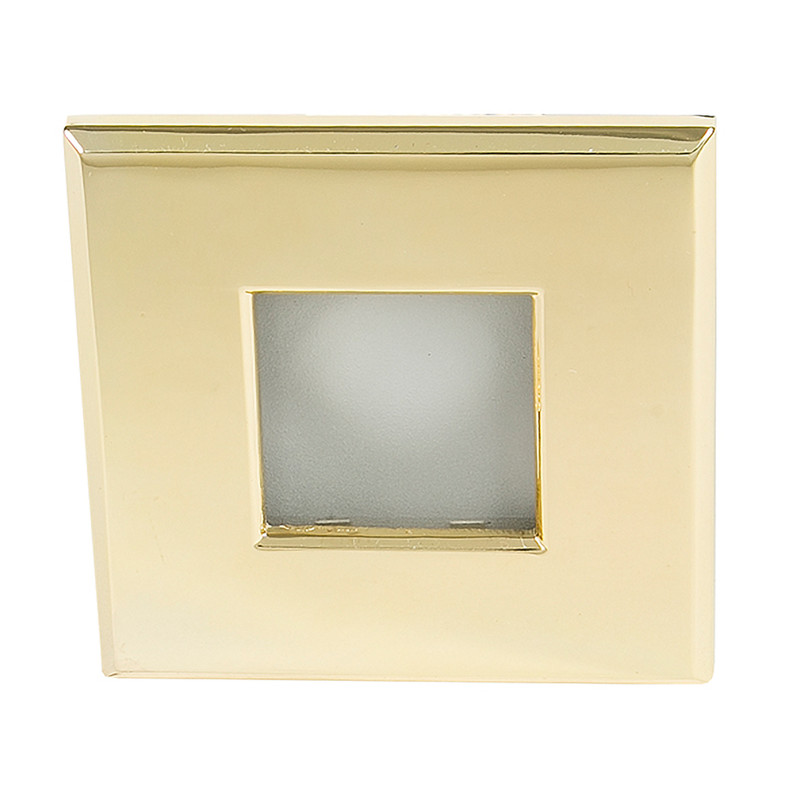

WT 50 Q gold
EAN: 4044538028651
For use in showers, bathrooms, carports and other humid areas. The backwards placed lamp ensures a glare-free illumination.
The WT 50 series can also be equipped with:
COB LED Module for N 5800
Material: die-cast aluminium
Surface: powder-coated, galvanized or painted
Front glass: satined tempered glass, 3 mm
Cover: removable
Washer: ageing resistant silicone
F-sign for lamps up to 35W only or LED light sources
Die Leuchte kann mit folgenden Leuchtmittel ausgerüstet werden:
COB LED Modul für N 5800
In Verbindung mit einem LED Leuchtmittel kann auch der Hochvolt-Kit GU10 eingesetzt werden.
Material: Aluminiumdruckguss; Oberfläche: pulverbeschichtet, galvanisiert oder lackiert
Abschlussglas: satiniert, thermisch gehärtet, 3 mm stark
Front: abnehmbar; Dichtungen: Silikon
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes Degree of protection IP65 front-facing Impact strength IK00 Installation, electrical engineering expertise yes Distance to objects [m] 0,5 Only for indoor use no Furniture installation, fire protection 'MM' only applicable with LED light source * F-Test mark only applicable for lamp up to 35W or LED light source Installation in insulated ceilings, fire protection 'F with roof' no Installation into any material with normal flammability not applicable with a halogen lamp Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta] [°C] 0 - 25 - Product contents
With light source no Including LED driver no - Dimensions and weight
Length [mm] 86 Width [mm] 86 Height [mm] 146 Weight [g] 140 Ceiling cut-out [diameter] [mm] 70 Built-in depth [mm] 140 - Material and colour
Front glass satined, tempered glass, 3mm Material die-cast aluminium Colour gold Surface finishing galvanized - Other specifications
Type of luminaire recessed luminaire Mounting method recessed-mounted Suitable for general lighting no Suitable for recessed wall installation no Suitable for wall mounting no Suitable for light line configuration no Operation by Bluetooth no Reflector without Gasket silicone Characteristics front removable Adjustable version no - Electrical specifications
Lamp power [W] 50 Lamp holder without Exchangeable LED driver yes Through-wiring possible no Max. lamp wattage [W] 50 Electrical connection with connector system no - Technical lighting specifications
Fit for monitor workplace acc. EN 12464-1 no Light distributor Diffuser Colour controllable (RGB) no Light outlet direct Lamp type other Suitable for number of lamps 1
