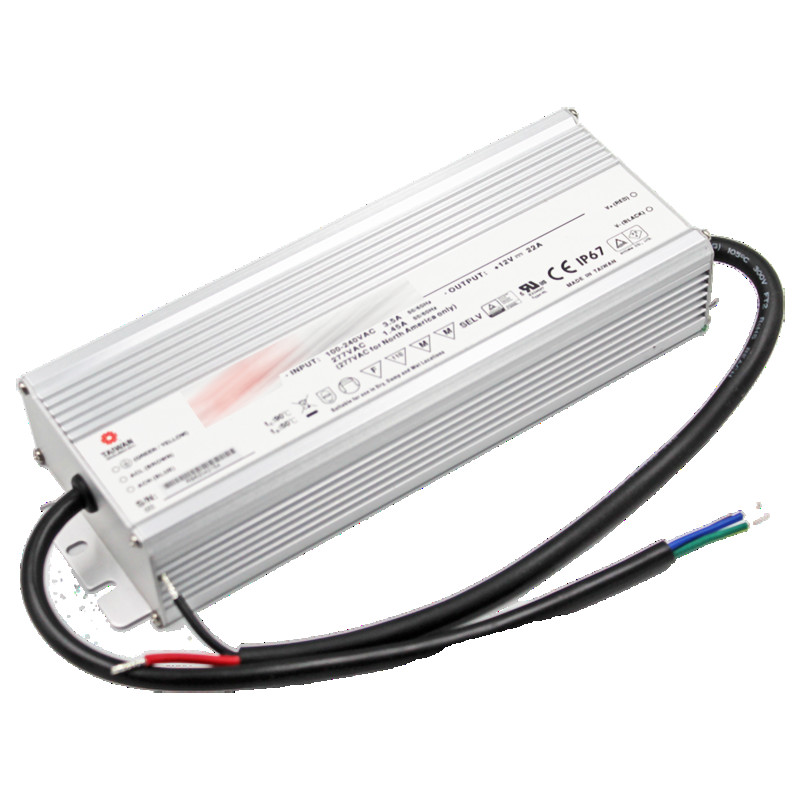

EL-260-12V IP67
LED Driver with 12V constant voltage
SKU:
8970502612
EAN: 4044538044316
EAN: 4044538044316
LED driver for indoor and outdoor use.
Connection type primary side: connecting cable 3x1.0 mm²
Connection type secondary side: connecting cable 2x1.0 mm²
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes SELV yes Protection class I Degree of protection IP67 Safety transformer yes Short-circuit protected yes Protection against short-circuit yes Temperature protection shutdown at [°C] 110 CB certificate yes RU certificate yes Installation, electrical engineering expertise yes Only for indoor use no Furniture installation, fire protection 'MM' yes * F-Test mark yes - Temperature specifications
Ambient temperature [Ta [°C] -40 - 50 Case temperature [Tc] [°C] 90 - Dimensions and weight

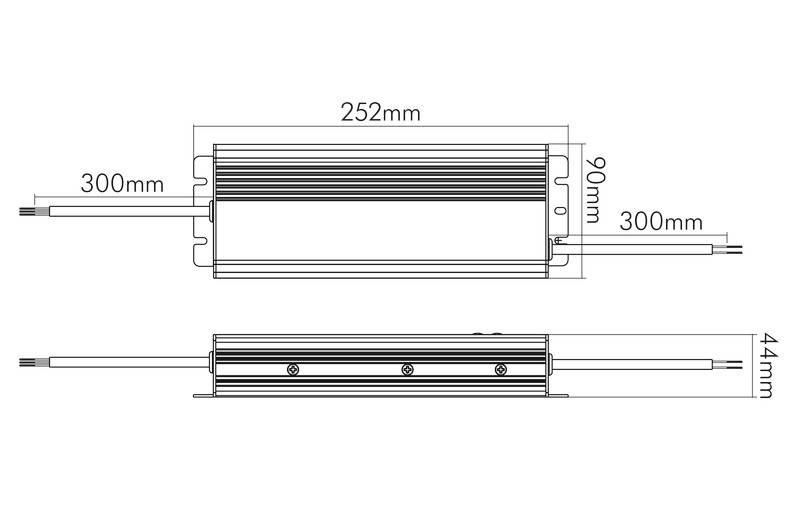

Length [mm] 252 Width [mm] 90 Height [mm] 44 Weight [g] 1880 - Material and colour
Material metal Colour silver - Other specifications
Model static Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Independant installation yes Application for LED luminaire/LED modules only - Technical lighting specifications
Constant light output (CLO) no - Electrical specifications
Cable length primary [mm] 300 Cable length secondary [mm] 300 Conductor cross section primary [mm²] 1 Conductor cross section secondary [mm²] 2,5 Power [W] 0 - 264 Input frequency [Hz] 47 - 63 Power factor [at full load] 0,95 Inrush current Cold start 70A (twidh=1010μs at 50%Ipeak) at 230VAC Connection type primary free, stripped cable ends Cable conductor quantity primary 3 Connection type secondary free, stripped cable ends Dimmable no Suitable for DC voltage (primary side) yes Suitable for constant voltage yes Suitable for constant current no Built-in active Power-Factor-Correction yes Input voltage [AC] [V] 90 - 305 Output voltage [DC] [V] 12 Input voltage [DC] [V] 127 - 431 Output current [DC] [mA] 22 Input current [at 230V AC] [A] 1,65 Max. number of 16A circuit breaker 1 pcs on B- circuit breaker, 2 pcs on C- circuit breaker at 230VAC Efficiency/Power factor at full load [%] 91 Suitable for outdoor use yes
