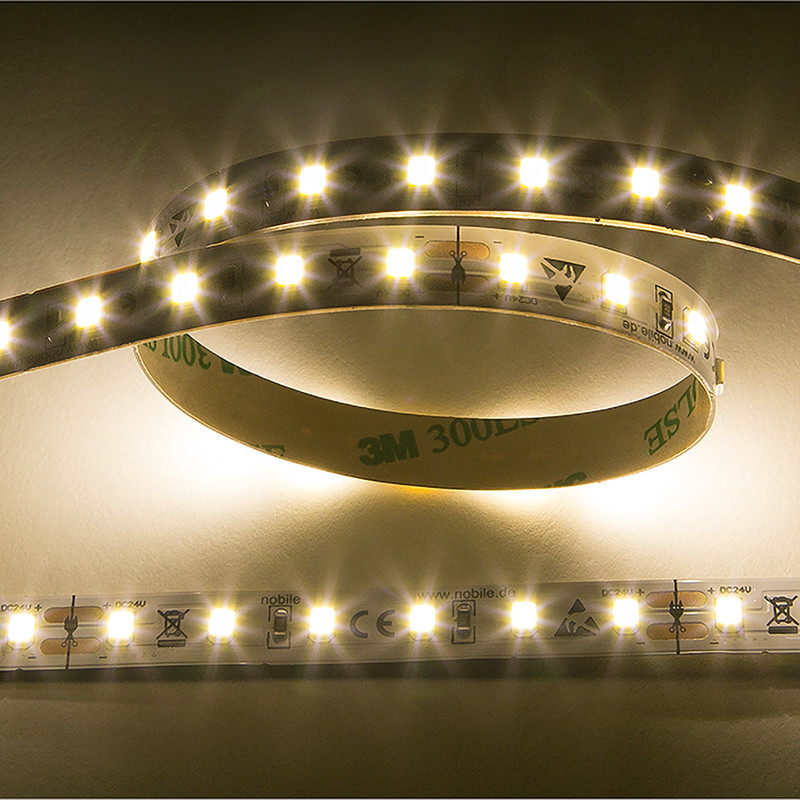

Flexible LED SMD 2835 2m neutralweiß 15W/m 24V
Flexibles LED Band mit SMD 2835
SKU:
5010900212
EAN: 4044538054308
EAN: 4044538054308
Hochflexibles LED Band mit selbstklebender Rückseite für eine einfache und schnelle Fixierung, mit 30 cm Anschlussleitung (beidseitig); kürzbar alle 72 mm (6 LEDs).
Die maximale Anschlussleistung darf 75W (entspricht einer Länge von 5 m) nicht überschreiten.
Es ist für eine ausreichende Kühlung der Flexible LED zu sorgen. Die Montage auf gut wärmeleitenden Materialien, wie z. B. das Alu-Profil, ist notwendig.
Abmessungen (BxH): 10x1,2 mm
Anzahl LED: 84/m
Farbwiedergabeindex Ra: 82
Farbabstand (MacAdam): 3 SDCM
Lebensdauer: 26.000 h (L90 B10)
Betriebsgerätempfehlung: EL-24V CV Serie sowie LED PWM-5 Steuergerät 12V/24V 8A BT
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] -20 - 50 - Product contents
Including LED driver no With connection set no With end piece no Incl. end cap no - Technical lighting specifications
Non-directional (NDLS) or directional [DLS] DLS Colour temperature [K] 4000 Colour of light neutral white LED efficiency [lm/W] 100 Total luminous flux per coil [lm] 3000 Total luminous flux per meter [lm] 1500 Useful luminous flux (Φuse) per meter [lm] 1500 Useful luminous flux [Φuse] per coil [lm] 3000 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 82 Colour rendering index R9 12 Peak luminous intensity [cd] 255 L70B50 - life time at 25°C [h] 30000 L90B10 - life time at 25 °C [h] 26000 Colour-tuneable light source no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no Number of LEDs per meter 84 Number of LEDs per segment 6 Lamp type SMD-LED - Dimensions and weight
Length [mm] 2000 Length of particular segments [mm] 72 Width [mm] 10 Height [mm] 1,2 Weight [g] 69 - Protection specifications
CE-Conformity yes RoHS yes EMC Standard EN 61547:2009; EN 55015:2013+A1:2015; EN 6100-3-2:2014; EN 6100-3-3:2013 LVD Standard EN 60598-2-20:2015; EN 60598-1:2015 Protection class III Degree of protection IP20 With protective cover no Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Lowest bending radius [mm] 30 Note mounting on heat-conductive material is necessary - Material and colour
Colour of printed circuit board white Material PVC/copper - Other specifications
Model tape Bendable yes Mounting method surface-/recessed-mounted Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Self-adhesive yes Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Electrical specifications
Lamp power [W] 30 Lamp power per meter [W] 15 Rated current per meter [A] 0,6 Max. current handling (at 5 m length) [A] 3,1 Voltage type DC Lamp holder without Type of wiring Suitable for through wiring Wire cross section 30 cm connecting cable on both sides Exchangeable LED driver no Dimmable yes Suitable for dimmer yes Type of dimming PWM LED driver LED operating device voltage-controlled Nominal voltage [V] 24 Lamp type exchangeable no Number of poles 2 Conductor cross section [mm²] 0,32
