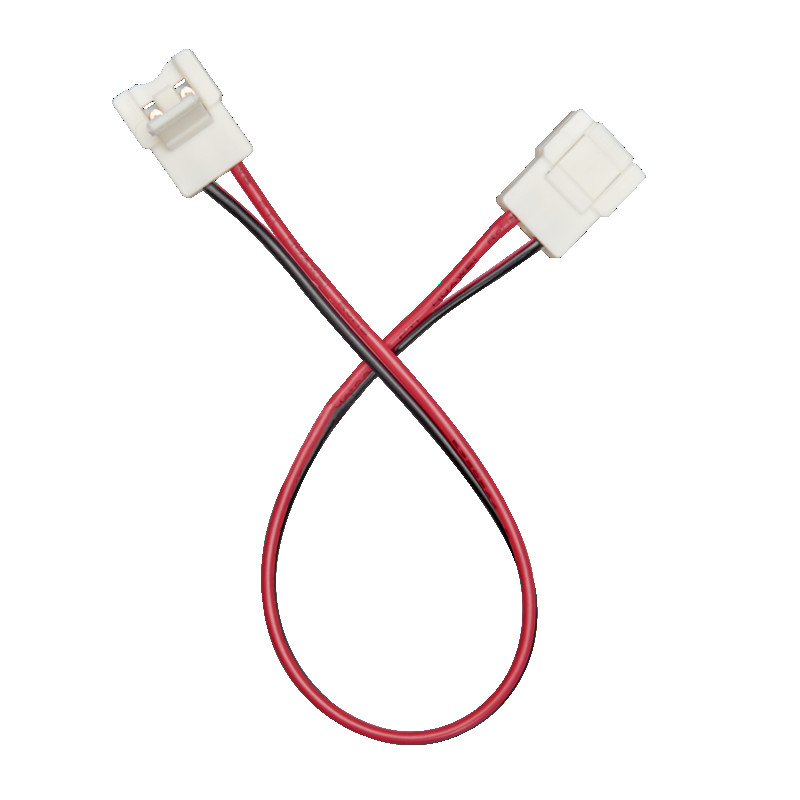

Flexible LED Connector flexible 10/2 5-Set
Connector flexible
_IP20_IP67_DE-EN.pdf)
SKU:
5011510085
EAN: 4044538042244
EAN: 4044538042244
The protection class IP67 is only guaranteed with qualified installation. This means that the accessories must be injected with silicone gel.
Material: Copper/plastic
weniger lesen
Technical Data
-
Other specifications
Type of accessory/spare part connector Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Dimensions and weight

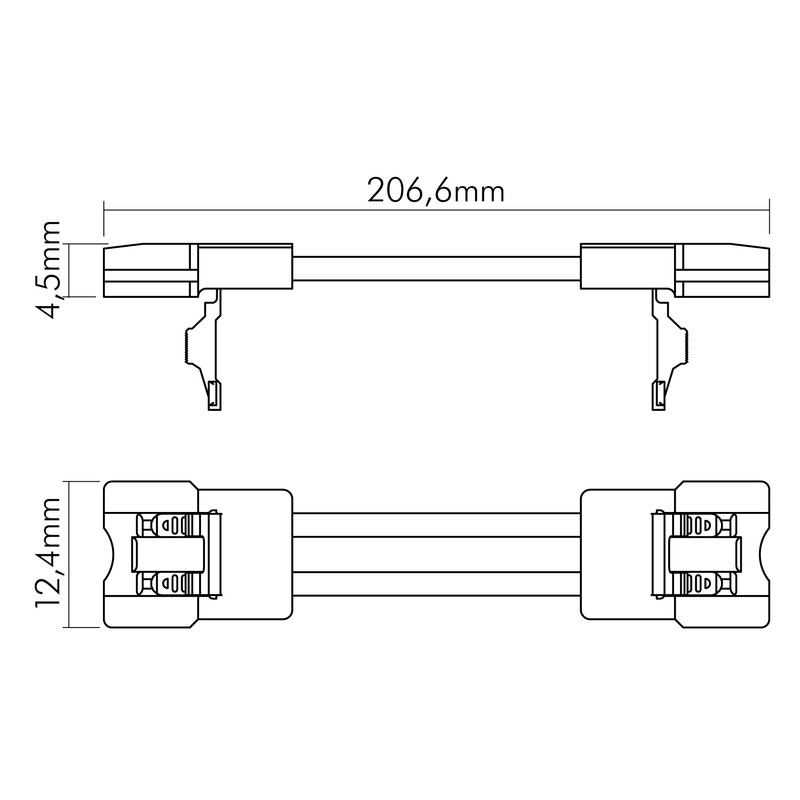

Length [mm] 220 Width [mm] 12,7 Height [mm] 4,8 Weight [g] 4,5 Weight (set) [g] 22,5 For tapes up to a width of [mm] 10 - Product contents
Accessory yes Spare part no - Material and colour
Material copper/plastic - Protection specifications
CE-Conformity yes RoHS yes Degree of protection IP20 Only for indoor use yes - Electrical specifications
Cable cross-section [mm²] 0,5 Current carrying capacity max. [A] 3
