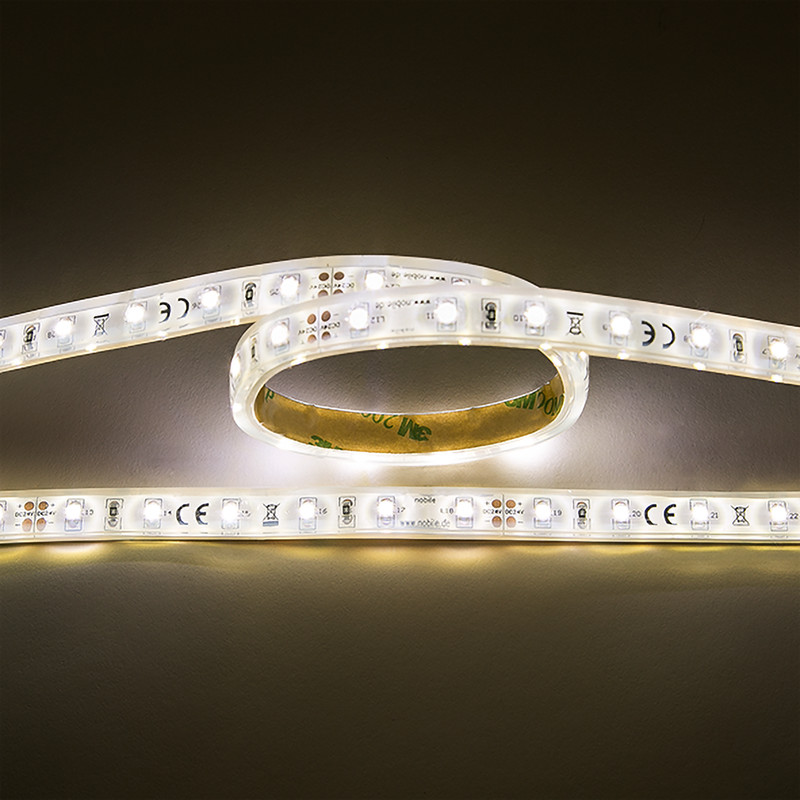

Flexible LED SMD 3528 2m 4.8W/m neutral white 24V
Flexible LED Tape with SMD 3528
SKU:
5011130211
EAN: 4044538048659
EAN: 4044538048659
Highly flexible LED tape with self-adhesive reverse side for easy and quick fixing with ca. 27 cm connecting cable on both sides; reducible in 100 mm sections (6 LEDs).
Maximum connected load of 48W (this equates to 10 m) may not be exceeded.
Dimensions (WxH): 10.8x5.5 mm
Number of LEDs: 60/m
Colour rendering index Ra: 82
Colour distance (MacAdam): 5 SDCM
RateLife time: 26.000 h (L90 B10)
Recommendation LED driver: EL-24V CV series and LED PWM-5 Controller 12V/24V 8A BT
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] -20 - 50 - Technical lighting specifications
Non-directional (NDLS) or directional [DLS] DLS Colour temperature [K] 4000 Colour of light neutral white Total luminous flux per coil [lm] 880 Total luminous flux per meter [lm] 420 Useful luminous flux (Φuse) per meter [lm] 370 Useful luminous flux [Φuse] per coil [lm] 740 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 5 Colour rendering index Ra 82 Colour rendering index R9 26 Peak luminous intensity [cd] 57 L80B10 - life time at 25 °C [h] 30000 L90B10 - life time at 25 °C [h] 26000 Colour-tuneable light source no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no Number of LEDs per meter 60 Number of LEDs per segment 6 Lamp type SMD-LED - Product contents
Including LED driver no With connection set no With end piece no Incl. end cap no - Dimensions and weight
Length [mm] 2000 Length of particular segments [mm] 100 Width [mm] 10,8 Height [mm] 5,5 Weight [g] 175 - Protection specifications
CE-Conformity yes RoHS yes EMC Standard EN 61547:2009; EN 55015:2013+A1:2015; EN 6100-3-2:2014; EN 6100-3-3:2013 LVD Standard EN 60598-2-20:2015; EN 60598-1:2015 Protection class III Degree of protection IP67 With protective cover yes Installation, electrical engineering expertise yes Only for indoor use no Furniture installation, fire protection 'MM' yes Lowest bending radius [mm] 30 - Material and colour
Colour of printed circuit board white Material PVC transparent/copper - Other specifications
Model tape Bendable yes Mounting method surface-/recessed-mounted Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Self-adhesive yes Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Electrical specifications
Lamp power [W] 9,6 Lamp power per meter [W] 4,8 Rated current per meter [A] 0,2 Max. current handling (at 10 m length) [A] 2 Voltage type DC Lamp holder without Type of wiring Suitable for through wiring Wire cross section 30 cm connecting cable on both sides Exchangeable LED driver no Dimmable yes Suitable for dimmer yes Type of dimming PWM LED driver LED operating device voltage-controlled Nominal voltage [V] 24 Lamp type exchangeable no Number of poles 2 Conductor cross section [mm²] 0,32
