EL-9R-24V
LED Driver with 24V constant voltage
SKU:
8996150000
EAN: 4044538037103
EAN: 4044538037103

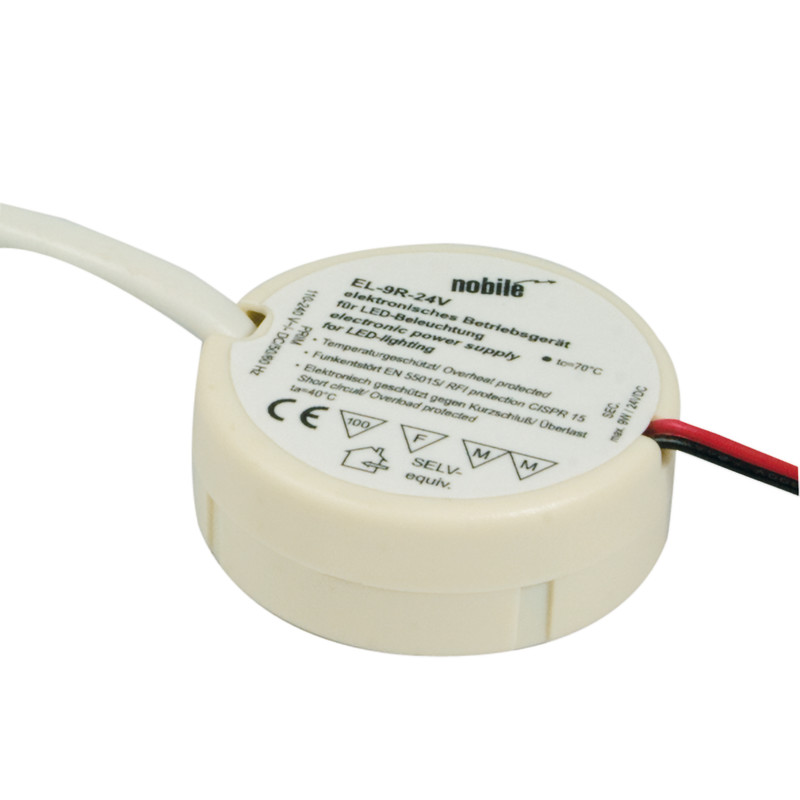

Round LED driver to be built into fittings, furniture etc.
Type of connection primary: connecting cable 2x0.75 mm²
Type of connection secondar: RST-AMP plug (female)
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes SELV yes Protection class II Degree of protection IP20 Safety transformer yes Short-circuit protected yes Protection against short-circuit yes Temperature protection shutdown at [°C] 100 Filament test according to IEC 60695-2-10 [°] 850 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes * F-Test mark yes Reinforced insulation yes - Temperature specifications
Ambient temperature [Ta [°C] -20 - 50 Case temperature [Tc] [°C] 70 - Dimensions and weight

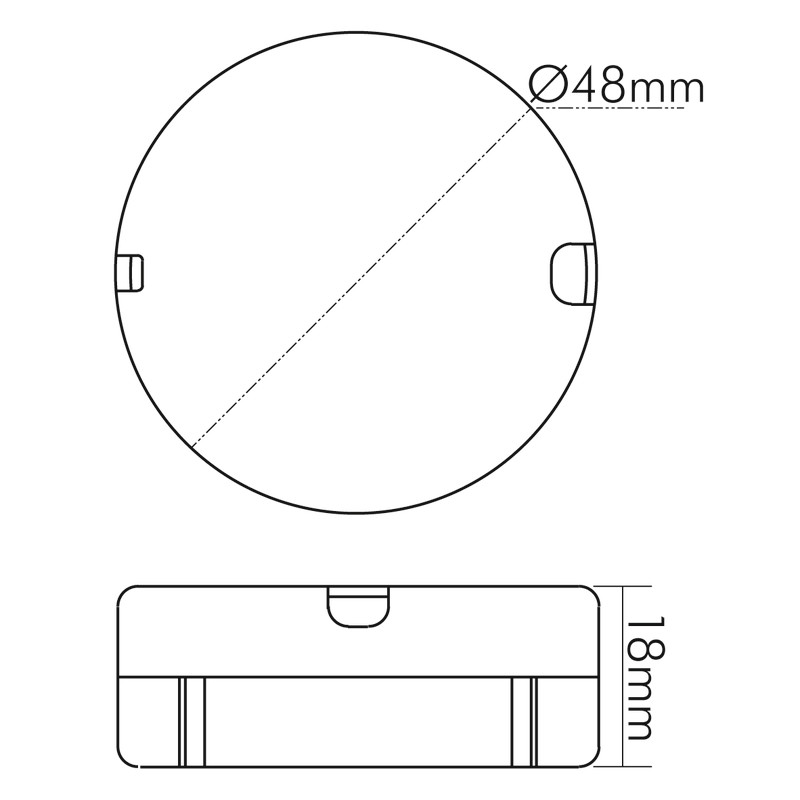

Diameter [mm] 48 Height [mm] 18 Weight [g] 45 Ceiling cut-out [mm] 51 - Material and colour
Material polycarbonate Colour white - Other specifications
Model static Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Application for LED luminaire/LED modules only - Technical lighting specifications
Constant light output (CLO) no - Electrical specifications
Cable length primary [mm] 150 Cable length secondary [mm] 150 Conductor cross section primary [mm²] 0,75 - 75 Conductor cross section secondary [mm²] 0,25 Power [W] 0 - 9 Input frequency [Hz] 50 - 60 Connection type primary free, stripped cable ends Connection type secondary RST-AMP plug (female) Dimmable no Suitable for DC voltage (primary side) no Suitable for constant voltage yes Suitable for constant current no Input voltage [AC] [V] 110 - 240 Output voltage [DC] [V] 24 Output current [DC] [mA] 375 Suitable for outdoor use no
