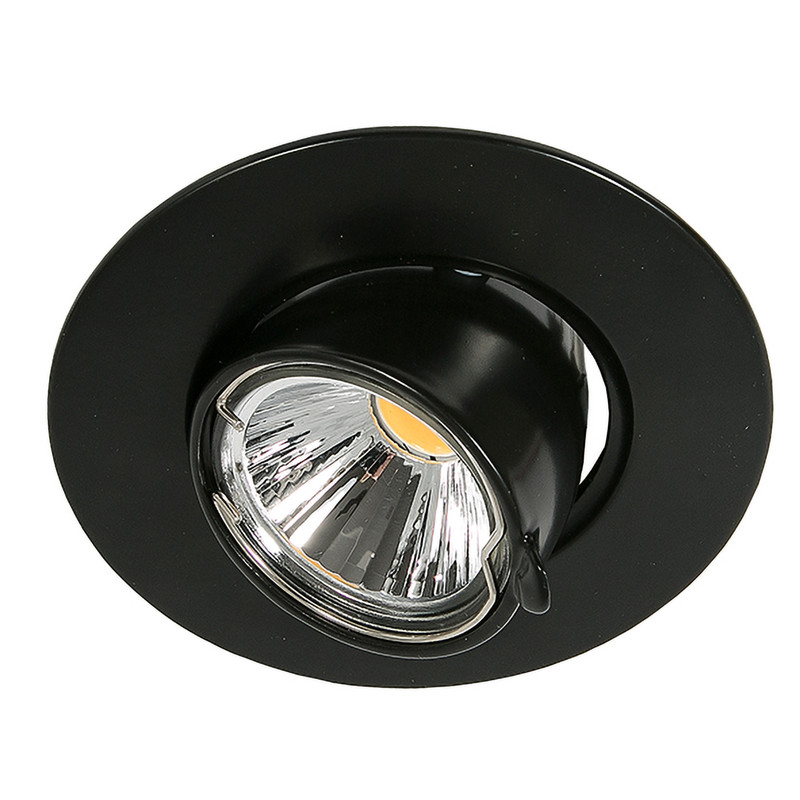

N 5800 black
Recessed Downlight, rotatable and adjustable
SKU:
1858001800
EAN: 4044538004792
EAN: 4044538004792
Rotatable and adjustable for use in general and accent lighting.
The luminaire can also be equipped with:
COB LED Module for N 5800
Material: die-cast aluminium
Surface: painted or galvanized
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Degree of protection IP20 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Distance to objects [m] 0,5 Only for indoor use yes Furniture installation, fire protection 'MM' only applicable with LED light source Installation in insulated ceilings, fire protection 'F with roof' no Installation into any material with normal flammability not applicable with a halogen lamp Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Product contents
With light source no Including LED driver no - Dimensions and weight
Diameter [mm] 110 Height [mm] 70 Weight [g] 380 Ceiling cut-out [diameter] [mm] 97 Built-in depth [mm] 74 - Other specifications
Operation by Bluetooth no Adjustability Rotating and swivelling Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Adjustable [°] 85 Rotatable [°] 355 Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Suitable for lighting accessories no - Technical lighting specifications
Light cone Medium beam 21-40° Beam angle [°] 38 Fit for monitor workplace acc. EN 12464-1 no Light distributor without Colour controllable (RGB) no Light outlet direct Lamp type other Suitable for number of lamps 1 - Material and colour
Material die-cast aluminium Colour black Surface finishing painted - Electrical specifications
Lamp power [W] 50 Lamp holder without Exchangeable LED driver yes With movement sensor no Through-wiring possible no Electrical connection with connector system no
