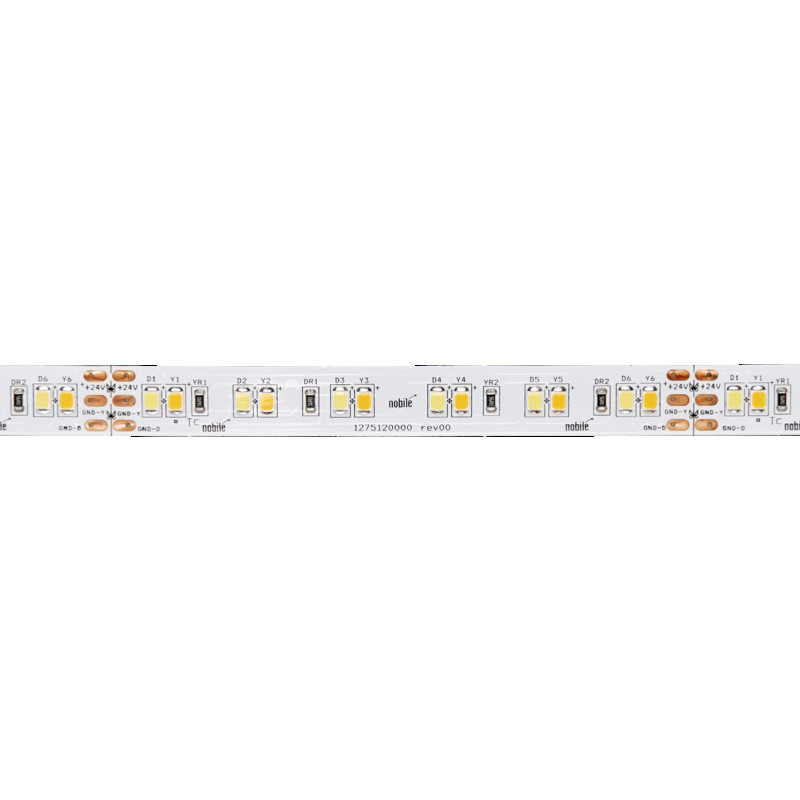

Flexible LED SMD 2835 2m TUN 30W/m 24V

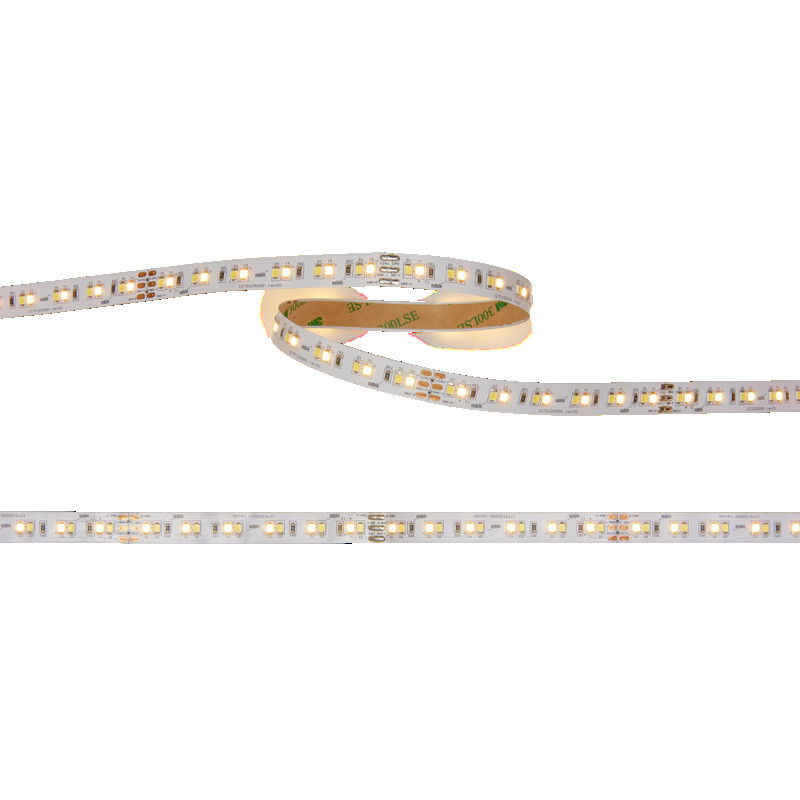

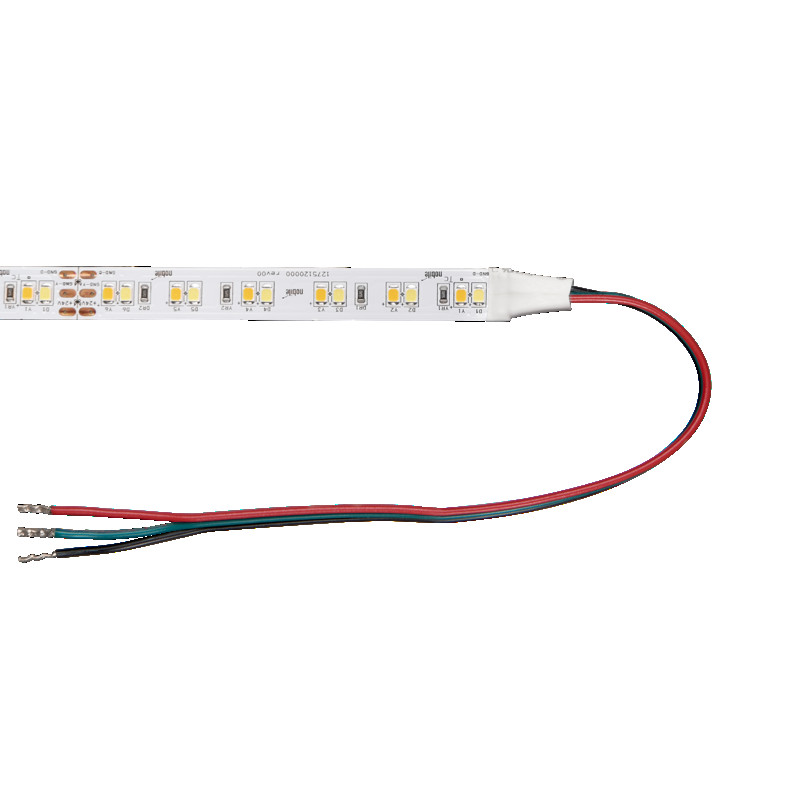

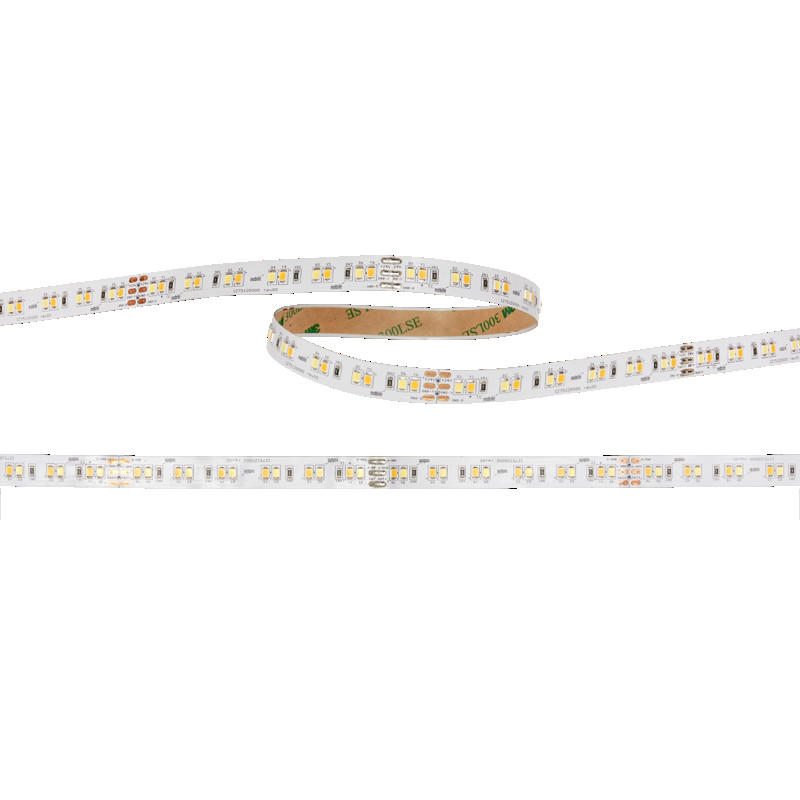

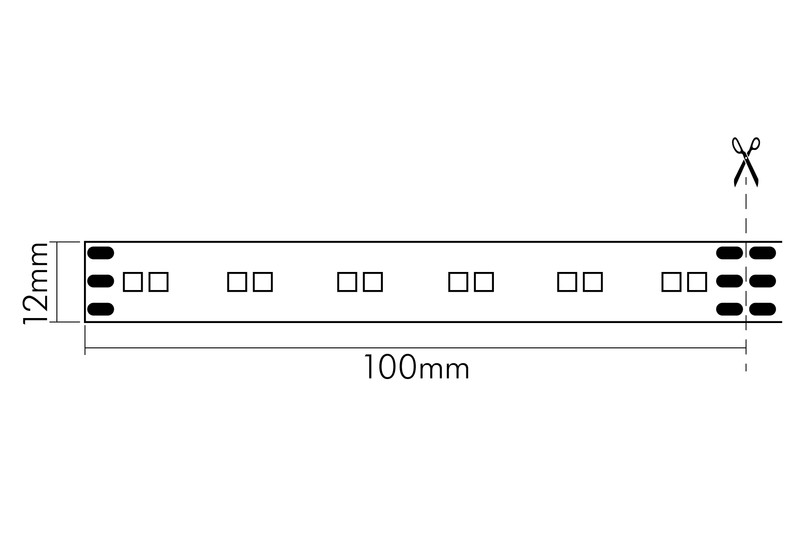

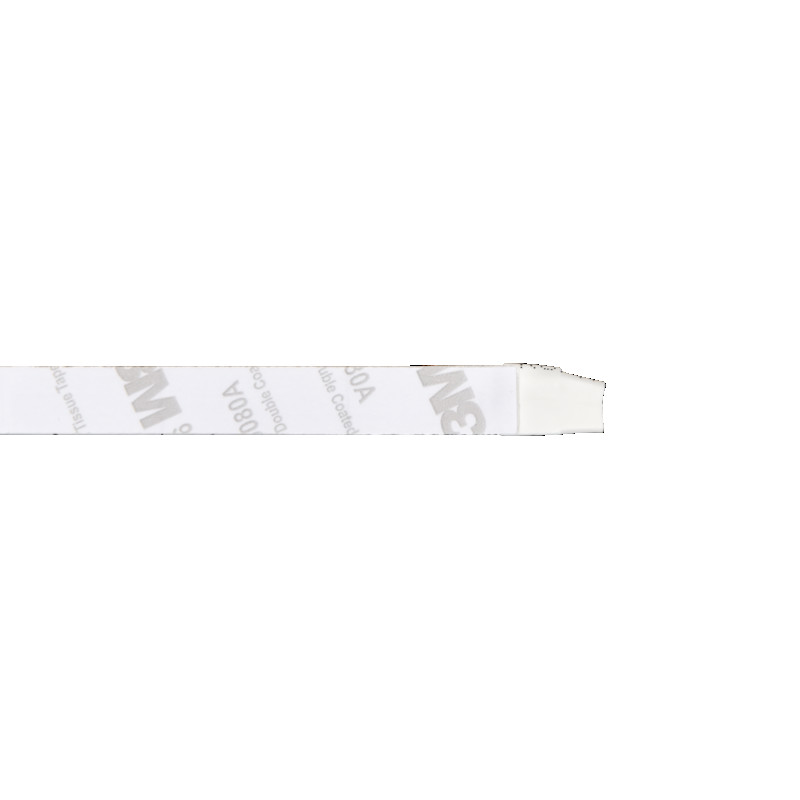

Highly flexible LED tape with self-adhesive reverse side for easy and quick fixing with 30 cm connecting cable on both sides; reducible in 100 mm sections (12 LEDs).
Maximum connected load of 150W (this equates to 5 m) may not be exceeded.
Ensure sufficient cooling of the Flexible LED. It is necessary to mount the Flexible LED on heat-conductive material such as the aluminium profile.
Dimensions (WxH): 12x1.5 mm
Number of LEDs: 120/m
Colour rendering index Ra: 82
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
Bi-colour interface: COM+
Recommendation LED driver and control unit: EL-24V CV series and LED Bi-colour Dimmer or LED PWM-5 Controller 12V/24V 8A BT
Betriebs-/Steuergerätempfehlung: EL-24V CV Serie sowie LED Bi-colour Dimmer
Abmessungen (BxH): 12x2,5 mm; Anzahl LED: 120/m
Farbwiedergabeindex Ra 83; Farbabstand (MacAdam): 4 SDCM
Lebensdauer: 50.000 h (L80 B10)
Bi-colour interface: COM+
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Product contents
Including LED driver no With connection set no With end piece no Incl. end cap no - Technical lighting specifications
Non-directional (NDLS) or directional [DLS] DLS Colour temperature [K] 2700 - 6500 Colour of light halogen-daylight white LED efficiency [lm/W] 111 Total luminous flux per meter [lm] 3600 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 82 Colour rendering index R9 6 L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour-tuneable light source yes Total lumen setting adjustable no Colour temperature adjustable yes Constant light output (CLO) no Light source replaceable no Lamp type SMD-LED - Dimensions and weight
Length [mm] 2000 Length of particular segments [mm] 100 Width [mm] 12 Height [mm] 1,5 Weight [g] 43 - Protection specifications
CE-Conformity yes RoHS yes Protection class III Degree of protection IP20 With protective cover no Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Lowest bending radius [mm] 30 Note mounting on heat-conductive material is necessary - Material and colour
Colour of printed circuit board white Material PVC/copper - Other specifications
Bendable yes Model tape Mounting method surface-/recessed-mounted Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Self-adhesive yes Kind of disposal at the end of the life time specific collection points, please consider the local regulations Characteristics colour temperature can be mixed from 3000 K - 6500 K individually - Electrical specifications
Lamp power [W] 30 Lamp power per meter [W] 30 Rated current per meter [A] 1,25 Max. current handling (at 5 m length) [A] 6,25 Voltage type DC Lamp holder without Type of wiring Suitable for through wiring Wire cross section 30 cm connecting cable on both sides Exchangeable LED driver no Dimmable yes Suitable for dimmer yes Type of dimming PWM LED driver LED operating device voltage-controlled Nominal voltage [V] 24 Bi-colour interface COM+ Lamp type exchangeable no Number of poles 3 Conductor cross section [mm²] 0,2
