Flexible LED Side View 3014 5m 930 9,6W/m 24V
Flexibles LED Band with SMD 3014
SKU:
5022730111
EAN: 4044538073859
EAN: 4044538073859

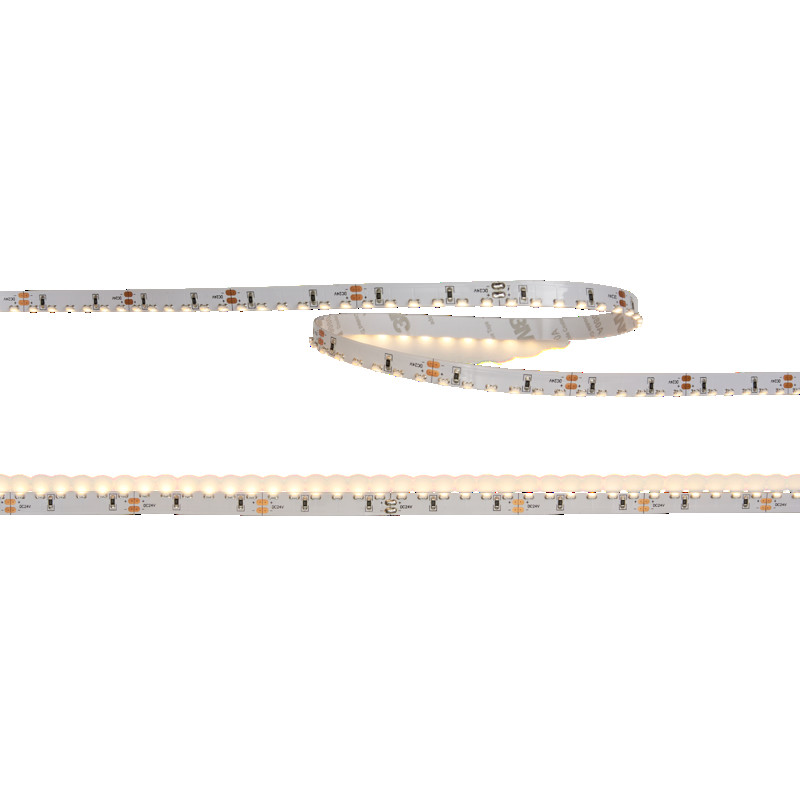

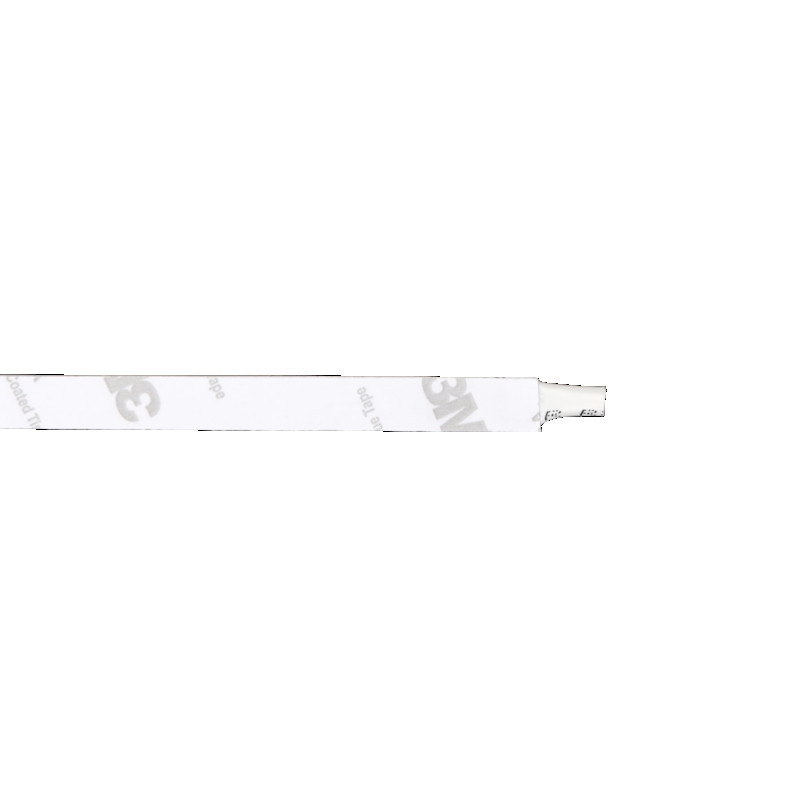

Highly flexible LED tape with self-adhesive back for easy and quick fixing, with 30 cm connecting cable on both sides; reducible in 50 mm (6 LEDs).

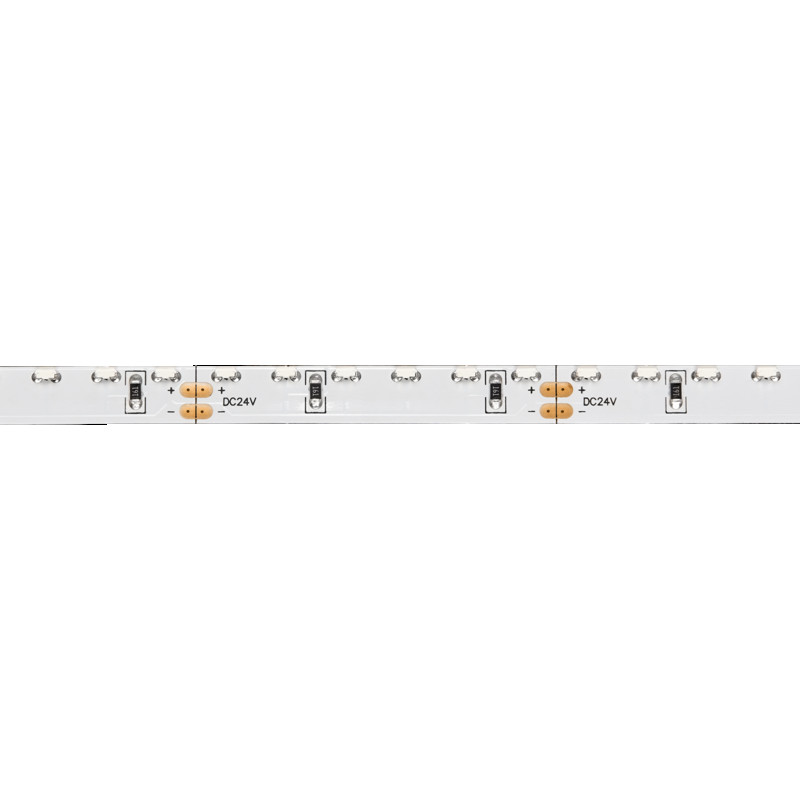

The special feature of the strip light is the LEDs installed on the side, instead of in the center as in conventional strip lights.
Maximum connected load of 96W (this equates to 10 m) may not be exceeded.
Sufficient cooling of the Flexible LED tape must be ensured. It is necessary to mount it on materials with good thermal conductivity, such as the aluminum profile.
Dimensions (WxH): 8x2 mm
Number of LEDs: 120/m
Colour rendering index Ra: 90
Colour distance (MacAdam): 6 SDCM
Life time: 30,000 h (L90 B10)
Recommendation LED driver: EL-24V CV series and LED PWM-5 Controller 12V/24V 8A BT
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] -20 - 45 - Product contents
Including LED driver no With end piece no - Technical lighting specifications
Non-directional (NDLS) or directional [DLS] DLS Colour temperature [K] 3000 LED efficiency [lm/W] 77 Total luminous flux per coil [lm] 4000 Total luminous flux per meter [lm] 800 Useful luminous flux (Φuse) per meter [lm] 740 Useful luminous flux [Φuse] per coil [lm] 3700 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 6 Colour rendering index Ra 90 Colour rendering index R9 50 Peak luminous intensity [cd] 135 L70B50 - life time at 25°C [h] 30000 L90B10 - life time at 25 °C [h] 30000 Colour-tuneable light source no Total lumen setting adjustable no Constant light output (CLO) no Light source replaceable no Number of LEDs per meter 120 Number of LEDs per segment 6 - Dimensions and weight
Length [mm] 5000 Length of particular segments [mm] 50 Width [mm] 8 Height [mm] 2 Weight [g] 1033 - Protection specifications
CE-Conformity yes RoHS yes Protection class III Degree of protection IP20 With protective cover no Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces - Material and colour
Colour of printed circuit board white Material PVC/copper - Other specifications
Type of luminaire tape Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Self-adhesive yes Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Electrical specifications
Lamp power [W] 48 Lamp power per meter [W] 9,6 Rated current per meter [A] 0,4 Max. current handling (at 10 m length) [A] 4 Voltage type DC Lamp holder without Type of wiring Suitable for through wiring Wire cross section Connecting cable 2x0.5mm² on both sides Exchangeable LED driver no Dimmable yes Suitable for dimmer yes Type of dimming PWM LED driver LED operating device voltage-controlled Nominal voltage [V] 24 Lamp type exchangeable no Conductor cross section [mm²] 0,32 MM-Test mark yes
