Flexible Neon LED 1018 10m 960 10W/m 24V IP67
Flexible LED Tube 1018 with a higher IP protection
SKU:
5022518010
EAN: 4044538069883
EAN: 4044538069883

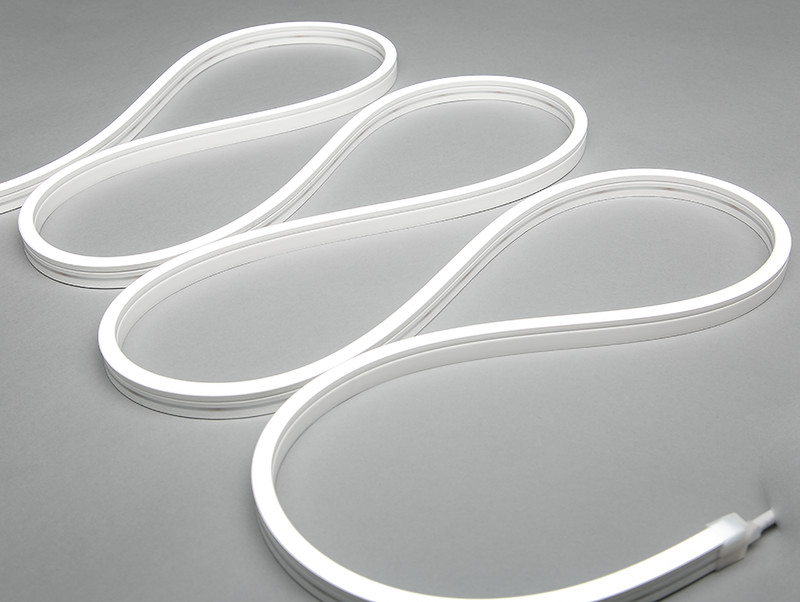

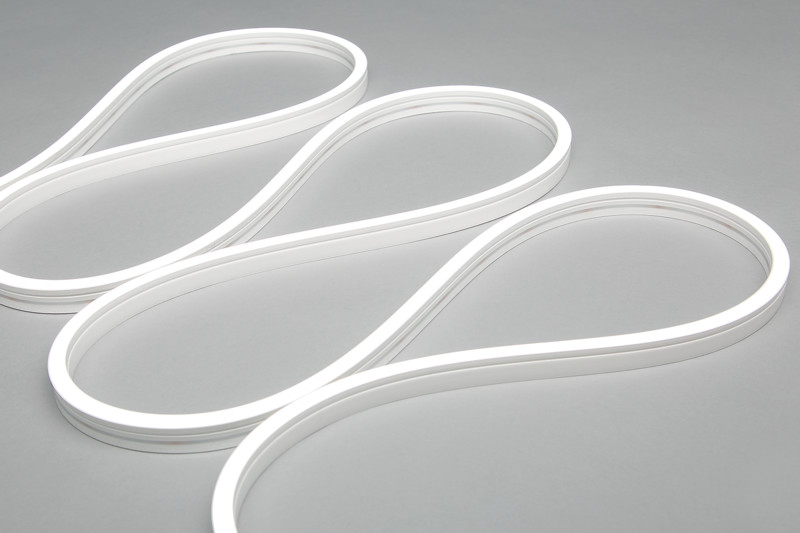

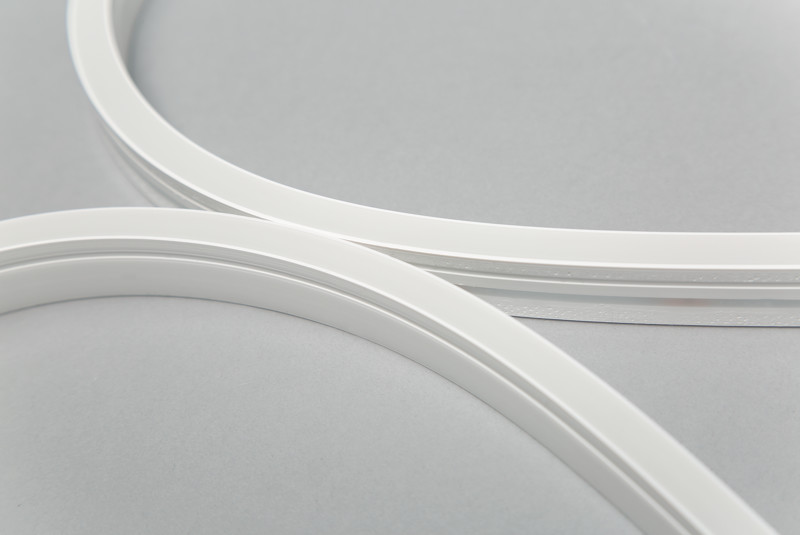

Flexible LED tube made of UV resistant silicone with 30 cm connecting cable on both sides; reducible in 50 mm (6 LEDs) sections.
Easy installation with clips and bendable track.
Dimensions (LxWxH): 10000x10x18 mm
Colour rendering index Ra: 90
Colour distance (MacAdam): 3 SDCM
Life time: 35.000 h (L70 B50)
Recommendation LED driver: EL-24V CV series
Included in delivery: 4 feed caps, 4 end caps, 20 mounting clips
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] -20 - 50 - Product contents
Including LED driver no With connection set no With end piece no Incl. end cap yes Delivery including 2 feed caps, 2 end caps, 10 mounting clips - Technical lighting specifications
Non-directional (NDLS) or directional [DLS] DLS Colour temperature [K] 6000 Colour of light cool white Total luminous flux per meter [lm] 330 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 90 Colour rendering index R9 90 Peak luminous intensity [cd] 94 L70B50 - life time at 25°C [h] 35000 Colour-tuneable light source no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no Number of LEDs per segment 6 Lamp type SMD-LED - Dimensions and weight
Length [mm] 10000 Length of particular segments [mm] 50 Width [mm] 10 Height [mm] 18 Weight [g] 2110 - Protection specifications
CE-Conformity yes RoHS yes EMC Standard EN 55015:2013 + A1:2015; EN 61547:2009 LVD Standard EN 60598-1; EN 60598-2-21; EN 62493; EN 62031; IEC TR 62778 Protection class III Degree of protection IP67 UV-resistance yes seawater resistant yes With protective cover yes Installation, electrical engineering expertise yes Only for indoor use no Furniture installation, fire protection 'MM' yes Lowest bending radius [mm] 40 - Material and colour
Colour of printed circuit board white Material Silicone/copper - Other specifications
Bendable yes Model tube Mounting method surface-/recessed-mounted Self-adhesive no Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Electrical specifications
Lamp power [W] 100 Lamp power per meter [W] 10 Rated current per meter [A] 0,4 Max. current handling (at 20 m length) [A] 8 Voltage type DC Lamp holder other Type of wiring Suitable for through wiring Wire cross section free, stripped wire ends Exchangeable LED driver no Dimmable yes Suitable for dimmer yes Type of dimming PWM LED driver LED operating device voltage-controlled Nominal voltage [V] 24 Lamp type exchangeable no Conductor cross section [mm²] 1
