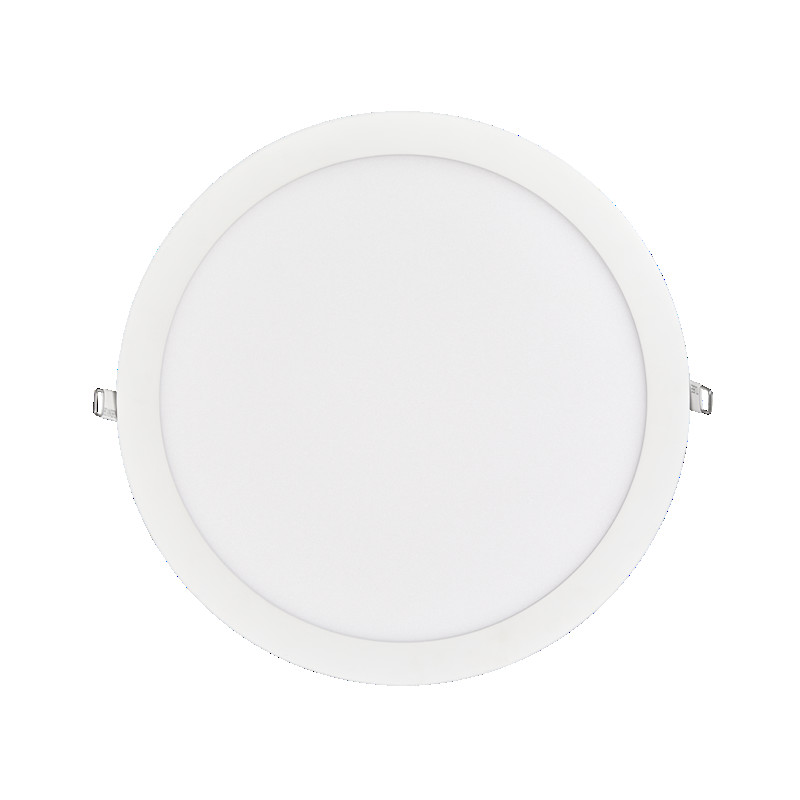

LED Panel Flat 300 R UGR19 white 20W 840 350mA
The energy-efficient LED Panel UGR ≤19 do not flicker or blend so theire are perfect in workstations behind the screen and also everywhere you will need to be focused.
The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.
LED driver: not included
Dimmable: LED driver dependent
Material: aluminium/Microprism diffuser and light guide made of PMMA (non-yellowing)
Dimensions (ØxH): 295x22 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
Recommendation LED driver:
Part no. 8980202540 EL-20-350 non-dimmable
Part no. 8980202535 EL-20-350 D (C) dimmable with trailing edge
Part no. 8970203500 EL-20-Uni 350-700 dimmable Dali/push/1-10V
Betriebsgerät: nicht inklusive
Dimmung: Betriebsgerätabhängig
Material: Aluminium/Microprismenscheibe und Lightguide aus PMMA (vergilbungsfrei)
Abmessungen (ØxH): 295x22 mm
Farbwiedergabeindex Ra: 80; Farbabstand (MacAdam): 3 SDCM
Lebensdauer: 50.000 h (L80 B10)
Betriebsgerätempfehlung:
Art.-Nr. 8980202540 EL-20-350 nicht dimmbar
Art.-Nr. 8980202535 EL-20-350 D (C) über Phasenabschnitt
Art.-Nr. 8970203500 EL-20-Uni 350-700 dimmbar Dali/push/1-10V
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes LVD Standard EN 60598-1; EN 60598-2-2; EN 62471 Protection class III Degree of protection IP20 Impact strength IK00 Thermal insulation mark no Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' no - Temperature specifications
Ambient temperature [Ta] [°C] 0 - 25 - Material and colour
Material housing aluminium Colour housing white Surface of the housing painted Material diffuser PMMA Surface texture of the diffuser micro prismatic Material lightguide PMMA - Other specifications
Type of luminaire panel luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting yes Suitable for suspended mounting no Suitable for built-in mounting yes Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Product contents
With light source yes Including LED driver no Cable suspension supplied with the product no - Technical lighting specifications
Light cone Open beam/diffuse Colour temperature [K] 4000 Colour of light neutral white Total luminous flux [lm] 2200 Beam angle [°] 90 Colour consistency [MacAdam] [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 10 Unified Glare Rating [UGR] 19 Fit for monitor workplace acc. EN 12464-1 yes Peak luminous intensity [cd] 1000 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 295 Width [mm] 295 Diameter [mm] 295 Height [mm] 22 Weight [g] 676 Light portal opening [diamter] [mm] 250 Ceiling cut-out [diameter] [mm] 280 Built-in depth [mm] 25 - Electrical specifications
Lamp power [W] 20 Nominal current of luminaire [mA] 350 Rated voltage of luminaire [DC] [V] 57 Constant current [mA] 350 Lamp holder without Type of wiring Ending Wire cross section CCV male plug (+ CCV female plug with open cable ends) Exchangeable LED driver no Dimmable yes Type of dimming Led driver dependent Length of cable [cm] 40 LED driver LED operating device current-controlled Conductor diameter [mm²] 0,33
