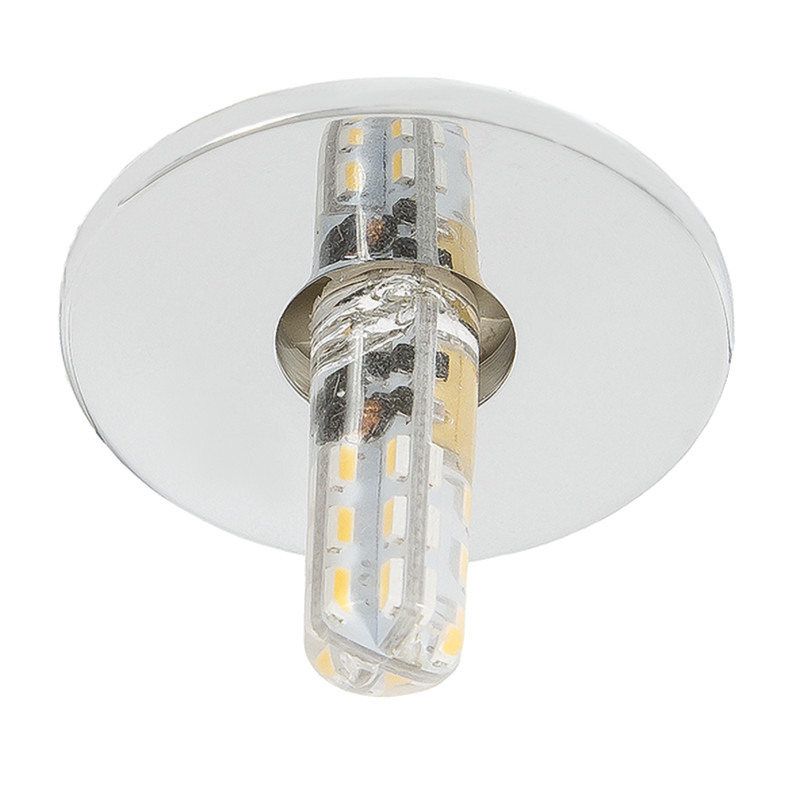

C 392 chrome


Recessed Downlight for starry sky
Base price
Article Choice

Product SKU:  1751300200

EAN:  4044538007717
Preloader

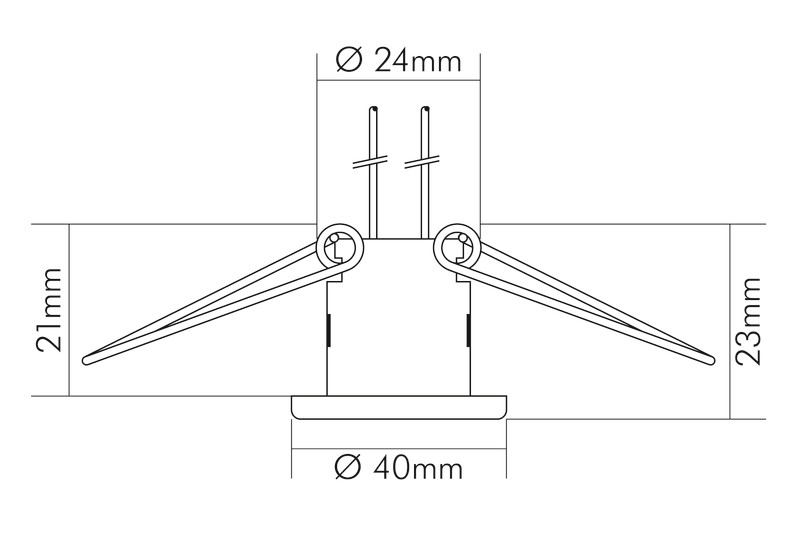

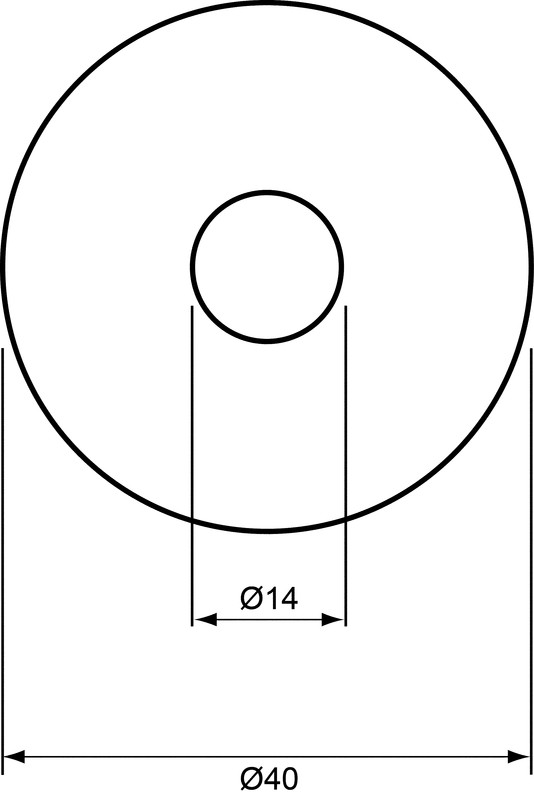

Maßzeichnung
Maßzeichnung
Maßzeichnung
Maßzeichnung

Filigrane light-point to create a starry night effect or for individual effect lighting. The low construction allows an installation in minimal mounting depth.

Material: brass; Surface: powder-coated or galvanized

The spot C 392 stainless steel is made of material AISI 303.

Lamp holder and cable (30 cm) approved by VDE, 250° C

Light sharing
symmetric
Light distribution
without
Light outlet
direct
Colour-tuneable light source
no
Lamp type
pin-socket/LED pin-socket
Colour controllable (RGB)
no
Lamp power [W]
20
Nominal voltage [V]
11,8
Voltage type
AC/DC
Dimmable
yes
Lamp holder
G4
Electrical connection with connector system
no
Connection type primary
free, stripped cable ends
Through-wiring possible
no
Type of LED driver
electronic transformer
Degree of protection
IP20
Only for indoor use
yes
Protection class
III
Suitable for number of lamps
1
Fit for monitor workplace acc. EN 12464-1
no
Installation in insulated ceilings, fire protection 'F with roof'
no
Furniture installation, fire protection 'MM'
only applicable with LED light source
CE-Conformity
yes
Installation into any material with normal flammability
not applicable with a halogen lamp
Impact strength
without
Distance to objects [m]
0,3
RoHS
yes
Note
ensure constant convection and do not cover by insulation material
Installation, electrical engineering expertise
yes
Temperature Range [Ta] [°C]
0 - 25
Diameter [mm]
40
Ceiling cut-out [diameter] [mm]
30
Built-in depth [mm]
22
Height [mm]
23
Weight [g]
40
Colour
chrome
Surface finishing
galvanized
Material
brass
Reflector
without
Mounting method
recessed-mounted
Suitable for recessed wall installation
no
Suitable for wall mounting
no
Suitable for light line configuration
no
Adjustable version
no
Suitable for general lighting
no
Type of luminaire
recessed luminaire
Including LED driver
no
Delivery including
lamp holder and cable (30 cm) VDE approved, 250°
With light source
no
