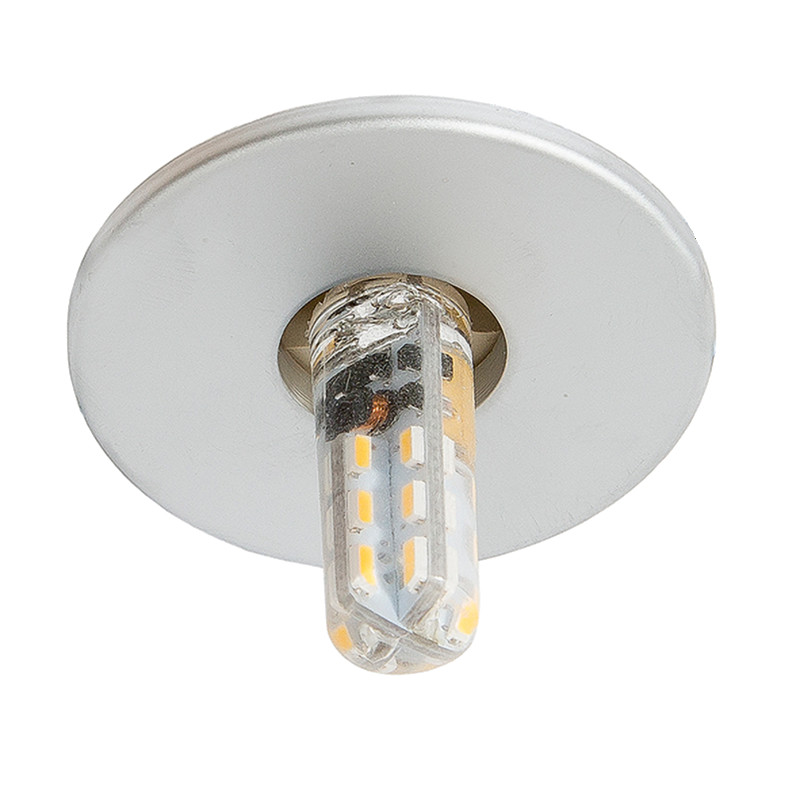

C 392 matt chrome
Recessed Downlight for starry sky
SKU:
1751300100
EAN: 4044538007700
EAN: 4044538007700
Filigrane light-point to create a starry night effect or for individual effect lighting. The low construction allows an installation in minimal mounting depth.
The spot C 392 stainless steel is made of material AISI 303
Lamp holder and cable (30 cm) approved by VDE, 250° C
Material: brass
Surface: powder-coated or galvanized
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes Protection class III Degree of protection IP20 Impact strength without Installation, electrical engineering expertise yes Distance to objects [m] 0,3 Only for indoor use yes Furniture installation, fire protection 'MM' only applicable with LED light source Installation in insulated ceilings, fire protection 'F with roof' no Installation into any material with normal flammability not applicable with a halogen lamp Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Other specifications
Type of luminaire recessed luminaire Mounting method recessed-mounted Suitable for general lighting no Suitable for recessed wall installation no Suitable for wall mounting no Suitable for light line configuration no Reflector without Adjustable version no - Product contents
With light source no Including LED driver no Delivery including lamp holder and cable (30 cm) VDE approved, 250° - Dimensions and weight
Diameter [mm] 40 Height [mm] 23 Weight [g] 40 Ceiling cut-out [diameter] [mm] 30 Built-in depth [mm] 22 - Material and colour
Material brass Colour matt chrome Surface finishing galvanized - Electrical specifications
Type of LED driver electronic transformer Lamp power [W] 20 Voltage type AC/DC Lamp holder G4 Connection type primary free, stripped cable ends Exchangeable LED driver yes Dimmable yes Through-wiring possible no Nominal voltage [V] 11,8 Electrical connection with connector system no - Technical lighting specifications
Fit for monitor workplace acc. EN 12464-1 no Light distributor without Colour controllable (RGB) no Light sharing symmetric Light outlet direct Lamp type pin-socket/LED pin-socket Suitable for number of lamps 1
