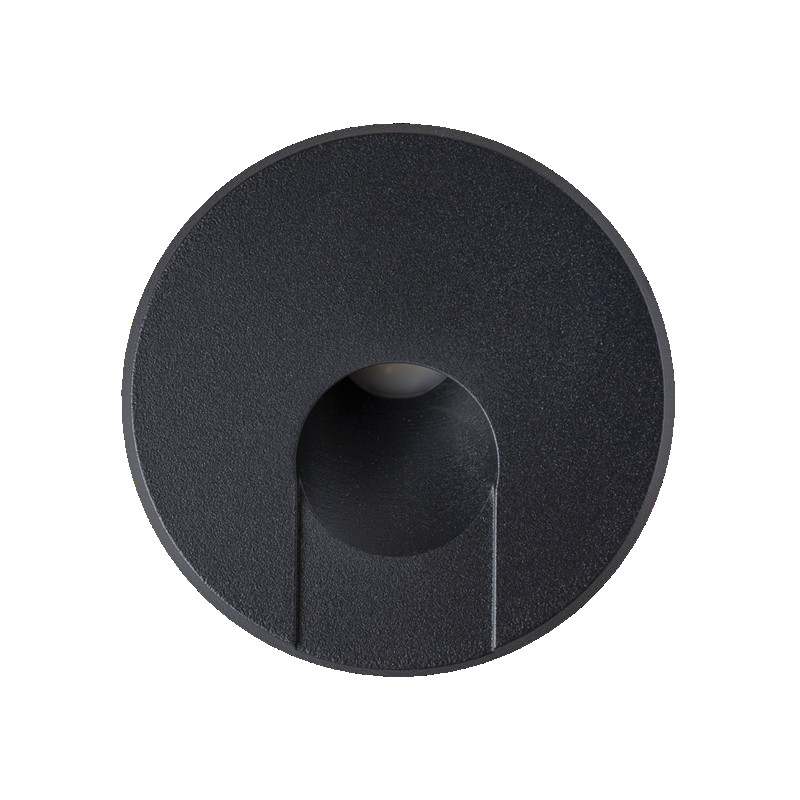

LED Stair 68 1,5W SCCT round matt black
EAN: 4044538076386
Switchable Color Temperature - SCCT for short.
Decide on your color temperature before installing the luminaire! Adjust it, by means of a switch, to the desired color temperature without further ado.
The LED Stair 68 recessed wall luminaire fits into any flat and deep switch/flush-mounted box with a cut-out of 68 mm and therefore offers the ideal solution for illuminating corridors and stairs. They can be connected directly to the 220V mains voltage and are suitable for through-wiring. Their cover is easily replaceable thanks to a plug-in system.
Material: ABS/aluminum
Dimensions (ØxH): 80x41 mm
Color rendering index Ra: 90
Color distance (MacAdam): 3 SDCM
Life time: 30.000 (L70 B50)
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes Protection class II Degree of protection IP40 Installation, electrical engineering expertise yes Only for indoor use yes - Material and colour
Material housing ABS Colour housing matt black Material cover aluminium Surface finishing powder coated - Technical lighting specifications
Light cone Extreme wide beam >80° Suitable for number of light sources 1 Colour temperature 2 [K] 4000 Total luminous flux at 4000 K [lm] 60 Total luminous flux at 3000 K [lm] 60 L70B50 - life time at 25°C [h] 30000 Colour temperature [K] 3000 Colour of light warm white up to neutral white Total luminous flux [lm] 60 Beam angle [°] 95 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 90 Colour rendering index R9 59 Chromaticity coordinates (x) 0,436 Chromaticity coordinates (y) 0,4 Peak luminous intensity [cd] 26 Light distributor Diffuser Light sharing symmetric Light outlet direct Lamp type LED - Dimensions and weight
Length [mm] 80 Width [mm] 80 Diameter [mm] 80 Height [mm] 41 Weight [g] 86 - Other specifications
Operation by Bluetooth no Type of luminaire recessed wall luminaire Model recessed-mounted Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting yes Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Electrical specifications
Wire cross section Push-Terminal Type of LED driver not required Voltage type AC Dimmable no Through-wiring possible yes Nominal voltage [V] 220 Max. lamp wattage [W] 1,5
Recently viewed
-
LED Stair 68 1,5W SCCT round matt black
Recessed wall luminaire SCCT
