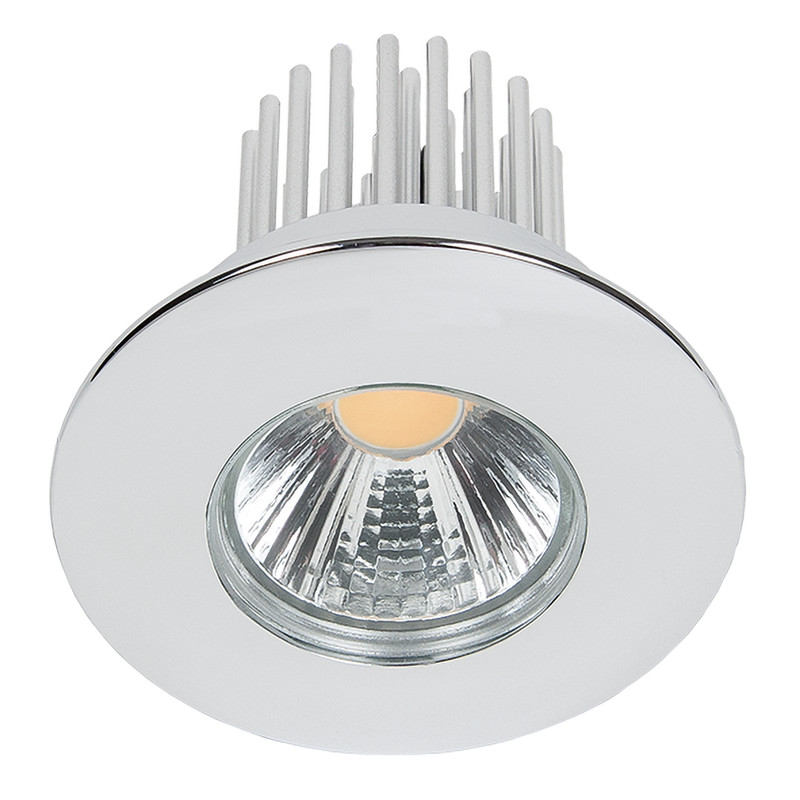

A 5068 S IP44 chrome 12W neutral white 38°

LED Downlight A 5068 S, COB LED

Maßzeichnung

SKU: 1857670214
EAN: 4044538050195

For use in spot and shop lighting.

Front glass

Genuine glass reflector

Aluminum heat sink

The luminaire is only suitable for installation in false ceilings. Installed downlight must not be covered by insulation material. Ensure constant convection.

Installation housing: the LED Downlight can generally be installed in all standard housings for the installation in concrete ceilings; specially tested are the housings from KAISER: HaloX® 100 with tunnel 190 (Type 1281-30) + Front section, i. e. type 1281-11/HaloX® 180 with tunnel 190 (Type 1282-72/1282-75)

Material: die-cast aluminium/glass

Surface: galvanized or powder coated

Suitable for ceiling cut-out: 68 mm

Colour rendering index Ra: 90

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

LED driver included: dimmable with trailing edge

Terminal block and through-wiring (L, N, PE)

weniger lesen

Downloads

	Montageanleitung
	Lichttechnische Daten (EULUMDAT)
	Produktdatenblatt

Technical Data

Temperature specifications

Ambient temperature [Ta [°C]	0 - 25

Protection specifications

Covering of the luminaire with thermally insulating material possible	no
CE-Conformity	yes
RoHS	yes
SELV	yes
Protection class	II
Degree of protection	IP44 front-facing
Impact strength	IK00
Filament test according to IEC 60695-2-10 [°C]	850
Thermal insulation mark	yes
Installation, electrical engineering expertise	yes
Only for indoor use	yes
Furniture installation, fire protection 'MM'	yes
Installation note [flammable materials]	flammable materials
Installation in insulated ceilings, fire protection 'F with roof'	yes
Note	ensure constant convection and do not cover by insulation material

Product contents

With light source	yes
Including LED driver	yes

Technical lighting specifications

Light cone	Medium beam 21-40°
Colour temperature [K]	4000
Colour of light	neutral white
Total luminous flux [lm]	1450
Beam angle [°]	38
Colour consistency (MacAdam) [SDCM]	3
Colour rendering index Ra	90
Colour rendering index R9	75
Fit for monitor workplace acc. EN 12464-1	no
Peak luminous intensity [cd]	2280
Light distributor	reflector
L80B10 - life time at 25 °C [h]	50000
L70B50 - life time at 25°C [h]	50000
Colour controllable (RGB)	no
Colour temperature adjustable	no
Light sharing	symmetric
Light outlet	direct
Lamp type	COB LED
Suitable for number of lamps	1

Dimensions and weight

Diameter [mm]	80
Height [mm]	72
Weight [g]	320
Ceiling cut-out [diameter] [mm]	68
Built-in depth [mm]	80
Light portal opening [mm]	50

Material and colour

Reflector colour	silver
Material housing	die-cast aluminium
Material cover	glass
Heat sink	yes
Material of Heat sink	aluminium
Material of reflector	glass
Front glass	yes
Colour	chrome
Surface finishing	galvanized

Other specifications

Adjustability	Not adjustable
Operation by Bluetooth	no
Mounting method	recessed-mounted
Suitable for general lighting	yes
Suitable for recessed wall installation	no
Suitable for wall mounting	no
Compatible with Apple HomeKit	no
Compatible with Google Assistant	no
Compatible with Amazon Alexa	no
IFTTT support available	no
Kind of disposal at the end of the life time	specific collection points, please consider the local regulations
Reflector	high gloss
Suitable for lighting accessories	no

Electrical specifications

Type of LED driver	LED driver
Lamp power [W]	12
Rated voltage of the LED driver [AC [V]	220 - 240
Lamp holder	without
Wire cross section	20 cm connecting cable with reverse polarity protected and Mini AMP plug-system 2-pole
Exchangeable LED driver	yes
Dimmable	yes
Type of dimming	trailing edge
Through-wiring possible	yes
Rated current max. [mA]	350
Rated voltage max. [V]	35
Electrical connection with connector system	yes
