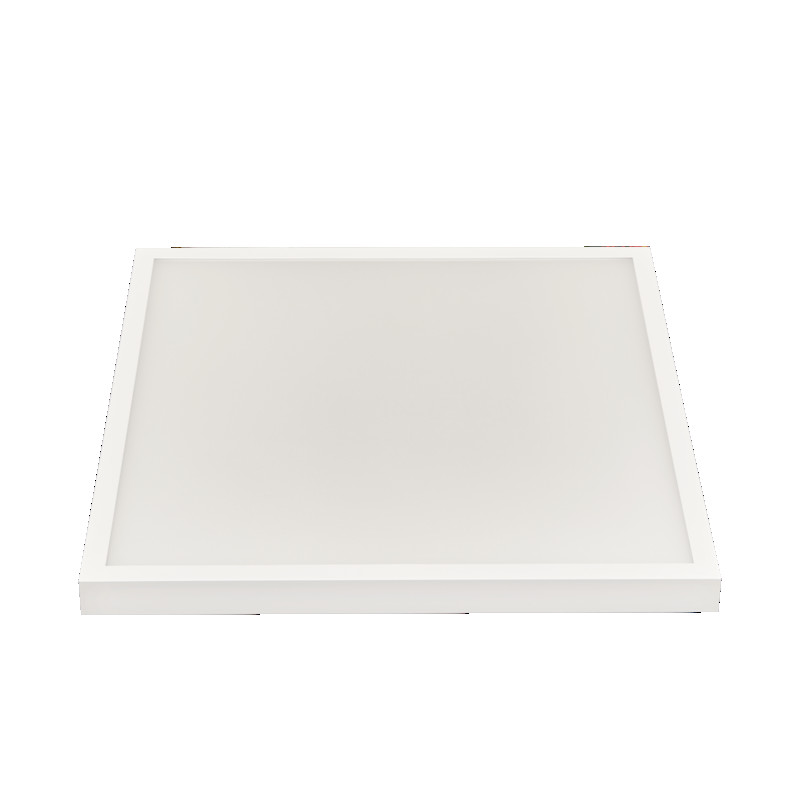

LED Panel s.mount 620x620 UGR<19 w. 30-SCCT Dali
LED Panel surface-mounted for easy and rapid installation
SKU:
1580354010
EAN: 4044538075839
EAN: 4044538075839
The luminaire convinces with its high energy efficiency as well as its clear and unobtrusive design.
A special feature is the low construction that’s a reason why the luminaire is the right choice for a harmonious general lighting. It can be integrated discreetly into all rooms.

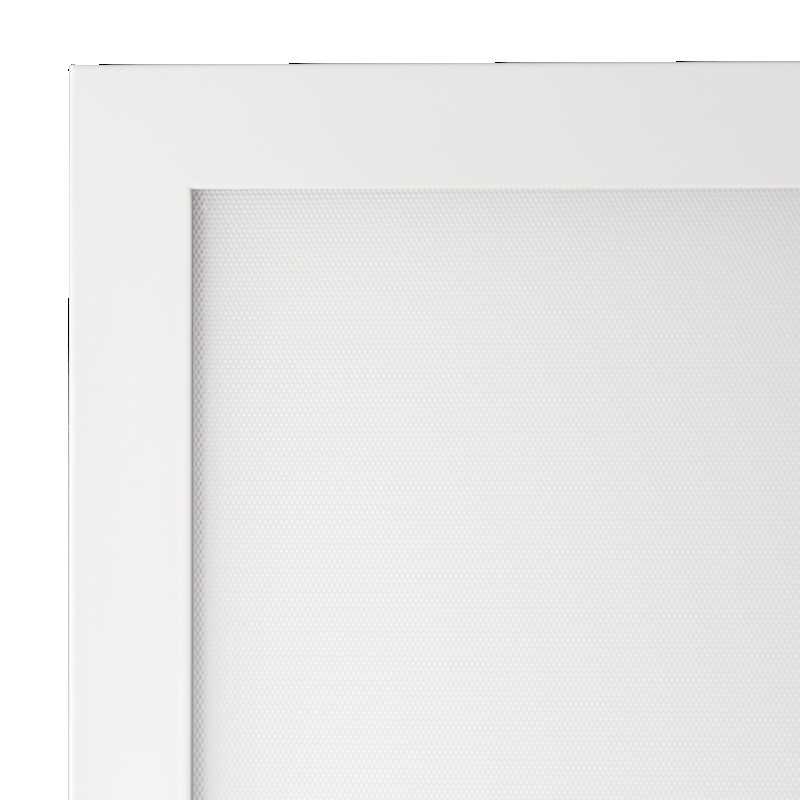

Material: aluminium white painted/Microprism diffuser made of PMMA (non-yellowing)
Dimensions (LxWxH): 620x620x45 mm
Colour rendering index Ra: 82
Colour distance (MacAdam): 3 SDCM
Life time: 60.000 h (L80 B10)
LED driver included: dimmable Dali
Terminal block and through-wiring (L, N, PE)
weniger lesen
Technical Data
-
Other specifications
Compatible with Casambi no Mounting method surface mounted Type of luminaire Surface mounted luminaire Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for suspended mounting no Suitable for built-in mounting no Suitable for ceiling mounting yes Suitable for surface mounting yes Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Independant installation yes - Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class II Degree of protection IP40 Impact strength IK05 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] surface-mounted luminaire for direct mounting on normal flammable surfaces Fire resistance 'D' no - Temperature specifications
Ambient temperature [Ta [°C] 0 - 40 - Material and colour
Material housing aluminium Colour housing white Surface of the housing painted Material diffuser PMMA Diffuser surface micro prismatic - Technical lighting specifications
Colour temperature 2 [K] 4000 Colour temperature 3 [K] 6500 Light cone Open beam/diffuse Suitable for number of light sources 1 Total luminous flux at 6500 K [lm] 4230 Total luminous flux at 3000 K [lm] 4020 Total luminous flux at 4000 K [lm] 4230 Colour temperature [K] 3000 Colour of light warm white till halogen white LED efficiency [lm/W] 141 LED efficiency [system] [lm/W] 120 Beam angle [°] 90 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 82 Colour rendering index R9 6 Unified Glare Rating [UGR] 19 Anti-glare limiting [UGR] lengthwise 18 Anti-glare limiting [UGR] crosswise 17 Fit for monitor workplace acc. EN 12464-1 yes Luminance y ≥ 65° ≤3000 cd/m2 Light distributor Diffuser L80B10 - life time at 25 °C [h] 60000 L70B50 - life time at 25°C [h] 70000 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable Positions Constant light output (CLO) no Light source replaceable no Light input sidelit Light sharing symmetric Light outlet direct Lamp type SMD-LED Color temperature control Switchable Color Temperature (SCCT) - Product contents
Including LED driver yes Installation material included yes - Dimensions and weight
Length [mm] 620 Width [mm] 620 Height [mm] 45 Weight [g] 3480 Light outlet opening [lenght] [mm] 580 Light outlet opening [width] [mm] 580 - Electrical specifications
With movement sensor no Switching cycles of the LED Driver 50000 Type of LED driver LED operating device current-controlled Lamp power [W] 30 Max. system power [W] 35 Nominal current of luminaire [mA] 1050 Rated voltage of luminaire [DC] [V] 28 Rated voltage of the LED driver [AC [V] 200 - 240 Rated voltage of the LED driver [DC] [V] 200 - 240 Input frequency [Hz] 50/60 Hz Quantity on MCB B10 (max.) 33 Quantity on MCB B16 (max.) 52 Quantity on MCB C10 (max.) 33 Quantity on MCB C16 (max.) 52 Total harmonic distortion 0,07 Type of wiring Ending Wire cross section Push-Terminal Exchangeable LED driver yes Dimmable yes Type of dimming Dali 2/push Flicker free yes Rated current max. at 230V AC [A] 0,25 Power factor > 0,95 Type of connection [luminaire] connecting cable with jack plug-system
