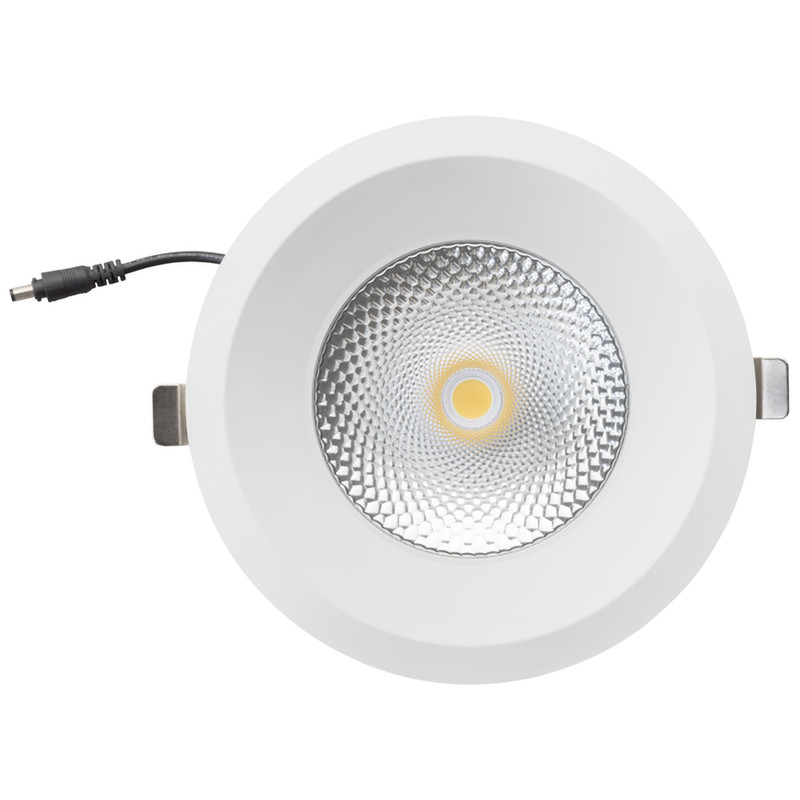

LED Downlight 170 UGR<19 25W white 3000K 60° 700mA
LED Downlight with COB LED - optimal general lighting and brilliance
The downlight offers the right lighting for many different applications. The conversion to LED can now begin.
The downlight is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.
Material: die-cast aluminium aluminium powder-coated/Glass clear
Dimensions (ØxH): 185x115 mm
Ceiling mounting: with mounting springs
Colour rendering index Ra: 90
Colour distance (MacAdam): 3 SDCM
Life time: 35.000 h (L80 B50)
LED driver: not included
Dimming: Led driver dependent
Recommendation LED driver:
Part no. 8980410010 EL-40 Uni 350-1050 dim 1-10V
Part no. 8980260350 EL-25 Uni 350-1050 dim Dali
Part no. 8980420350 EL-40 Uni 350-1050 dim Dali
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes LVD Standard EN 60598-1:2015 + A1:2018; EN 60598-2-2:2012; EN 62031:2008 + A1:2013 + A2:2015 Protection class III Degree of protection IP40 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' yes Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 40 - Product contents
With light source yes Including LED driver no - Technical lighting specifications
Light cone Wide beam 41-80° Colour temperature [K] 3000 Colour of light warm white Total luminous flux [lm] 2800 Beam angle [°] 60 Colour consistency (MacAdam) [SDCM] 4 Colour rendering index Ra 90 Colour rendering index R9 62 Unified Glare Rating [UGR] 19 Fit for monitor workplace acc. EN 12464-1 yes Peak luminous intensity [cd] 3235 Light distributor reflector L70B50 - life time at 25°C [h] 50000 L80B50 - life time at 25 °C [h] 35000 Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) [%] 80 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 70 Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) [%] 50 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 50 Colour controllable (RGB) no Total lumen setting adjustable no Light source replaceable no Luminaire lighting surface transparent Light sharing symmetric Light outlet direct Lamp type COB LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 185 Width [mm] 185 Diameter [mm] 185 Height [mm] 115 Weight [g] 527 Ceiling cut-out [diameter] [mm] 170 Light portal opening [mm] 105 - Material and colour
Reflector colour silver Material housing aluminium Colour housing white Housing colour (RAL) 9016 Surface of the housing powder coated Front glass glass clear Colour white - Other specifications
Operation by Bluetooth no Adjustability Not adjustable Type of luminaire recessed luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for suspended mounting no Suitable for built-in mounting yes Suitable for ceiling mounting yes Suitable for surface mounting no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Suitable for light-track mounting no Suitable for light-track mounting no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector Aluminum reflector Suitable for lighting accessories no Characteristics 6000 Ceiling fixing with mounting springs - Electrical specifications
Type of LED driver LED driver Lamp power [W] 25 Nominal current of luminaire [mA] 700 Constant current [mA] 700 Lamp holder without Wire cross section Jack plug (male)/Jack plug (female) with free, stripped wire ends Cable conductor quantity 2 Length of cable [luminaire] [cm] 30 Cable cross section [luminaire] [mm²] 0,34 Dimmable yes Type of dimming Led driver dependent Through-wiring possible no Nominal voltage [V] 36 Electrical connection with connector system yes
