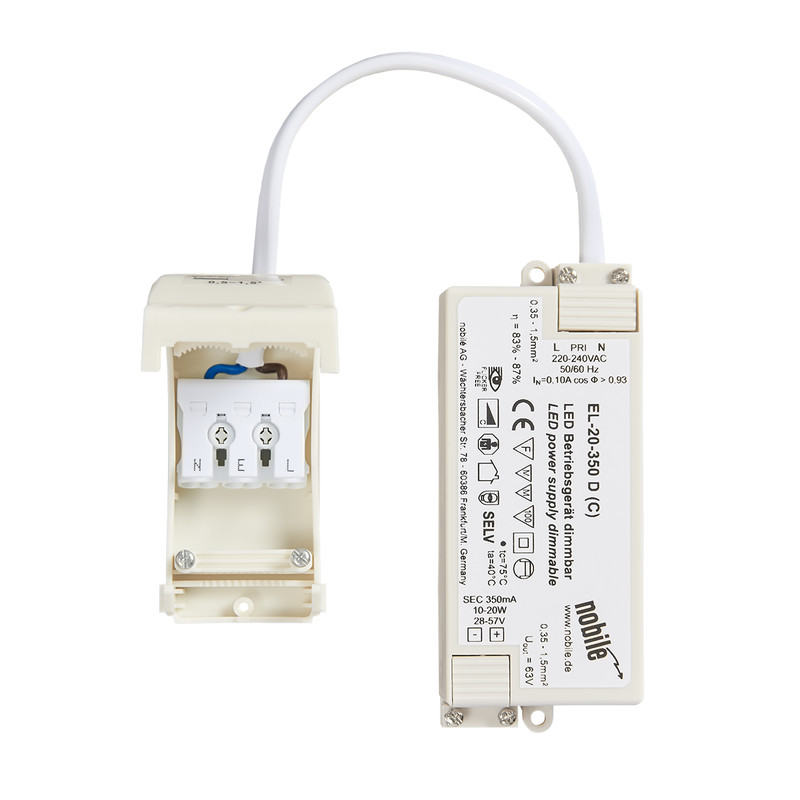

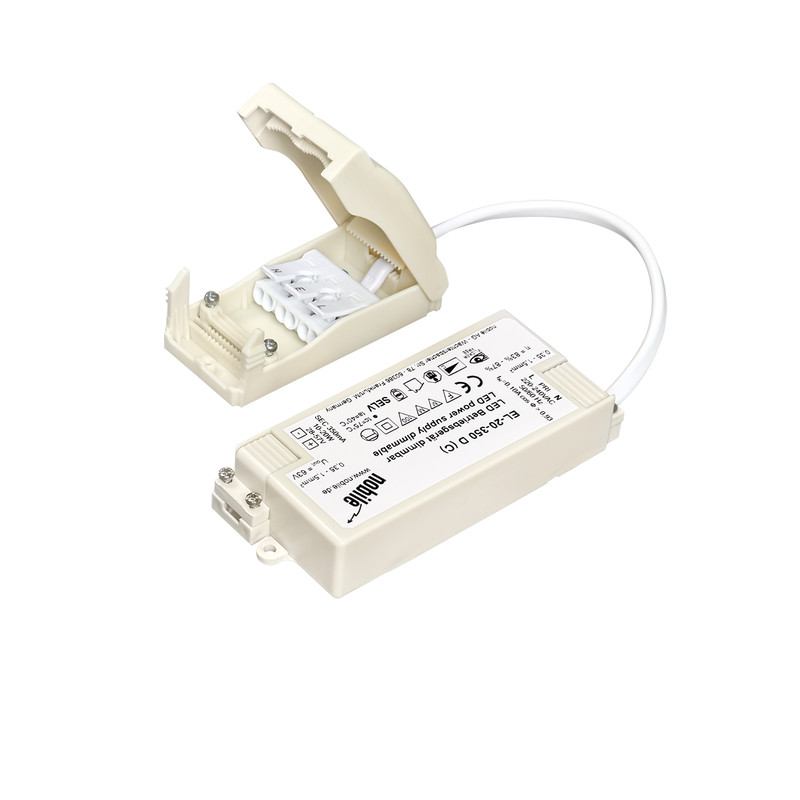

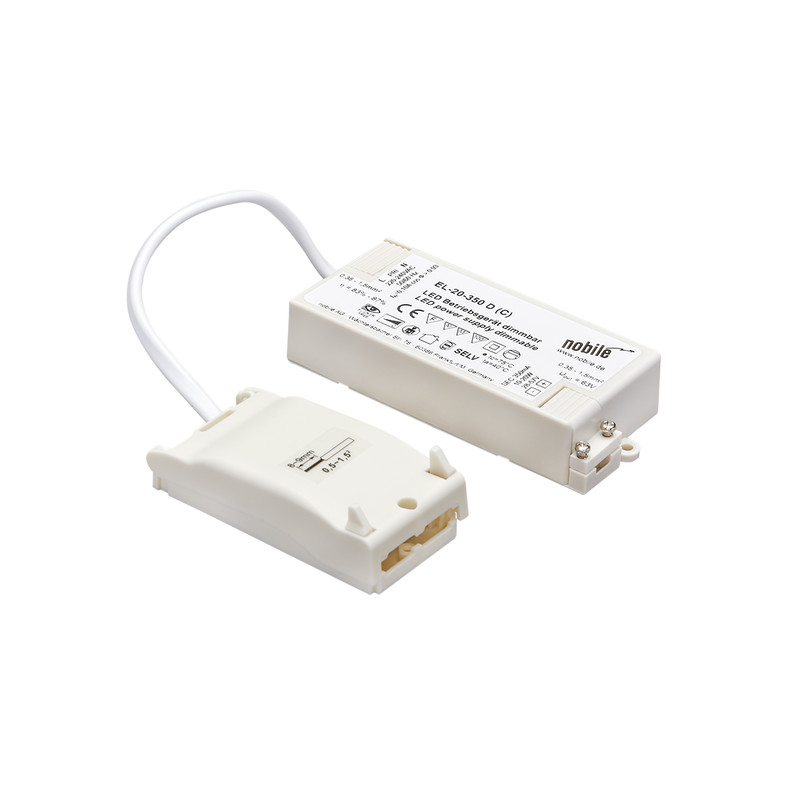

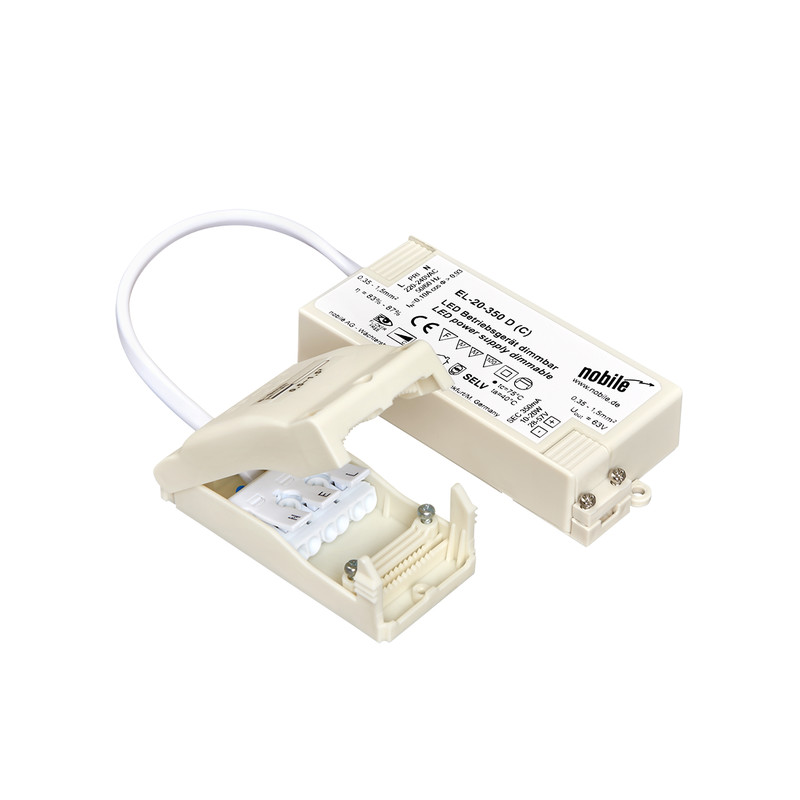

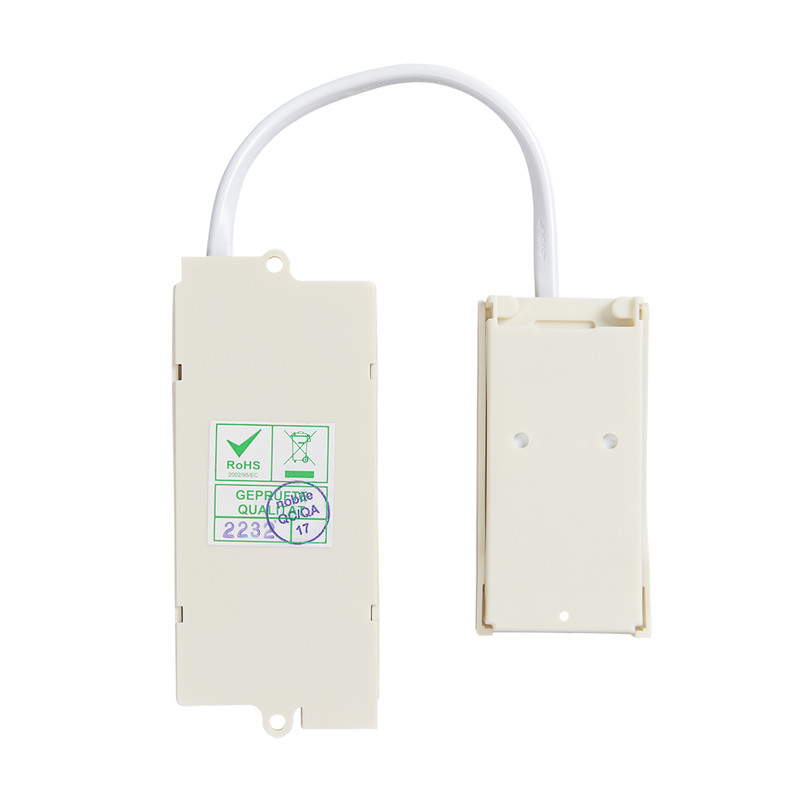

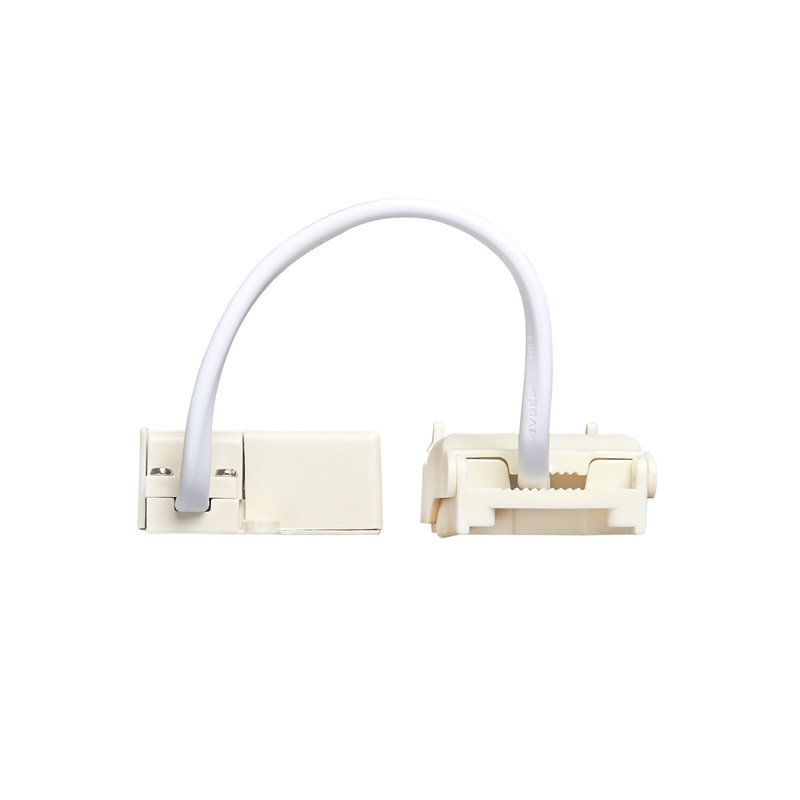

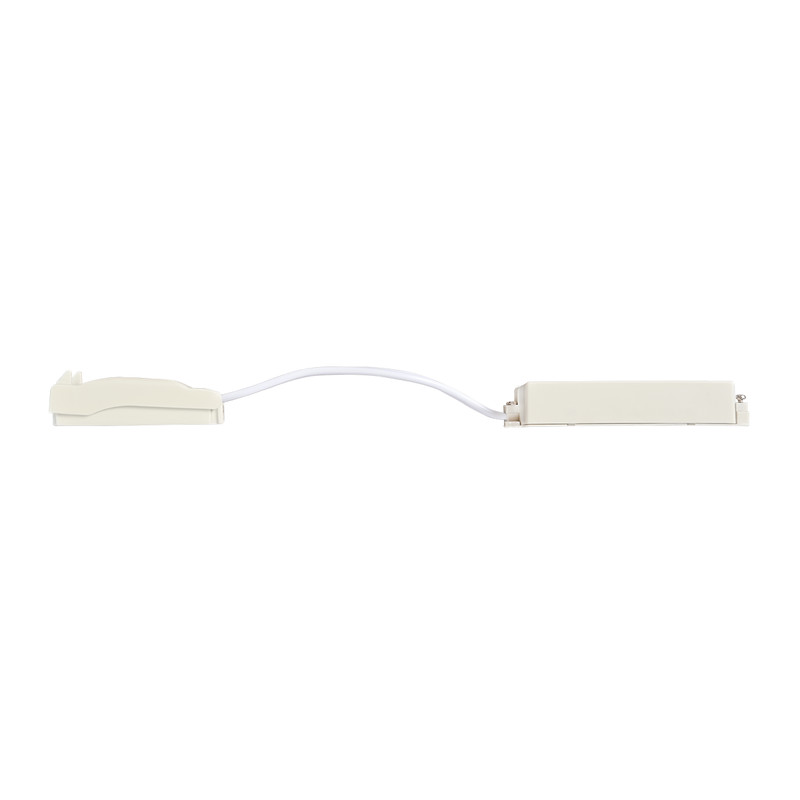

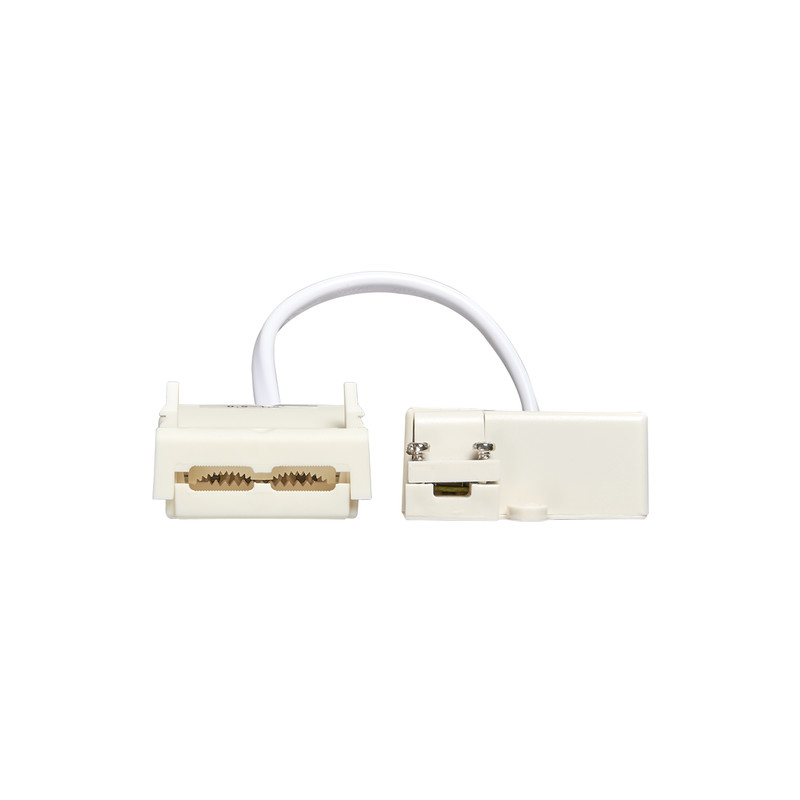

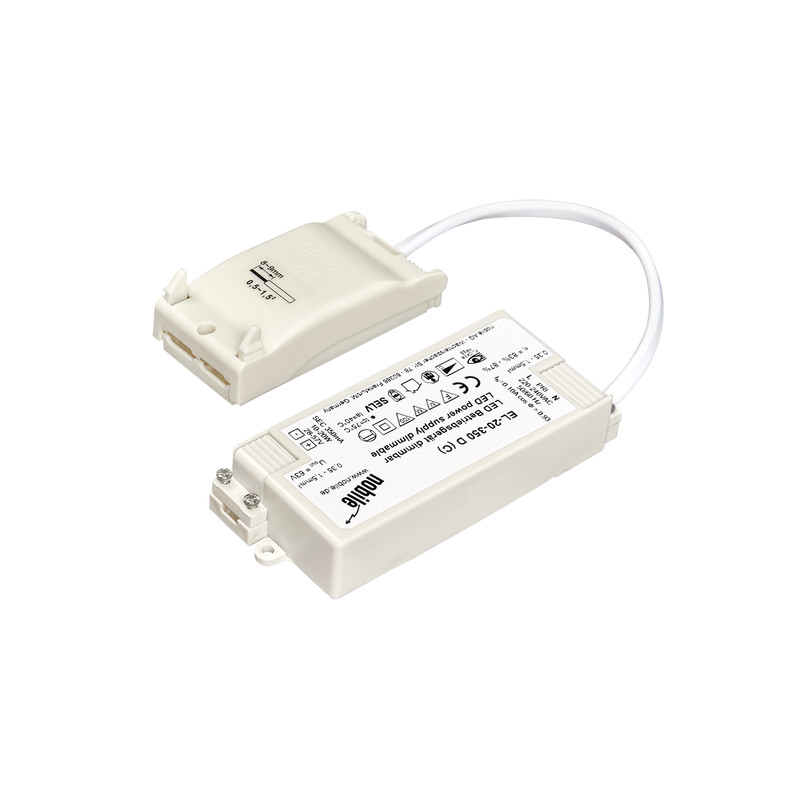

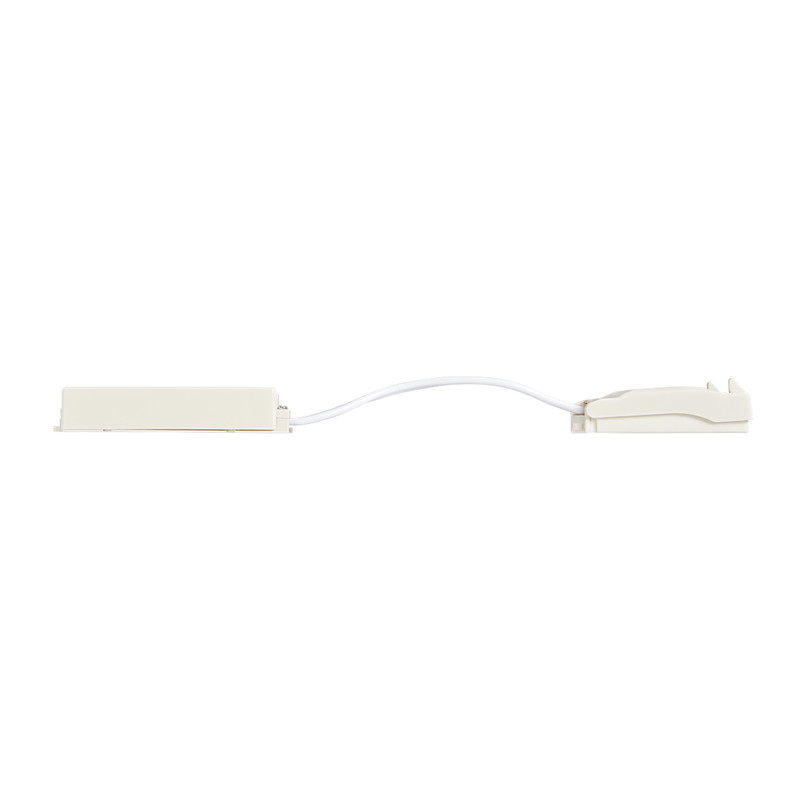

EL-20-350 D dim C
LED Driver with 350mA constant current, dimmable
SKU:
8980202535
EAN: 4044538070155
EAN: 4044538070155
LED driver dimmable for built-in device only for false ceiling.

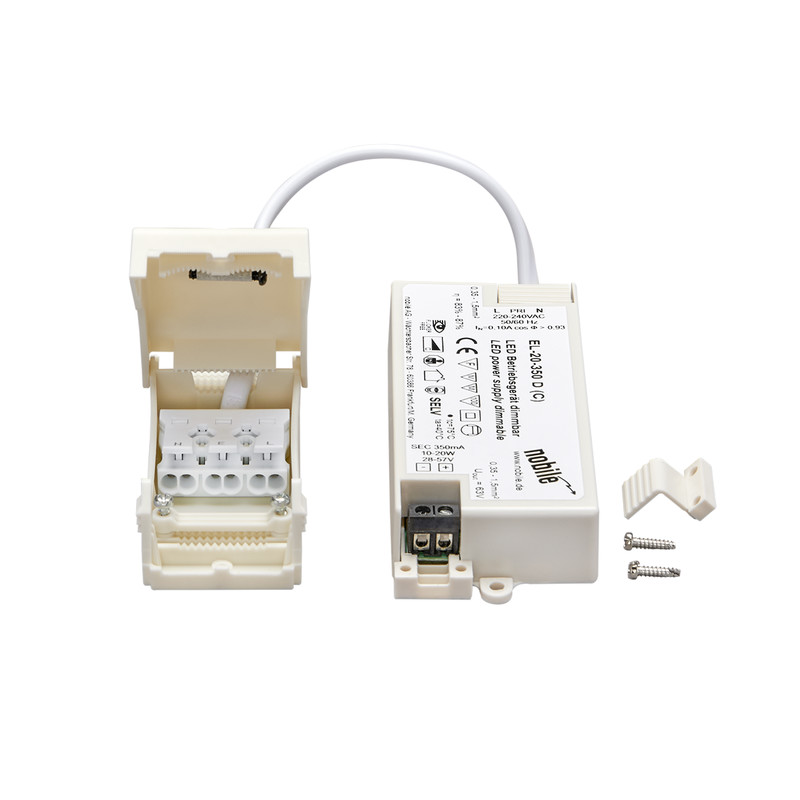

Type of connection primary: Terminal block and through-wiring (L, N, PE)
Type of connection secondary: covered screwless terminals (rigid/flexible cables Ø 0.5 – 1.5 mm²)
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes EMC Standard EN 55015:2016; EN 61547:2010; EN 61000-3-2:2015; EN 61000-3-3:2014 LVD Standard EN 61347-1:2016 + A1:2017 + A2:2018; EN 61347-2-13:2017 SELV yes Protection class II Degree of protection IP20 Safety transformer yes Short-circuit protected yes Temperature protection shutdown at [°C] 100 Filament test according to IEC 60695-2-10 [°] 850 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes * F-Test mark yes - Temperature specifications
Ambient temperature [Ta [°C] -20 - 40 Case temperature [Tc] [°C] 75 - Material and colour
Material housing polycarbonate Colour housing white - Dimensions and weight
Length [mm] 110 Width [mm] 45 Height [mm] 20 Weight [g] 135 - Other specifications
Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Independant installation yes Application for LED luminaire/LED modules only - Technical lighting specifications
Constant light output (CLO) no - Electrical specifications
Power [W] 8 - 20 Constant current [mA] 350 Input frequency [Hz] 50 - 60 Power factor [at full load] 0,95 Connection type primary Terminal block and through-wiring (L, N, PE) Connection type secondary covered screwless terminals (rigid/flexible cables Ø 0.5 – 1.5 mm²) Dimmable yes Type of dimming trailing edge Dimming range [%] 10 - 100 Suitable for DC voltage (primary side) no Suitable for constant voltage no Suitable for constant current yes Input voltage [AC] [V] 207 - 253 Output voltage [DC] [V] 22 - 57 Output current [DC] [mA] 350 Input current [A] 0,1 Efficiency/Power factor at full load [%] 88 Suitable for outdoor use no
