LED Panel Backlight 62 UGR≤19 DTW 1050mA

LED Panel Backlight Dim to Warm
Article Choice

Dimming from cold to warm that’s the innovation of the latest technology.

The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.

Material: aluminium white painted/Microprism diffuser and light guide made of PMMA (non-yellowing)

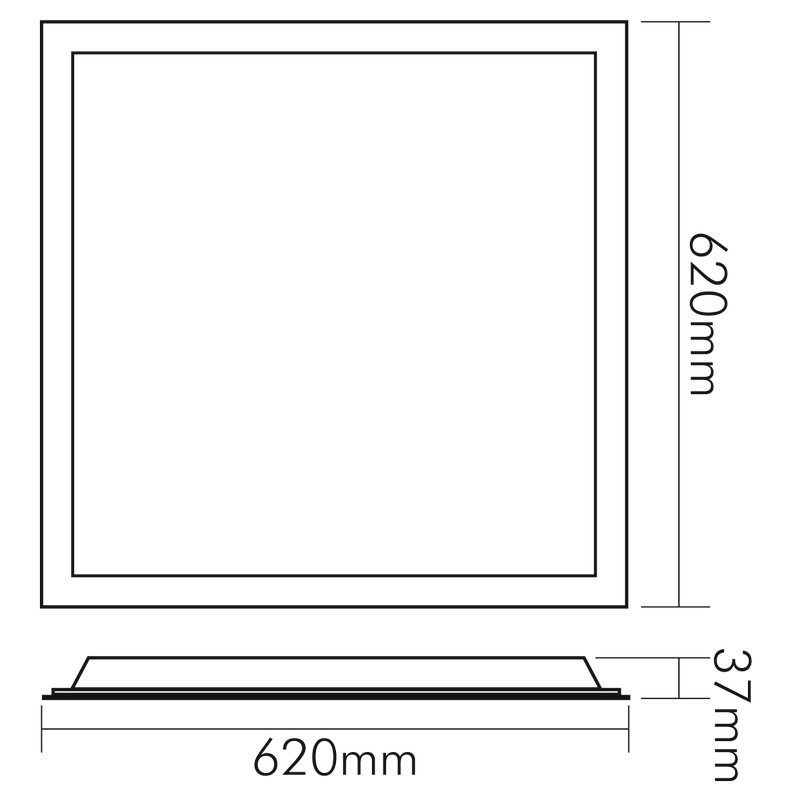

Dimensions (LxWxH): 620x620x37 mm

Colour rendering index Ra: 82

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

LED driver: not included

Dimming: Led driver dependent

Recommendation LED driver:

Part no. 8970100410 EL-40-1050 D dim C IP42, dimmable with trailing edge

Part no. 8970451070 EL-45-1050 dim Dali

Part no. 8980410010 EL-40 Uni 350-1050 dim 1-10V

Part no. 8980420350 EL-40 Uni 350-1050 dim Dali
