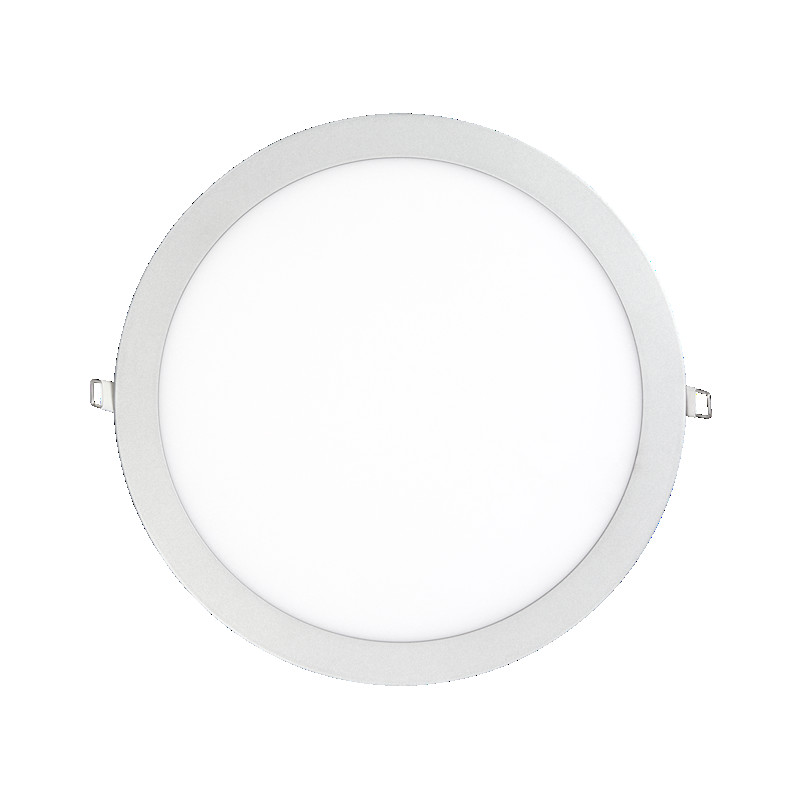

LED Panel Flat 300 R UGR≤19 350mA

The energy-efficient LED Panel UGR ≤19 do not flicker or blend so theire are perfect in workstations behind the screen and also everywhere you will need to be focused.

The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.

LED driver: not included

Dimmable: LED driver dependent

Material: aluminium/Microprism diffuser and light guide made of PMMA (non-yellowing)

Dimensions (ØxH): 295x22 mm

Colour rendering index Ra: 80

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

Recommendation LED driver:

Part no. 8980202540 EL-20-350 non-dimmable

Part no. 8980202535 EL-20-350 D (C) dimmable with trailing edge

Part no. 8970203500 EL-20-Uni 350-700 dimmable Dali/push/1-10V

Betriebsgerät: nicht inklusive

Dimmung: Betriebsgerätabhängig

Material: Aluminium/Microprismenscheibe und Lightguide aus PMMA (vergilbungsfrei)

Abmessungen (ØxH): 295x22 mm

Farbwiedergabeindex Ra: 80; Farbabstand (MacAdam): 3 SDCM

Lebensdauer: 50.000 h (L80 B10)

Betriebsgerätempfehlung:

Art.-Nr. 8980202540 EL-20-350 nicht dimmbar

Art.-Nr. 8980202535 EL-20-350 D (C) über Phasenabschnitt

Art.-Nr. 8970203500 EL-20-Uni 350-700 dimmbar Dali/push/1-10V
