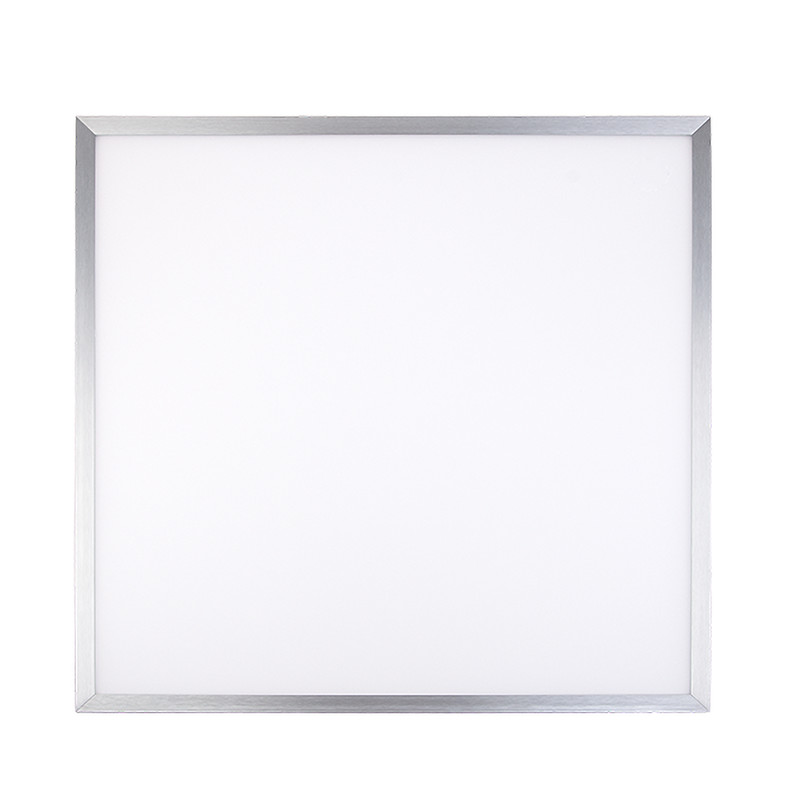

LED Panel Flat Q2 alu 22W RGB 12V COM+

LED Panel for easy and rapid installation

SKU: 1560419940
EAN: 4044538049199

LED RGB recessed and surface ceiling light for colored light for installation in standard modular ceilings 625.

Optional accessories:

Surface-mounted frame

Mounting Spring

Material: aluminium nature/diffuser and light guide made of PMMA (non-yellowing)

Dimensions (LxWxH): 620x620x10 mm

Ceiling cut-out (LxW) lay-in version: 600x600 mm

RGB interface: COM+

Life time: 50.000 h (L80 B10)

Recommendation LED driver and control unit: EL-12V CV series and, in addition, an LED RGB-sequencer, such as Capscence Sequencer Remote

weniger lesen

Protection specifications

Covering of the luminaire with thermally insulating material possible	no
CE-Conformity	yes
RoHS	yes
Protection class	III
Degree of protection	IP40
Impact strength	IK05
Photobiological safety according to EN 62471	RG0
Thermal insulation mark	yes
Installation, electrical engineering expertise	yes
Only for indoor use	yes
Furniture installation, fire protection 'MM'	yes
Installation note [flammable materials]	recessed luminaire suitable for direct mounting on normal flammable surfaces
EMC	yes
Installation in insulated ceilings, fire protection 'F with roof'	no

Temperature specifications

Ambient temperature [Ta] [°C]	0 - 40

Other specifications

Type of luminaire	panel luminaire
Mounting method	recessed-mounted
Suitable for general lighting	no
Suitable for recessed wall installation	no
Suitable for wall mounting	no
Suitable for suspended mounting	no
Suitable for built-in mounting	no
Suitable for ceiling mounting	yes
Suitable for surface mounting	no
Suitable for light line configuration	no
Operation by Bluetooth	no
Compatible with Apple HomeKit	no
Compatible with Google Assistant	no
Compatible with Amazon Alexa	no
IFTTT support available	no
Kind of disposal at the end of the life time	specific collection points, please consider the local regulations
Reflector	without
Adjustable version	no

Product contents

With light source	yes
Including LED driver	no
Cable suspension supplied with the product	no

Technical lighting specifications

Light cone	Open beam/diffuse
Colour of light	RGB
Total luminous flux [lm]	700
Beam angle [°]	120
Fit for monitor workplace acc. EN 12464-1	no
Light distributor	Diffuser
L80B10 - life time at 25 °C [h]	50000
L70B50 - life time at 25°C [h]	75000
L90B10 - life time at 25 °C [h]	25000
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%]	80
Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) [%]	70
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%]	10
Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) [%]	50
Colour controllable (RGB)	yes
Light sharing	symmetric
Light outlet	direct
Nominal lifetime	50.000 hrs (L80 B30)
Lamp type	SMD-LED
Suitable for number of lamps	1

Dimensions and weight

Length [mm]	620
Width [mm]	620
Height [mm]	10
Weight [g]	5050
Installation length (lay-in luminaire) [mm]	600
Installation width (lay-in luminaire) [mm]	600
Light portal opening [mm]	566

Material and colour

Material	aluminium nature/diffuser and light guide made of PMMA (non-yellowing)
Colour	alu

Electrical specifications

Lamp power [W]	22
Voltage type	DC
Lamp holder	without
Type of wiring	Ending
Wire cross section	30 cm connecting cable with 4 free, stripped cable ends
Exchangeable LED driver	no
Dimmable	yes
Type of dimming	Led driver dependent
LED driver	LED operating device voltage-controlled
RGB interface	COM+
Nominal voltage [V]	12
Electrical connection with connector system	no
