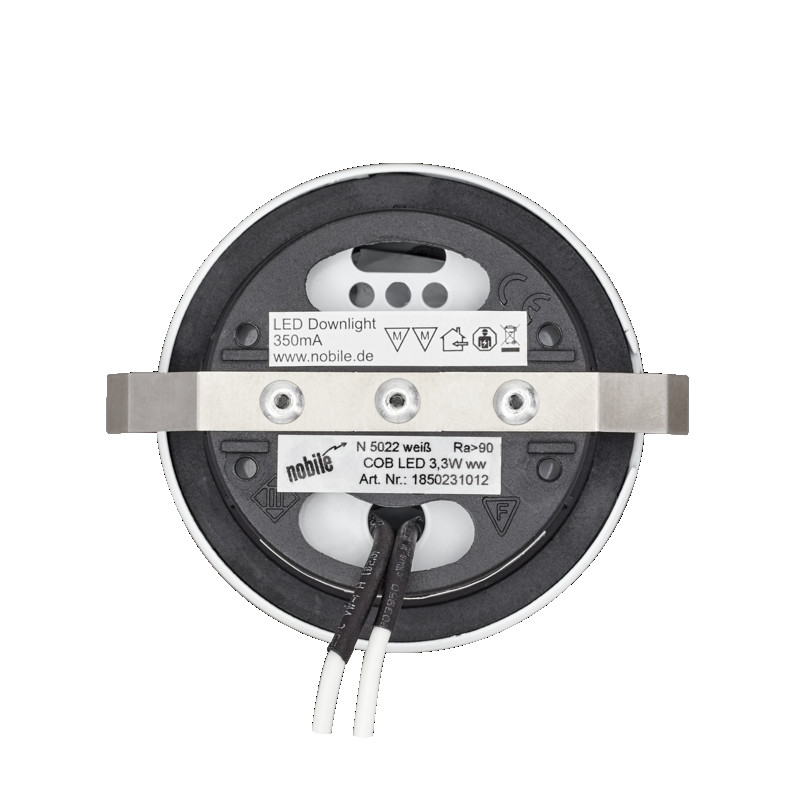

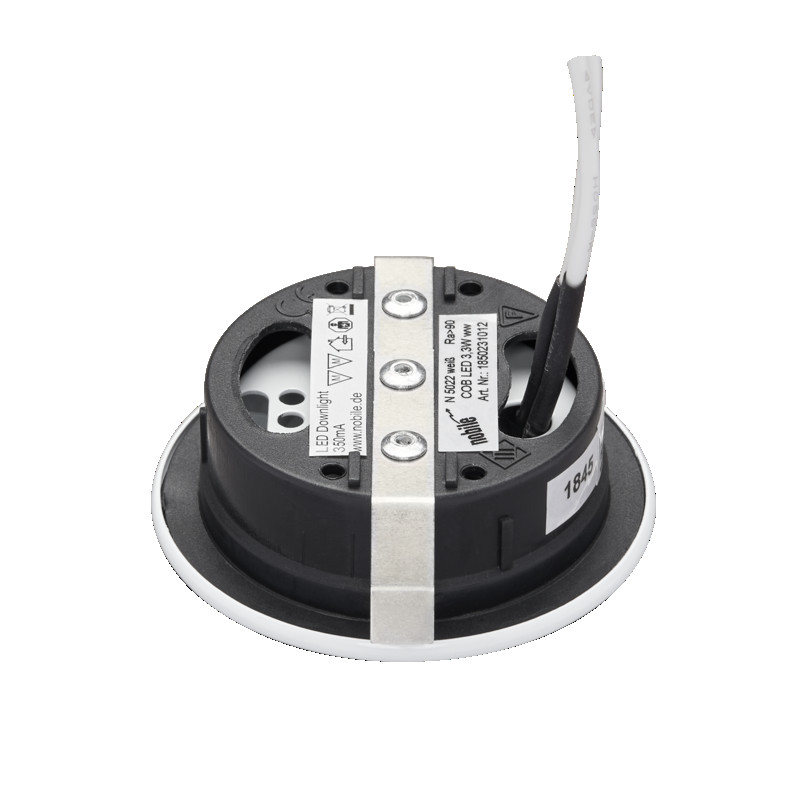

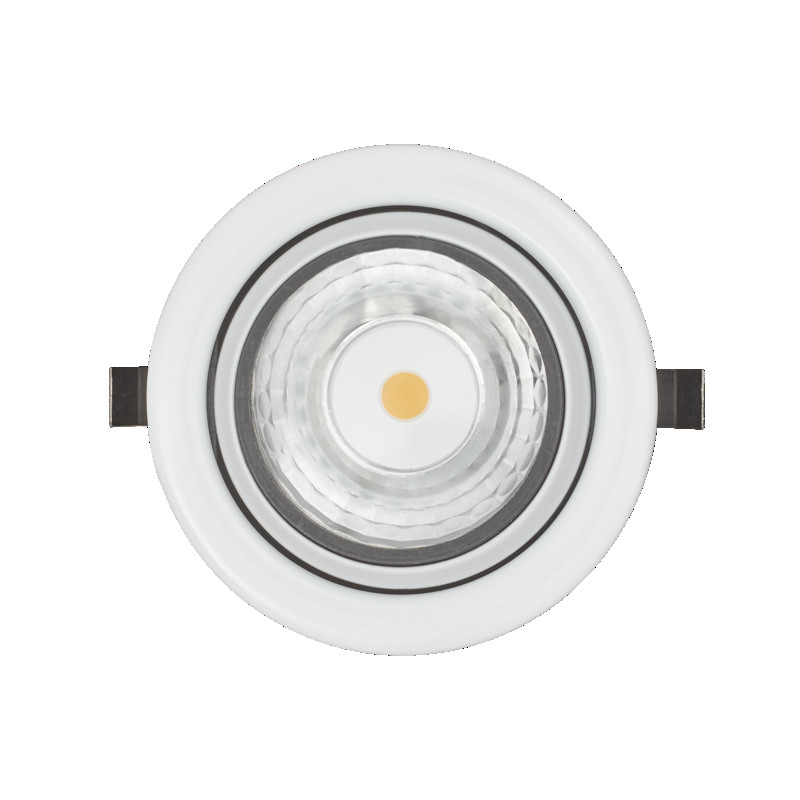

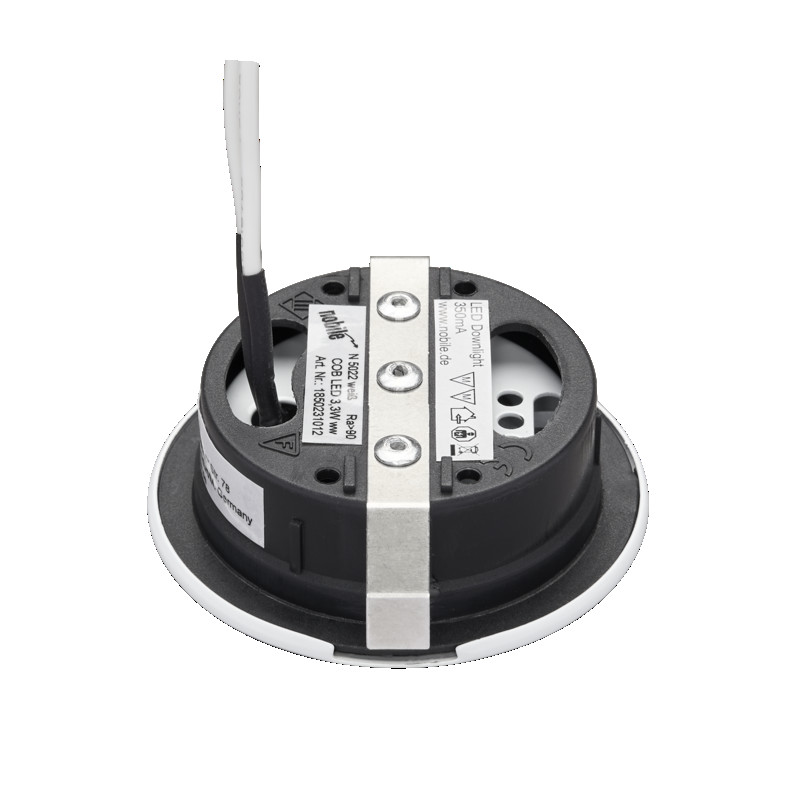

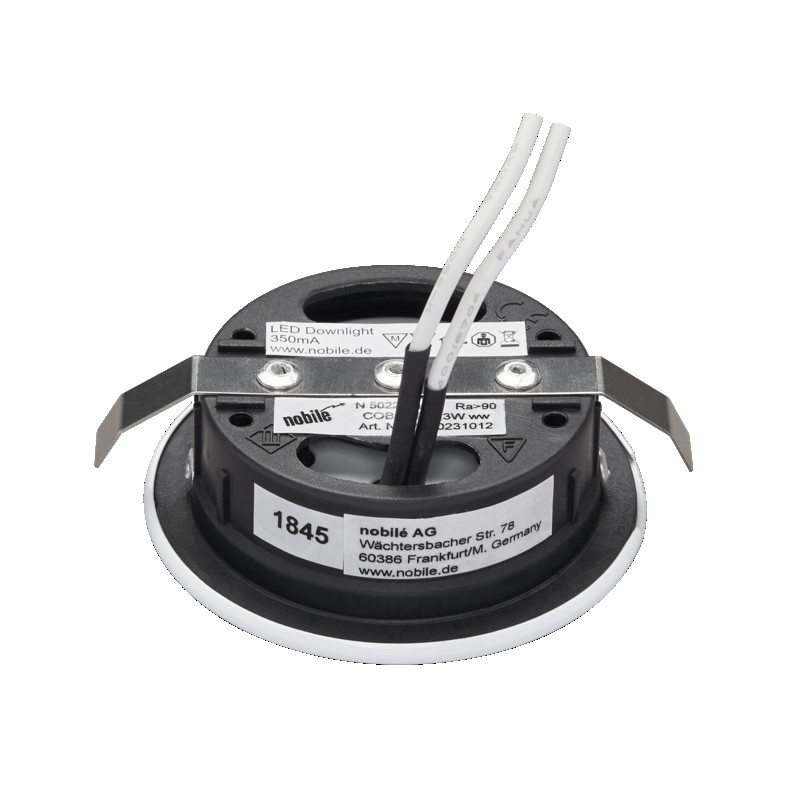

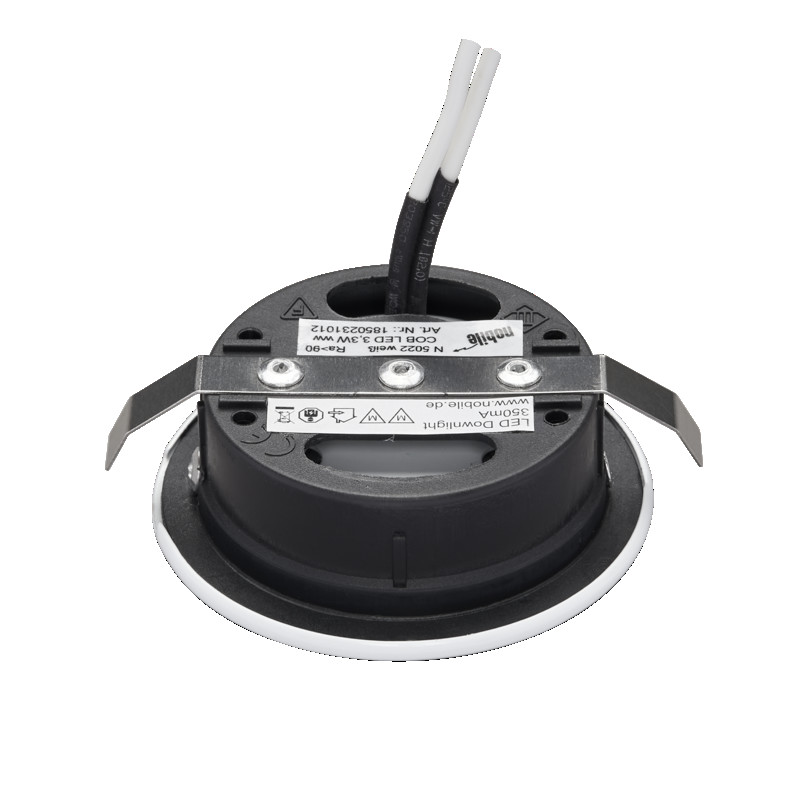

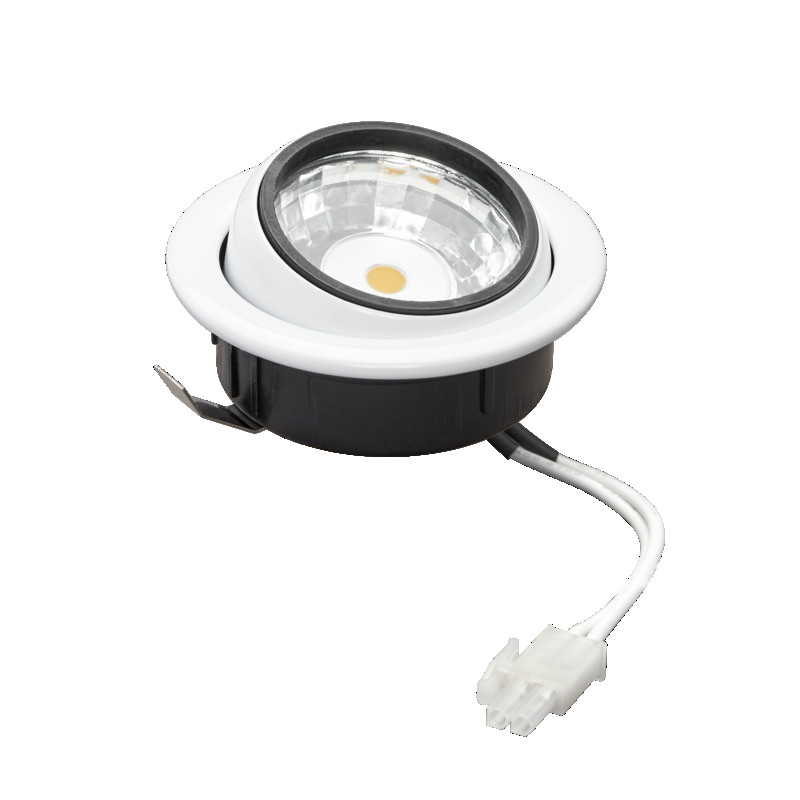

N 5022 COB LED white 3.3W ww
Recessed LED Downlight for furniture use, COB LED, adjustable
SKU:
1850231012
EAN: 4044538047720
EAN: 4044538047720
Adjustable downlight for furniture use with heat resistant cover glass.
Material: steel/synthetic material/glass clear
Surface: painted or galvanized
Colour rendering index Ra: 90
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
Recommendation LED driver: EL-350mA CC series
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP20 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' yes Note ensure constant convection and do not cover by insulation material - Product contents
With light source yes Including LED driver no - Technical lighting specifications
Light cone Extreme wide beam >80° Colour temperature [K] 3000 Colour of light warm white LED efficiency [lm/W] 59 Total luminous flux [lm] 190 Beam angle [°] 100 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 90 Colour rendering index R9 70 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 95 Light distributor reflector L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Colour controllable (RGB) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type COB LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 68 Width [mm] 68 Diameter [mm] 68 Height [mm] 29 Weight [g] 54 Ceiling cut-out [diameter] [mm] 58 Built-in depth [mm] 23 - Other specifications
Operation by Bluetooth no Adjustability Swivelling Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Adjustable [°] 14 Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector Aluminum reflector Suitable for lighting accessories no - Material and colour
Reflector colour silver Front glass glass clear Material steel/synthetic material/glass Colour white Surface finishing painted - Electrical specifications
Type of LED driver LED driver Lamp power [W] 3,3 Constant current [mA] 350 Lamp holder without Exchangeable LED driver yes Dimmable yes Length of cable [cm] 10 Through-wiring possible no Electrical connection with connector system yes Type of connection [luminaire] AMP plug-system 2-pole
