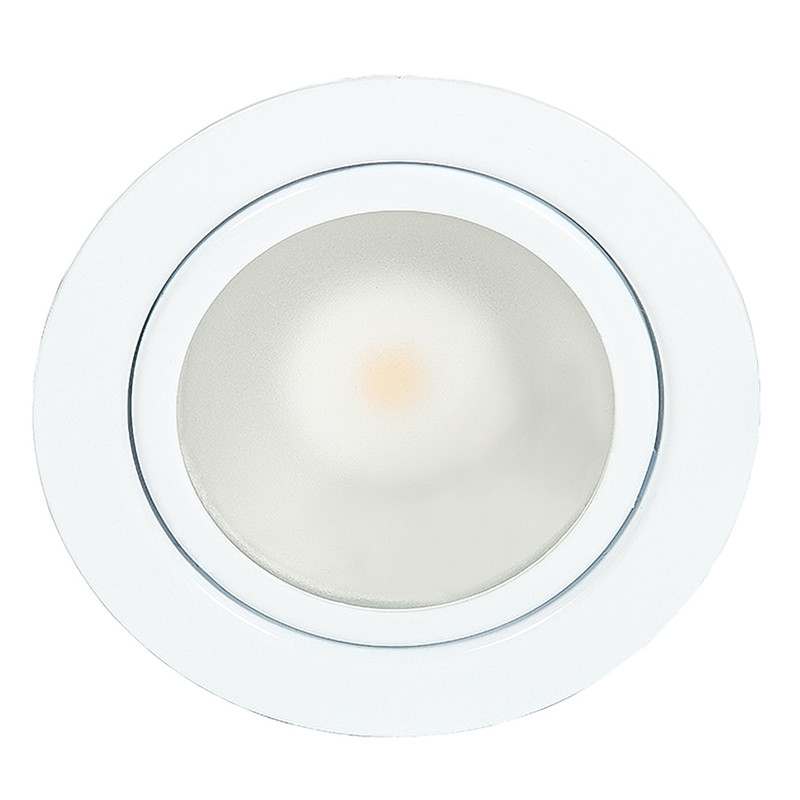

N 5020 COB LED white Set 3x3.3W warm white
LED Downlight for furniture use, COB LED, adjustable
SKU:
1550201000
EAN: 4044538047454
EAN: 4044538047454
Adjustable LED downlight for furniture use with heat resistant glass. Easy and rapid installation as all required components are included.
Set consists of: 3 LED downlights, 1 LED driver EL-12-350 (for 3 downlights connected in series) with 1 power cord 1.8 m and Euro plug and with 1 connecting cable 0.5 m and AMP plug-system, 3 T-Splitter 0.8 m with AMP plug-system, 3 extension cables 1.5 m with AMP plug-system, 1 jumper with AMP plug-system
Material: steel/synthetic material/glass satined
Surface: painted or galvanized
Colour rendering index Ra: 95
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class II Degree of protection IP20 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation in insulated ceilings, fire protection 'F with roof' no Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Product contents
With light source yes Including LED driver yes - Technical lighting specifications
Light cone Extreme wide beam >80° Colour temperature [K] 3000 Colour of light warm white Total luminous flux [lm] 190 Beam angle [°] 86 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 95 Colour rendering index R9 78 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 94 L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Colour controllable (RGB) no Light sharing symmetric Light outlet indirect Lamp type COB LED Suitable for number of lamps 1 - Dimensions and weight

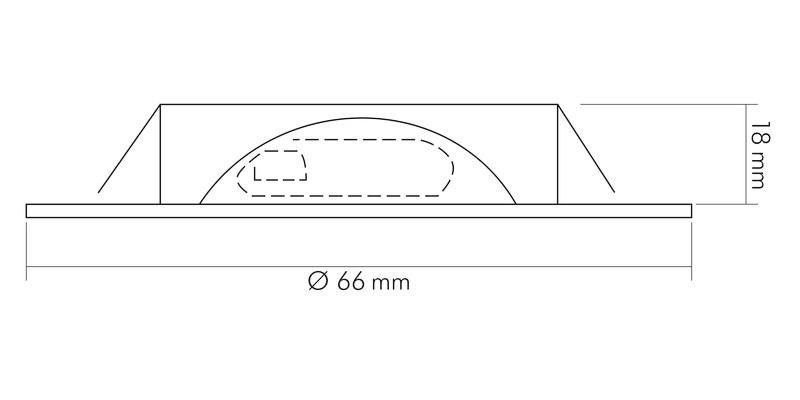

Diameter [mm] 66 Height [mm] 18 Weight [g] 203 Ceiling cut-out [diameter] [mm] 58 Built-in depth [mm] 18 - Material and colour
Reflector colour silver Front glass glass satined Material steel/synthetic material/glass Colour white Surface finishing painted - Other specifications
Operation by Bluetooth no Adjustability Not adjustable Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Suitable for lighting accessories no - Electrical specifications
Type of LED driver LED driver Lamp power [W] 3,3 Lamp holder without Exchangeable LED driver yes Dimmable no Rated voltage of the LED driver [AC/DC] [V] 220 - 240 Length of cable [cm] 30 Through-wiring possible no Rated voltage max. [V] 9,5 Electrical connection with connector system yes Type of connection [luminaire] AMP plug-system 2-pole
