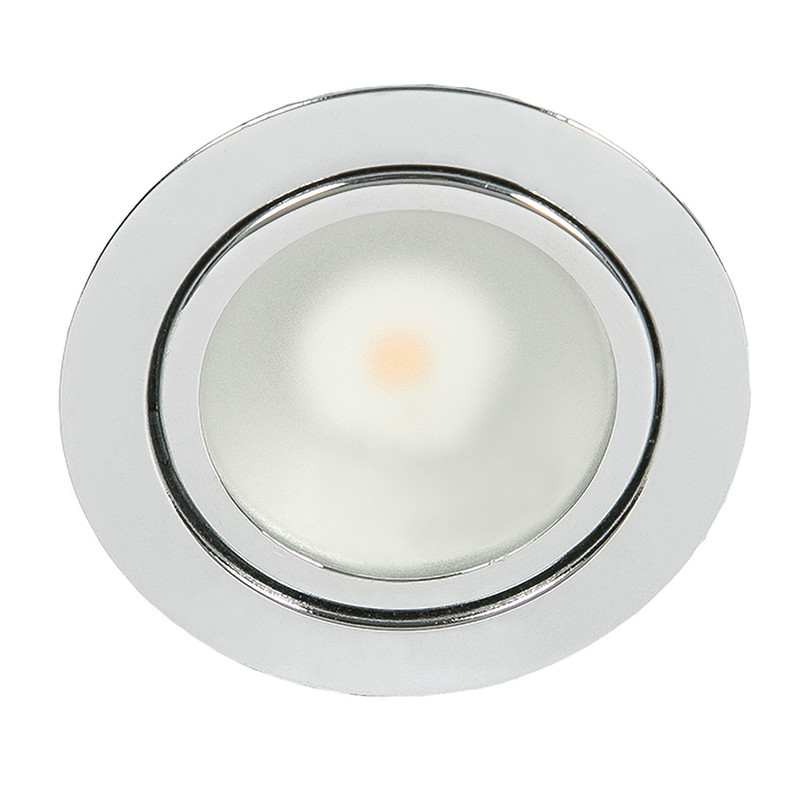

Adjustable LED downlight for furniture use with heat resistant glass. Easy and rapid installation as all required components are included.
Set consists of: 3 LED downlights, 1 LED driver EL-12-350 (for 3 downlights connected in series) with 1 power cord 1.8 m and Euro plug and with 1 connecting cable 0.5 m and AMP plug-system, 3 T-Splitter 0.8 m with AMP plug-system, 3 extension cables 1.5 m with AMP plug-system, 1 jumper with AMP plug-system
Material: steel/synthetic material/glass satined
Surface: painted or galvanized
Colour rendering index Ra: 95
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
weniger lesenCovering of the luminaire with thermally insulating material possible | no |
---|---|
CE-Conformity | yes |
RoHS | yes |
Protection class | II |
Degree of protection | IP20 |
Impact strength | IK00 |
Thermal insulation mark | yes |
Installation, electrical engineering expertise | yes |
Only for indoor use | yes |
Furniture installation, fire protection 'MM' | yes |
Installation in insulated ceilings, fire protection 'F with roof' | no |
Note | ensure constant convection and do not cover by insulation material |
Ambient temperature [Ta [°C] | 0 - 25 |
---|
With light source | yes |
---|---|
Including LED driver | yes |
Light cone | Extreme wide beam >80° |
---|---|
Colour temperature [K] | 3000 |
Colour of light | warm white |
Total luminous flux [lm] | 190 |
Beam angle [°] | 86 |
Colour consistency (MacAdam) [SDCM] | 3 |
Colour rendering index Ra | 95 |
Colour rendering index R9 | 78 |
Fit for monitor workplace acc. EN 12464-1 | no |
Peak luminous intensity [cd] | 94 |
L80B10 - life time at 25 °C [h] | 50000 |
L70B50 - life time at 25°C [h] | 50000 |
Colour controllable (RGB) | no |
Light sharing | symmetric |
Light outlet | indirect |
Lamp type | COB LED |
Suitable for number of lamps | 1 |
Diameter [mm] | 66 |
---|---|
Height [mm] | 18 |
Weight [g] | 203 |
Ceiling cut-out [diameter] [mm] | 58 |
Built-in depth [mm] | 18 |
Reflector colour | silver |
---|---|
Front glass | glass satined |
Material | steel/synthetic material/glass |
Colour | chrome |
Surface finishing | galvanized |
Operation by Bluetooth | no |
---|---|
Adjustability | Not adjustable |
Mounting method | recessed-mounted |
Suitable for general lighting | yes |
Suitable for recessed wall installation | no |
Suitable for wall mounting | no |
Kind of disposal at the end of the life time | specific collection points, please consider the local regulations |
Reflector | without |
Suitable for lighting accessories | no |
Type of LED driver | LED driver |
---|---|
Lamp power [W] | 3,3 |
Lamp holder | without |
Exchangeable LED driver | yes |
Dimmable | no |
Rated voltage of the LED driver [AC/DC] [V] | 220 - 240 |
Length of cable [cm] | 30 |
Through-wiring possible | no |
Rated voltage max. [V] | 9,5 |
Electrical connection with connector system | yes |
Type of connection [luminaire] | AMP plug-system 2-pole |
