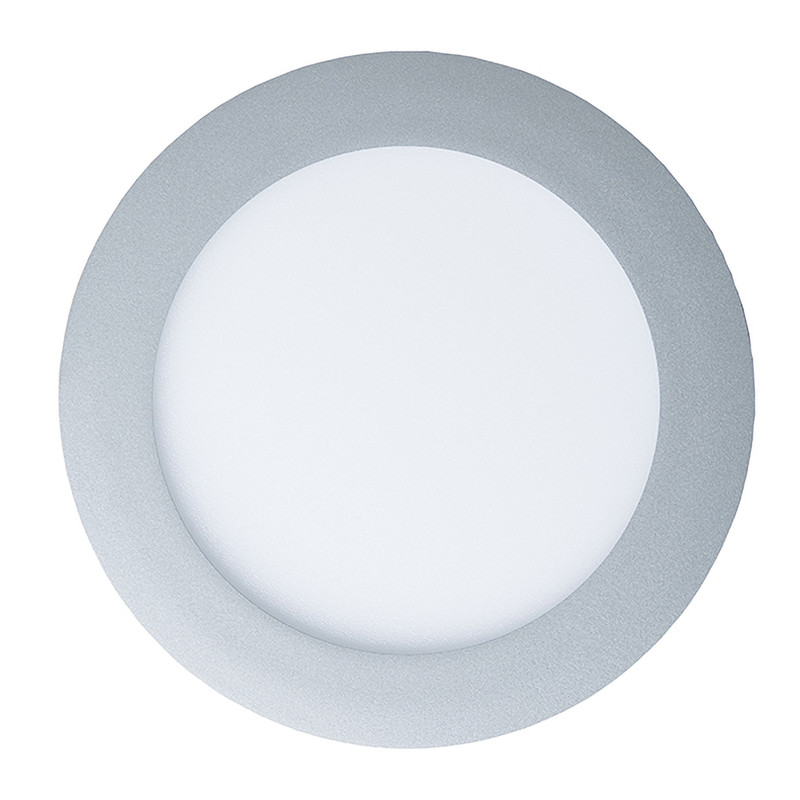

LED Panel Flat 130 R matt titanium 10W RGB 24V
LED Panel Flat 130 round
SKU:
1561304143
EAN: 4044538043814
EAN: 4044538043814
Even LED-light-distribution throughout the entire emitting surface.
Recommendation LED driver and control unit: EL-24V series and, in addition, an LED RGB-sequencer, such as Capscence Sequencer Remote.
Material: aluminium/diffuser and light guide made of PMMA (non-yellowing)
Dimensions (ØxH): 170x22 mm
RGB interface: COM+
Life time: 50.000 h (L80 B10)
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP20 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' no Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Other specifications
Type of luminaire panel luminaire Mounting method recessed-mounted Suitable for general lighting no Suitable for recessed wall installation yes Suitable for wall mounting yes Suitable for suspended mounting no Suitable for built-in mounting yes Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Product contents
With light source yes Including LED driver no - Technical lighting specifications
Light cone Open beam/diffuse Colour of light RGB Total luminous flux [lm] 145 Beam angle [°] 120 Fit for monitor workplace acc. EN 12464-1 no Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) yes Total lumen setting adjustable no Constant light output (CLO) no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight

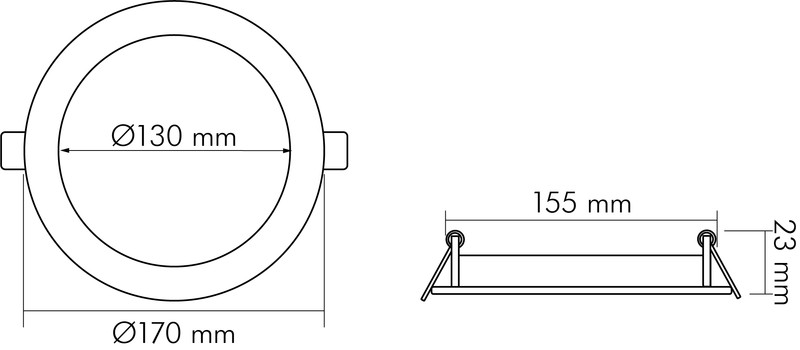

Diameter [mm] 170 Height [mm] 22 Weight [g] 325 Ceiling cut-out [diameter] [mm] 155 Built-in depth [mm] 25 Light portal opening [mm] 130 - Material and colour
Material aluminium/acrylic diffuser panel opal Colour matt titanium - Electrical specifications
Lamp power [W] 10 Voltage type DC Lamp holder without Type of wiring Ending Exchangeable LED driver no Dimmable yes Type of dimming Led driver dependent LED driver LED operating device voltage-controlled RGB interface COM+ Nominal voltage [V] 24 Electrical connection with connector system no Type of connection [luminaire] free, stripped cable ends
