Flexible Neon LED 1516 3D 10m RGB 8,6W/m 24V IP65
Flexible LED Tube 1516 with a higher IP protection
SKU:
5022640199
EAN: 4044538075914
EAN: 4044538075914

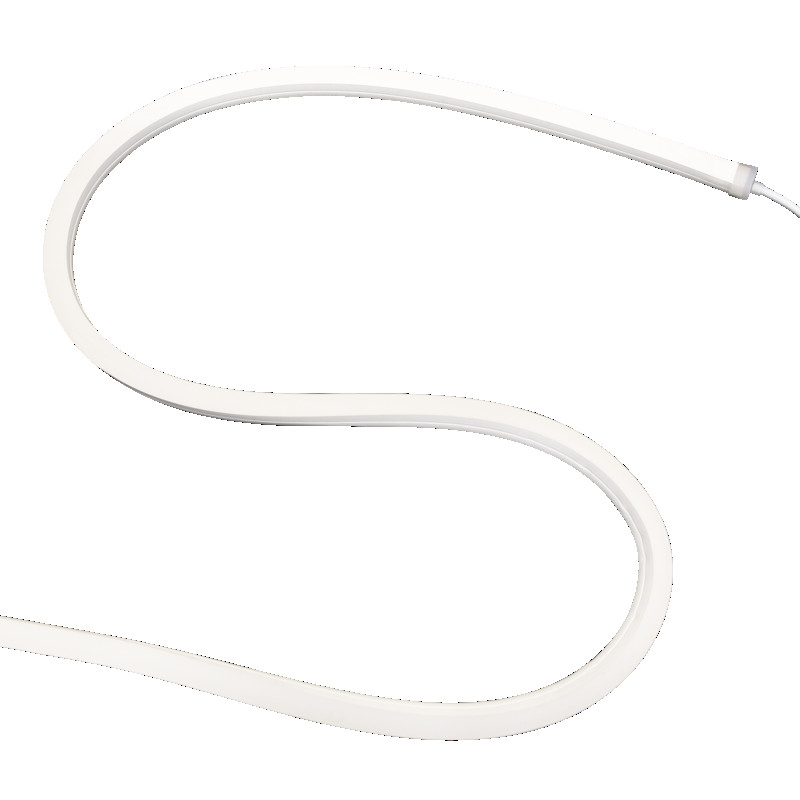

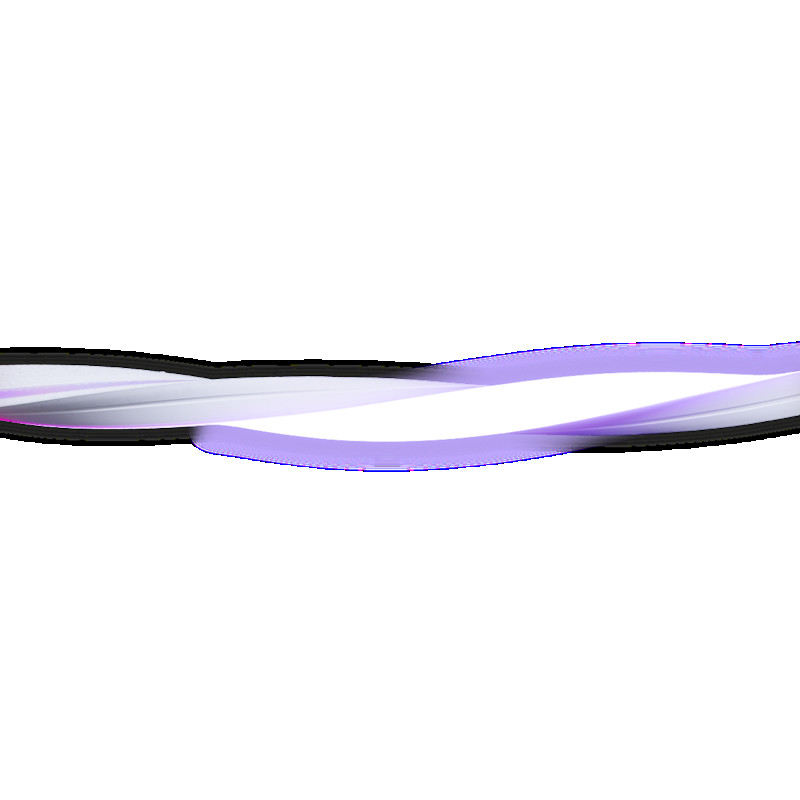

Flexible LED tube made of UV-resistant silicone with 30 cm connection cable (on both sides); can be shortened every 50 mm (6 LEDs). Can be rotated up to 360° around its own axis.
Simple installation using fixing clips and flexible rail.
Technical details:
Dimensions (LxWxH): 10000x16x15 mm
Number of LEDs: 120/m
Life time: 30,000 h (L70 B50)
Recommendation LED driver: EL-24V CV series
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] -20 - 45 - Product contents
Including LED driver no Delivery including 20 Clips (2 cm) - Dimensions and weight
Length [mm] 10000 Length of particular segments [mm] 50 Width [mm] 16 Height [mm] 15 Weight [g] 2700 - Technical lighting specifications
Suitable for number of light sources 1 Colour controllable (RGB) yes Colour of light RGB Total luminous flux per coil [lm] 2000 Total luminous flux per meter [lm] 200 Beam angle [°] 120 L70B50 - life time at 25°C [h] 30000 Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no Number of LEDs per meter 120 Number of LEDs per segment 6 - Protection specifications
Note 2 Must not be exposed to direct sun rays CE-Conformity yes RoHS yes Protection class III Degree of protection IP65 solvent resistant yes UV-resistance yes seawater resistant yes With protective cover yes Installation, electrical engineering expertise yes Only for indoor use no Furniture installation, fire protection 'MM' yes Lowest bending radius [mm] 60 - Material and colour
Colour housing white Colour of printed circuit board white Material Silicone/copper - Other specifications
Operation by Bluetooth no Compatible with Casambi no Bendable vertical yes Bendable horizontal yes Bendable yes Model tube Mounting method surface-/recessed-mounted Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Self-adhesive no Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Electrical specifications
Lamp power [W] 86 Lamp power per meter [W] 8,6 Rated current per meter [A] 0,39 Max. current handling (at 10 m length) [A] 3,9 Voltage type DC Type of wiring Suitable for through wiring Wire cross section ca. 30 cm connecting cable 4x0.5mm² on both sides Dimmable yes Type of dimming PWM LED driver LED operating device voltage-controlled RGB interface COM+ Nominal voltage [V] 24 Number of poles 4
