LED Panel surface 300 Q UGR19 white 12W 840 dim C
The luminaire convinces with its high energy efficiency as well as its clear and unobtrusive design.
The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.
Material: aluminium white painted/Microprism diffuser made of PMMA (non-yellowing)

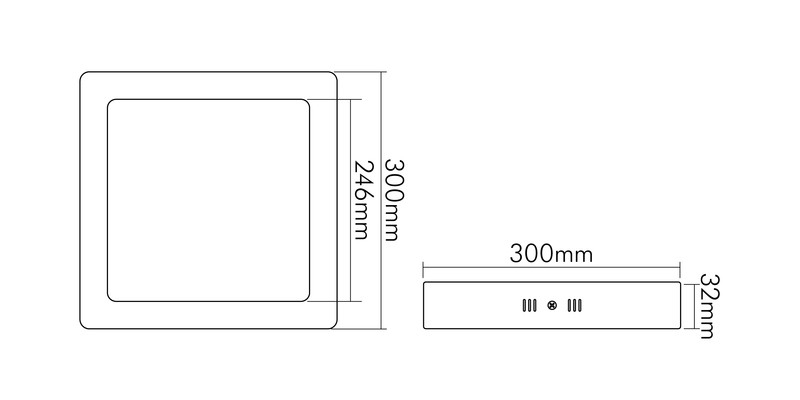

Dimensions (LxWxH): 300x300x38 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver included: dimmable with trailing edge
weniger lesen
Technical Data
-
Other specifications
Compatible with Casambi no Mounting method surface mounted Type of luminaire Surface mounted luminaire Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for built-in mounting no Suitable for ceiling mounting yes Suitable for surface mounting yes Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Ceiling fixing with fixing brackets - Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class II Degree of protection IP20 Impact strength IK00 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] surface-mounted luminaire for direct mounting on normal flammable surfaces Fire resistance 'D' no - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Material and colour
Colour housing white Material aluminium painted white/acrylic mirco prisms panel - Technical lighting specifications
Light cone Open beam/diffuse Suitable for number of light sources 1 Colour temperature [K] 4000 Colour of light neutral white LED efficiency [lm/W] 100 LED efficiency [system] [lm/W] 83 Total luminous flux [lm] 1000 Beam angle [°] 90 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 11 Unified Glare Rating [UGR] 19 Fit for monitor workplace acc. EN 12464-1 yes Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 76000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light sharing symmetric Light outlet direct Lamp type SMD-LED - Product contents
Including LED driver yes - Dimensions and weight
Length [mm] 300 Width [mm] 300 Height [mm] 38 Weight [g] 1110 - Electrical specifications
With movement sensor no Type of LED driver LED operating device current-controlled Lamp power [W] 12 Max. system power [W] 12 Rated voltage of the LED driver [AC [V] 230 Type of wiring Through wiring included Wire cross section Clamp 2x0.5-2.5 mm², 1x0.5-0.75 mm² Exchangeable LED driver yes Dimmable yes Type of dimming trailing edge Power factor (PF) 0,9
