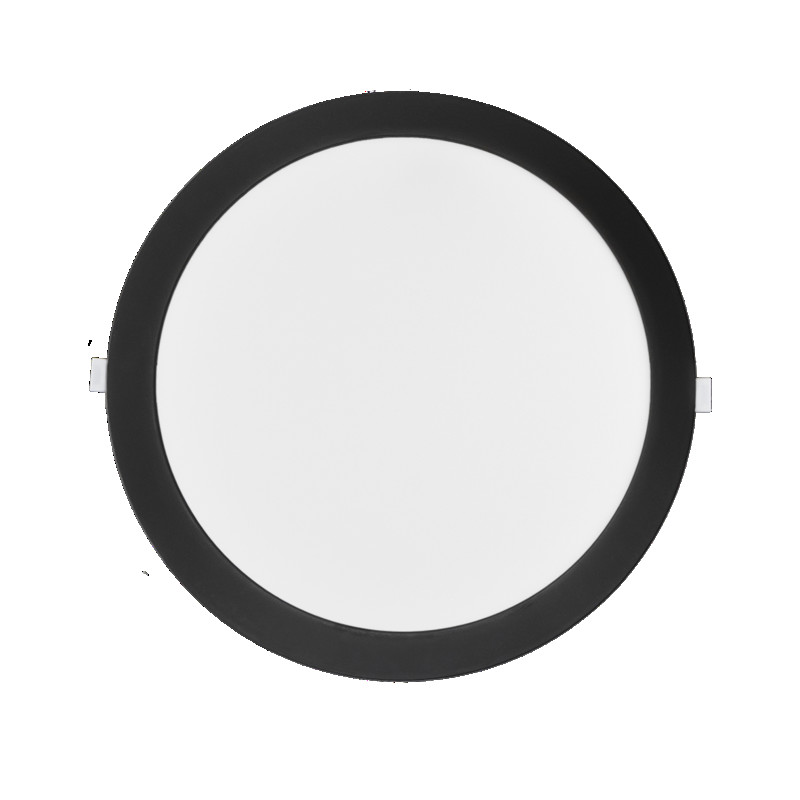

LED Panel Backlight 300 R black 18W SCCT d. Dali
EAN: 4044538076010
Switchable Color Temperature - SCCT for short.
Decide on your color temperature before installing the luminaire! Adjust it, by means of a switch, to the desired color temperature without further ado.
Material: aluminium white painted/diffuser made of PMMA (non-yellowing)
Dimensions (ØxH): 300x27 mm
Color rendering index Ra: 81
Color distance (MacAdam): 3 SDCM
Lifetime: 50,000 h (L80 B10)
LED driver included: dimmable Dali
Terminal block and through-wiring (L, N, PE)
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class II Safety class of LED driver II Degree of protection IP20 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Fire resistance 'D' no Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Material and colour
Colour housing black Surface of the housing powder coated Material steel/synthetic material - Other specifications
Compatible with Casambi no BEG funding yes Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting yes Suitable for suspended mounting no Suitable for built-in mounting yes Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Product contents
Including LED driver yes - Technical lighting specifications
Colour temperature 2 [K] 4000 Colour temperature 3 [K] 5700 Light cone Open beam/diffuse Suitable for number of light sources 1 Colour temperature [K] 3000 Colour of light warm white till halogen white LED efficiency [lm/W] 155 LED efficiency [system] [lm/W] 140 Total luminous flux at 3000 K [lm] 2800 Total luminous flux at 4000 K [lm] 2900 Total luminous flux at 5700 K [lm] 3000 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 81 Colour rendering index R9 4 Fit for monitor workplace acc. EN 12464-1 no Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 70000 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable Positions Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Color temperature control Switchable Color Temperature (SCCT) - Dimensions and weight
Diameter [mm] 300 Height [mm] 27 Weight [g] 640 Ceiling cut-out [diameter] [mm] 280 - Electrical specifications
With movement sensor no Switching cycles of the LED Driver 24500 Type of LED driver LED operating device current-controlled Lamp power [W] 18 Max. system power [W] 20 Rated voltage of luminaire [DC] [V] 51 Rated voltage of the LED driver [AC [V] 230 Input frequency [Hz] 50 Power factor [at full load] 0,7 Type of wiring Through wiring included Length of cable [luminaire] [cm] 10 Exchangeable LED driver yes Dimmable yes Type of dimming Dali 2/push Flicker free yes Type of connection [luminaire] connecting cable with jack plug-system
