LED Panel Backlight 170 R black 6W SCCT dim C

LED Panel Backlight SCCT

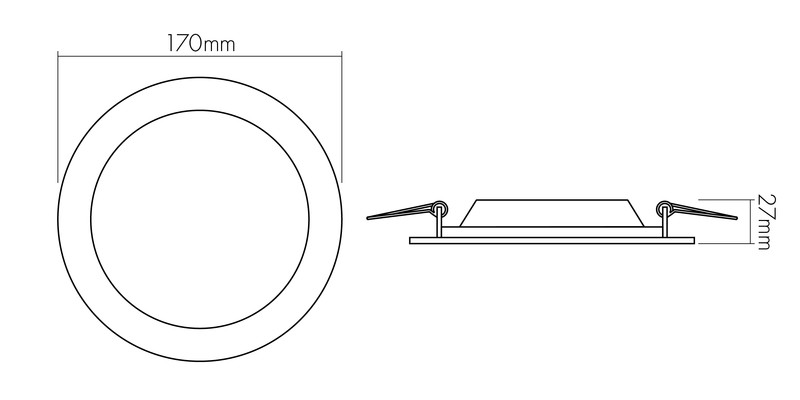

Maßzeichnung

SKU: 1611701851
EAN: 4044538075945

Switchable Color Temperature - SCCT for short.

Decide on your color temperature before installing the luminaire! Adjust it, by means of a switch, to the desired color temperature without further ado.

Material: aluminium white painted/diffuser made of PMMA (non-yellowing)

Dimensions (ØxH): 170x27 mm

Color rendering index Ra: 81

Color distance (MacAdam): 3 SDCM

Lifetime: 50,000 h (L80 B10)

LED driver included: dimmable with trailing edge

Terminal block and through-wiring (L, N, PE)

weniger lesen

Downloads

	Produktdatenblatt

Technical Data

Protection specifications

Covering of the luminaire with thermally insulating material possible	no
CE-Conformity	yes
RoHS	yes
Protection class	II
Safety class of LED driver	II
Degree of protection	IP20
Impact strength	IK00
Thermal insulation mark	yes
Installation, electrical engineering expertise	yes
Only for indoor use	yes
Furniture installation, fire protection 'MM'	yes
Installation note [flammable materials]	recessed luminaire suitable for direct mounting on normal flammable surfaces
Fire resistance 'D'	no
Note	ensure constant convection and do not cover by insulation material

Temperature specifications

Ambient temperature [Ta [°C]	0 - 25

Material and colour

Colour housing	black
Surface of the housing	powder coated
Material	steel/synthetic material

Other specifications

Compatible with Casambi	no
BEG funding	yes
Mounting method	recessed-mounted
Suitable for general lighting	yes
Suitable for recessed wall installation	yes
Suitable for wall mounting	yes
Suitable for suspended mounting	no
Suitable for built-in mounting	yes
Suitable for ceiling mounting	yes
Suitable for surface mounting	no
Suitable for light line configuration	no
Operation by Bluetooth	no
Compatible with Apple HomeKit	no
Compatible with Google Assistant	no
Compatible with Amazon Alexa	no
IFTTT support available	no
Kind of disposal at the end of the life time	specific collection points, please consider the local regulations

Product contents

Including LED driver	yes

Technical lighting specifications

Colour temperature 2 [K]	4000
Colour temperature 3 [K]	5700
Light cone	Open beam/diffuse
Suitable for number of light sources	1
Colour temperature [K]	3000
Colour of light	warm white till halogen white
LED efficiency [lm/W]	150
LED efficiency [system] [lm/W]	120
Total luminous flux at 3000 K [lm]	900
Total luminous flux at 4000 K [lm]	950
Total luminous flux at 5700 K [lm]	950
Beam angle [°]	120
Colour consistency (MacAdam) [SDCM]	3
Colour rendering index Ra	81
Colour rendering index R9	3
Fit for monitor workplace acc. EN 12464-1	no
Light distributor	Diffuser
L80B10 - life time at 25 °C [h]	50000
L70B50 - life time at 25°C [h]	70000
Colour controllable (RGB)	no
Total lumen setting adjustable	no
Colour temperature adjustable	Positions
Constant light output (CLO)	no
Light source replaceable	no
Light sharing	symmetric
Light outlet	direct
Lamp type	SMD-LED
Color temperature control	Switchable Color Temperature (SCCT)

Dimensions and weight

Diameter [mm]	170
Height [mm]	27
Weight [g]	230
Ceiling cut-out [diameter] [mm]	155

Electrical specifications

With movement sensor	no
Switching cycles of the LED Driver	24500
Type of LED driver	LED operating device current-controlled
Lamp power [W]	6
Max. system power [W]	7,5
Rated voltage of luminaire [DC] [V]	18
Rated voltage of the LED driver [AC [V]	230
Input frequency [Hz]	50
Power factor [at full load]	0,6
Type of wiring	Through wiring included
Length of cable [luminaire] [cm]	10
Exchangeable LED driver	yes
Dimmable	yes
Type of dimming	trailing edge
Type of connection [luminaire]	connecting cable with jack plug-system
