Flexible LED SMD 2835 10m 965 14,4W/m 48V IP20

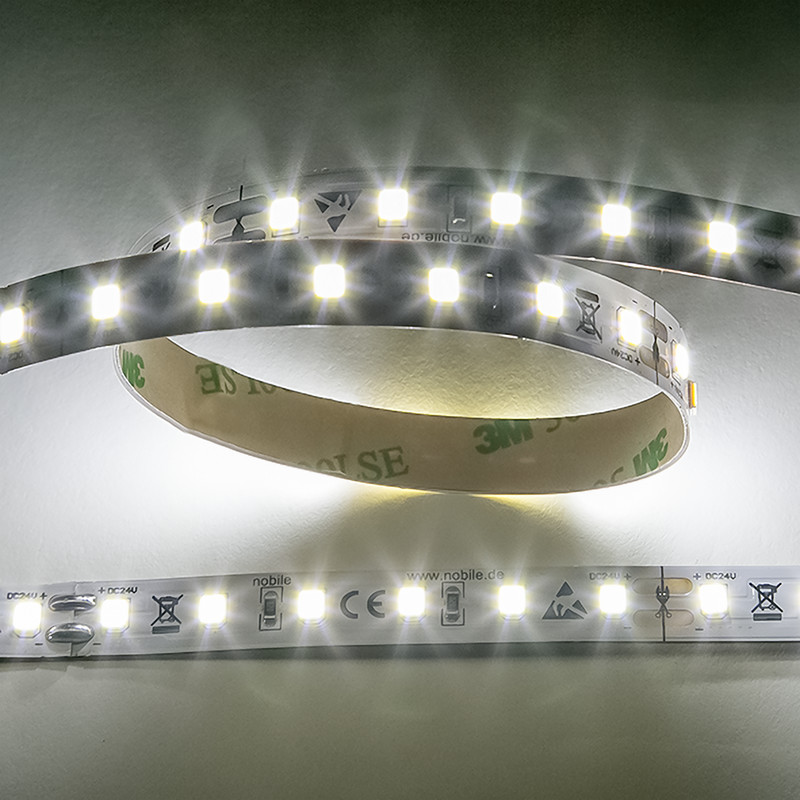

Flexible LED Tape with SMD 2835, self-adhesive
SKU:
5011305957
EAN: 4044538075693
EAN: 4044538075693

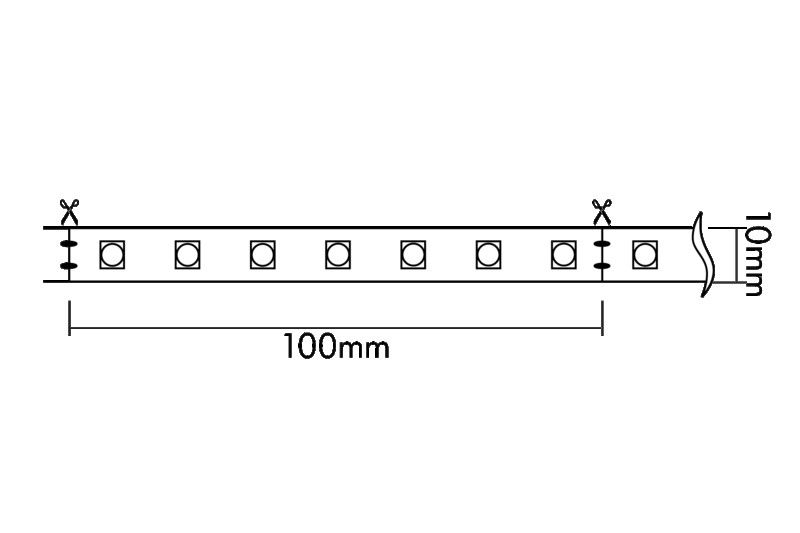

Highly flexible LED strip with self-adhesive backing for quick and easy fixing, with 30 cm connection cable (on both sides); can be shortened every 100 mm (7 LEDs).
The maximum connected load must not exceed 288 W (corresponds to a length of 20 m).
Sufficient cooling of the Flexible LED must be ensured. Installation on materials with good thermal conductivity, such as the aluminum profile, is necessary.
Dimensions (WxH): 10x1.2 mm
Number of LEDs: 70/m
Color rendering index Ra: 90
Color distance (MacAdam): 3 SDCM
Service life: 30,000 h (L70 B50)
Control gear recommendation: EL-48V CV series
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Product contents
Including LED driver no With connection set no With end piece no Incl. end cap no - Technical lighting specifications
Non-directional (NDLS) or directional [DLS] DLS Colour temperature [K] 6500 Total luminous flux per coil [lm] 14600 Total luminous flux per meter [lm] 1460 Useful luminous flux (Φuse) per meter [lm] 1200 Useful luminous flux [Φuse] per coil [lm] 12000 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 90 Colour rendering index R9 70 Peak luminous intensity [cd] 500 L70B50 - life time at 25°C [h] 30000 L90B10 - life time at 25 °C [h] 26000 Colour-tuneable light source no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no Number of LEDs per meter 70 Number of LEDs per segment 7 Lamp type SMD-LED - Dimensions and weight
Length [mm] 10000 Length of particular segments [mm] 100 Width [mm] 10 Height [mm] 1,2 Weight [g] 120 - Protection specifications
CE-Conformity yes RoHS yes EMC Standard EN 61547:2009; EN 55015:2013+A1:2015; EN 6100-3-2:2014; EN 6100-3-3:2013 LVD Standard EN 60598-2-20:2015; EN 60598-1:2015 Protection class III Degree of protection IP20 With protective cover no Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Lowest bending radius [mm] 30 Note mounting on heat-conductive material is necessary - Material and colour
Colour of printed circuit board white Material PVC/copper - Other specifications
Compatible with Casambi no Bendable yes Model tape Mounting method surface-/recessed-mounted Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Self-adhesive yes Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Electrical specifications
Lamp power per meter [W] 14,4 Rated current per meter [A] 0,304 Max. current handling (at 20 m length) [A] 6,08 Voltage type DC Lamp holder without Type of wiring Suitable for through wiring Wire cross section 30 cm connecting cable on both sides Exchangeable LED driver no Dimmable yes Suitable for dimmer yes Type of dimming PWM LED driver LED operating device voltage-controlled Nominal voltage [V] 48 Lamp type exchangeable no Number of poles 2 Conductor cross section [mm²] 0,32
