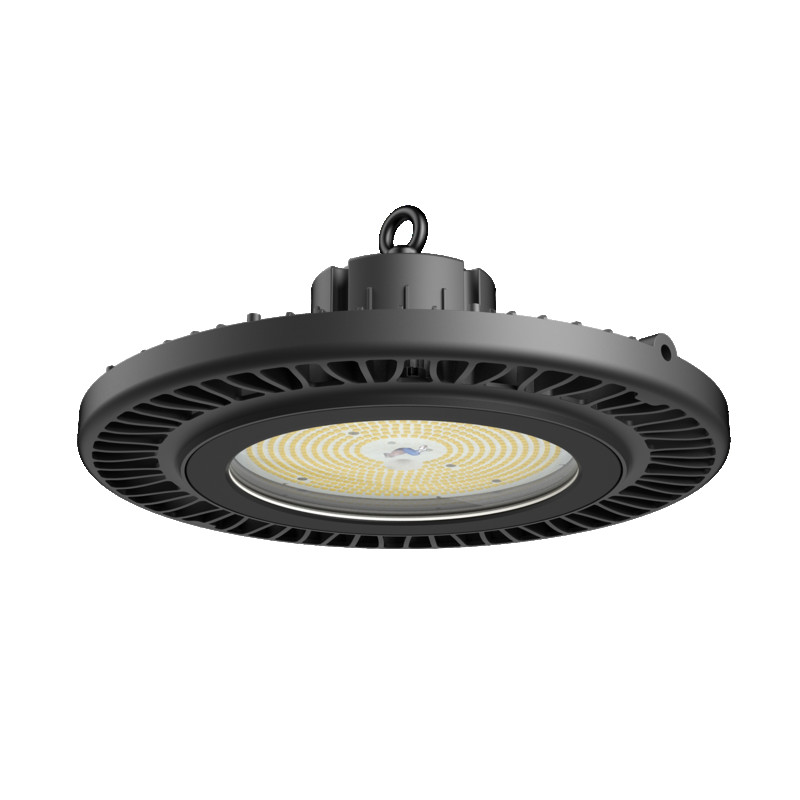

LED High Bay 160W 840 120° dim Dali
Round LED High Bay for suspended mounting
SKU:
1743221611
EAN: 4044538075488
EAN: 4044538075488
The main requirements to industrial and hall lighting are long lifetime, functionality and robustness.
The LED High Bay combines these requirements with perfect brightness and high luminous flux. All these make it possible to create first-class light solutions for your projects.
The LED High Bay with high protection class is ideally suitable for rough operation conditions, too.
Applications: high rooms, halls, warehouses, manufacturing halls, trade and exhibition halls
Material: aluminium powder coated
Dimensions (ØxH): 360x176 mm
Protection cover:glass
Colour rendering index Ra: 83
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver integrated: dimmable Dali
Mounting: 1-point suspension by link chain at centrally arranged ring eyelet
Please note: link chain for suspension is not included
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] -20 - 55 - Product contents
With light source yes Including LED driver yes - Other specifications
Operation by Bluetooth no BEG funding yes Type of luminaire industrial light Mounting method pendulum Suitable for suspended mounting yes Kind of disposal at the end of the life time by the manufacturer Reflector without - Dimensions and weight
Length [mm] 360 Width [mm] 360 Diameter [mm] 360 Height [mm] 176 Weight [g] 4000 Light portal opening [diamter] [mm] 194 - Material and colour
Material housing aluminium Colour housing black Surface of the housing powder coated Material diffuser glass Diffuser surface transparent Material of reflector without reflector - Technical lighting specifications
LED efficiency [system] [lm/W] 152 Light cone Extreme wide beam >80° Suitable for number of light sources 1 Beam angle adjustable no Colour temperature [K] 4000 Colour of light neutral white Total luminous flux [lm] 24400 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 83 Colour rendering index R9 9 Light distributor without L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 70000 L90B10 - life time at 25 °C [h] 35000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type SMD-LED - Protection specifications
Safety transformer yes Surge protection yes chlorine resistant yes CE-Conformity yes RoHS yes Protection class I Degree of protection IP65 Impact strength IK09 Ball-prrof no Short-circuit protected yes Protection against overheating yes Temperature protection shutdown at [°C] 105 Photobiological safety according to EN 62471 RG1 Filament test according to IEC 60695-2-10 [°C] 650 ENEC-Test mark ENEC 05 With protective cover yes Ammonia resistant yes Sulphur resistant yes Luminaire with limited surface temperature, sign 'D“ yes Installation, electrical engineering expertise yes Only for indoor use yes Fire resistance 'D' yes - Electrical specifications
Conductor cross section dimming interface [mm²] 0,32 Lamp power [W] 160 Max. system power [W] 160 Voltage type AC/DC Input frequency [Hz] 50 Power factor [at full load] 0,95 Quantity on MCB B16 (max.) 14 Quantity on MCB C16 (max.) 15 Total harmonic distortion 0,15 Leakage current [mA] 200 Sink current (dimming) [mA] 100 Lamp holder without Type of wiring Ending Connection type primary [LED driver] free, stripped wire ends Length of cable primary [LED driver] [cm] 30 Cable conductor quantity primary 3 Connection dimmer interface free, stripped wire ends Cable length dimmer interface [cm] 20 Exchangeable LED driver no Dimmable yes Type of dimming Dali Dimming range [%] 10 - 100 Flicker free yes Driver integrated yes LED driver LED operating device current-controlled Input voltage [AC] [V] 100 - 277 Input voltage [DC] [V] 141 - 276 Input current [cold start at 230V AC] [A] 80 Input current [at 230V AC] [A] 0,72 Number of poles 3 Conductor cross section [mm²] 1 Efficiency/Power factor at full load [%] 94
