Radiator thermostat LCD display BT

Smartmatic 2.0 Radiator thermostat LCD display BT

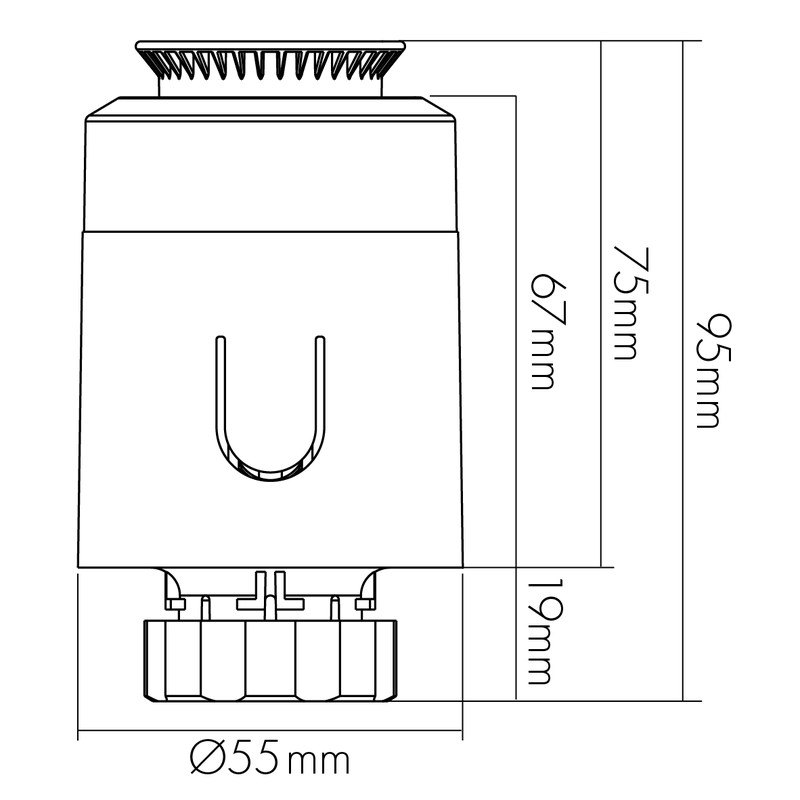

Maßzeichnung

SKU: 9109011018
EAN: 4044538074603

The radiator thermostat can be installed quickly and easily on all standard radiators. With the Smartmatic 2.0 app, you have full control over your energy consumption at all times and from anywhere.

Material: Plastic

Dimension (ØxH): 55x95 mm

Transmission protocol: BLE 4.2 (Mesh)

Battery operated

weniger lesen

Downloads

	Produktdatenblatt

Technical Data

Temperature specifications

Adjustment range [°C]	5 - 30
Blocking/limiting adjustment range	yes
Ambient temperature [Ta [°C]	0 - 50

Material and colour

Material housing	synthetic material
Colour housing	white

Dimensions and weight

Length [mm]	95
Width [mm]	55
Height [mm]	55
Weight [g]	150

Product contents

battery number	2
Battery included	no

Protection specifications

Frost protected	yes
CE-Conformity	yes
RoHS	yes
Only for indoor use	yes

Other specifications

Compatible with Casambi	no
Suitable for radiator	yes
Operation by app	yes
Operation by Bluetooth	yes
Compatible with Apple HomeKit	no
Compatible with Google Assistant	no
Compatible with Amazon Alexa	no
Kind of disposal at the end of the life time	specific collection points, please consider the local regulations
APP	Smartmatic 2.0

Electrical specifications

Connection to valve	M30 x 1.5
Type of battery	Alkaline
Radio frequency [GHz]	2,4
Power supply	battery
Control system	2.4GHz, Smartmatic
Transmission protocol	BLE 4.2 (Mesh)
Transmission power [dBm]	10
Supported operating systems (OS)	Android/iOS
Radio range outdoors [m]	10
