LED Panel Backlight 62S UGR19 weiß 30W SCCT MP
LED Panel Backlight SCCT
SKU:
1590481147
EAN: 4044538072500
EAN: 4044538072500
Switchable Color Temperature - kurz SCCT.
Entscheiden Sie sich vor der Installation der Leuchte für Ihre Farbtemperatur! Stellen Sie diese, mittels einem Schalter, kurzerhand auf die gewünschte Farbtemperatur ein.
Die Leuchte ist mit einer Blendungsbegrenzung UGR≤19 und einer Leuchtdichte von <3000cd/m² bei y ≥ 65° nach EN-12464 für die Beleuchtung von Bildschirmarbeitsplätzen geeignet.
Material: Aluminium weiß lackiert/ Microprismenscheibe aus PMMA (vergilbungsfrei)

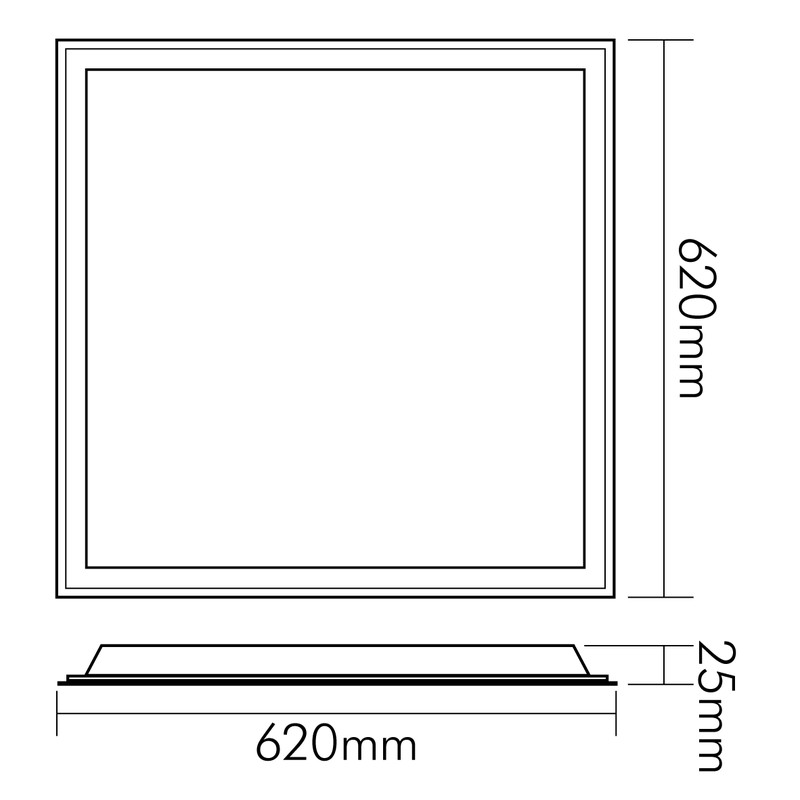

Abmessungen (LxBxH): 620x620x25 mm
Deckenausschnitt (LxB) als Einlegeleuchte: 602x602 mm
Farbwiedergabeindex Ra: 80
Farbabstand (MacAdam): 3 SDCM
Lebensdauer: 60.000 h (L80 B10)
Betriebsgerät inklusive: nicht dimmbar
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class II Safety class of LED driver II Degree of protection IP40 Impact strength IK04 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Fire resistance 'D' no Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 40 - Material and colour
Material housing aluminium Colour housing white Housing colour (RAL) 9016 Surface of the housing painted Material diffuser PMMA Surface texture of the diffuser micro prismatic - Other specifications
Compatible with Casambi no Type of luminaire prism luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for suspended mounting no Suitable for built-in mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Product contents
With light source yes Including LED driver yes Canopy inclusive no Part number of the delivered LED driver 8970380900 - Dimensions and weight
Length [mm] 620 Width [mm] 620 Height [mm] 25 Weight [g] 1950 Light outlet opening [lenght] [mm] 555 Light outlet opening [width] [mm] 555 Installation length (lay-in luminaire) [mm] 602 Installation width (lay-in luminaire) [mm] 602 - Technical lighting specifications
Colour temperature 2 [K] 4000 Colour temperature 3 [K] 6500 Light cone Open beam/diffuse Suitable for number of light sources 1 Colour temperature [K] 3000 LED efficiency [lm/W] 150 LED efficiency [system] [lm/W] 125 Total luminous flux at 3000 K [lm] 4100 Total luminous flux at 4000 K [lm] 4500 Total luminous flux at 6500 K [lm] 4500 Beam angle [°] 85 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 12 Unified Glare Rating [UGR] 19 Anti-glare limiting [UGR] lengthwise 18,5 Anti-glare limiting [UGR] crosswise 18,5 Fit for monitor workplace acc. EN 12464-1 yes Luminance y ≥ 65° ≤3000 cd/m2 Light distributor Diffuser L80B10 - life time at 25 °C [h] 60000 L70B50 - life time at 25°C [h] 70000 Colour controllable (RGB) no Total lumen setting adjustable Positions Colour temperature adjustable Positions Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type SMD-LED Color temperature control Switchable Color Temperature (SCCT) - Electrical specifications
With movement sensor no Lamp power 2 [W] 22 Lamp power 3 [W] 16 Type of LED driver LED operating device current-controlled Lamp power [W] 30 Max. system power [W] 36 Nominal current of luminaire [mA] 900 Rated voltage of luminaire [DC] [V] 34 Rated voltage of the LED driver [AC [V] 220 - 240 Input frequency [Hz] 50 - 60 Power factor [at full load] 0,9 Quantity on MCB B10 (max.) 13 Quantity on MCB B16 (max.) 22 Quantity on MCB C10 (max.) 23 Quantity on MCB C16 (max.) 36 Lamp holder without Type of wiring Through wiring included Length of cable [luminaire] [cm] 30 Cable cross section [luminaire] [mm²] 0,5 Length of cable secondary [LED driver] [cm] 15 Cable cross section secondary [LED driver] [mm²] 0,5 Exchangeable LED driver yes Dimmable no Flicker free yes Rated current of the LED driver (at 230V AC) max. [A] 0,16 LED driver LED operating device current-controlled Electrical connection with connector system no Type of connection [luminaire] connecting cable with jack plug-system
