The powerful built-in solution especially qualified for use in rooms with a glare limitation UGR≤19. The luminaire has a luminance of <3000cd/m² at 65° according to EN-12464 and complies with the current standards for VDU workplaces.
These features enable high flexibility for the interior design independent of the arrangement of the luminaires in the room.
Material: aluminium white painted/diffuser and light guide made of PMMA (non-yellowing)
Dimensions (LxWxH): 595x595x9 mm
Ceiling cut-out (LxW) recessed version: 582x582 mm
Ceiling cut-out (LxW) lay-in version: 580x580 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
Betriebsgerätempfehlung:
Part no. 8970421052 EL-42-1050 DS non-dimmable
Part no. 8970441050 EL-44-1050 dimmable 1-10V
Part no. 8970451070 EL-45-1050 dimmable Dali
Material: Aluminium weiß lackiert/Diffusorscheibe und Lightguide aus PMMA (vergilbungsfrei)
Abmessungen (LxBxH): 595x595x9 mm
Deckenausschnitt (LxB) Einbauleuchte: 582x582 mm
Deckenausschnitt (LxB) Einlegeleuchte: 580x580 mm
UGR≤19 für Office Anwendungen gemäß EN 12464
Farbwiedergabeindex Ra: 80
Farbabstand (MacAdam): 3 SDCM
Lebensdauer: 50.000 h (L80 B10)
weniger lesenSKU | Description | |
---|---|---|

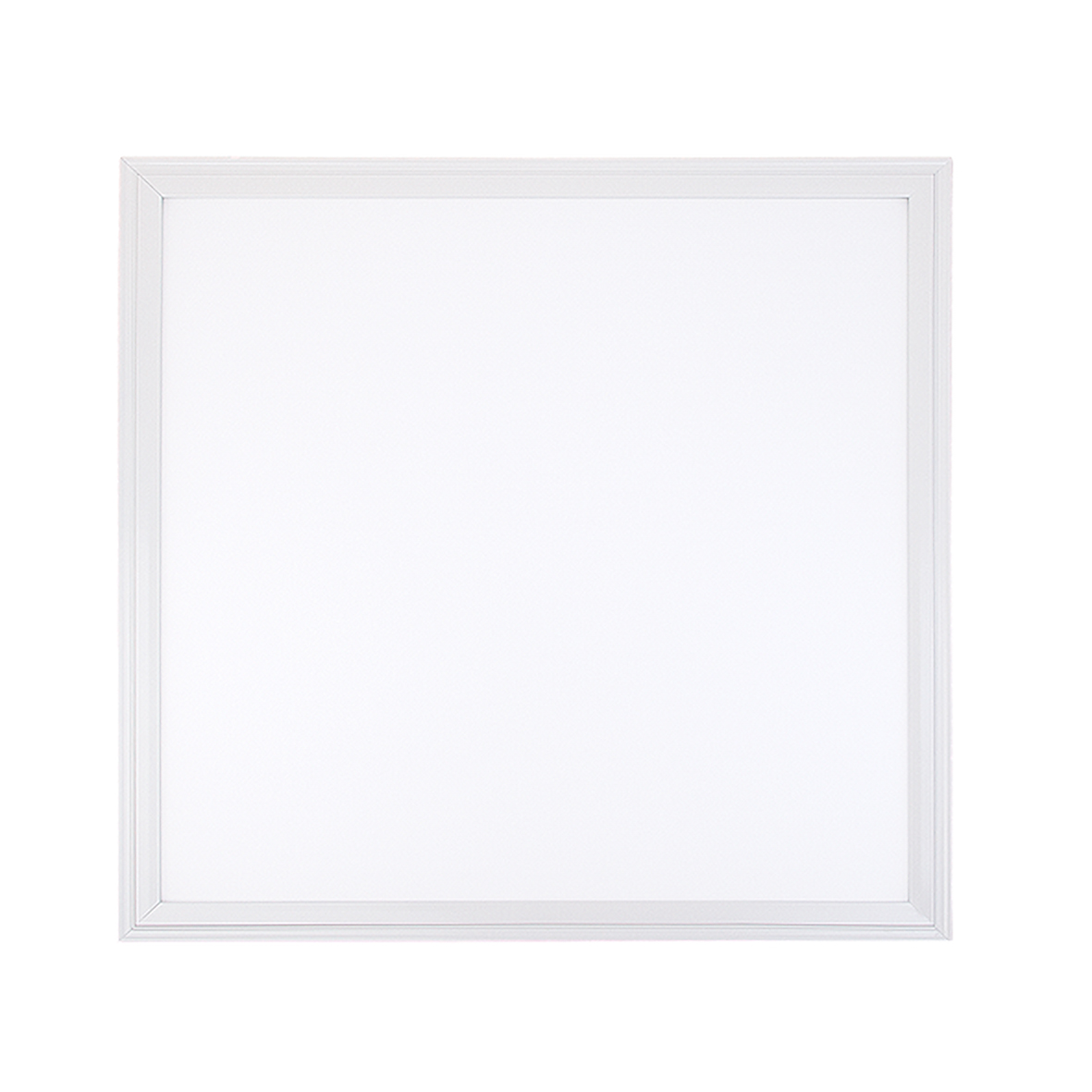

1570461116 | LED Panel Q2S 600 UGR19 white 28W 840 1050mA |
