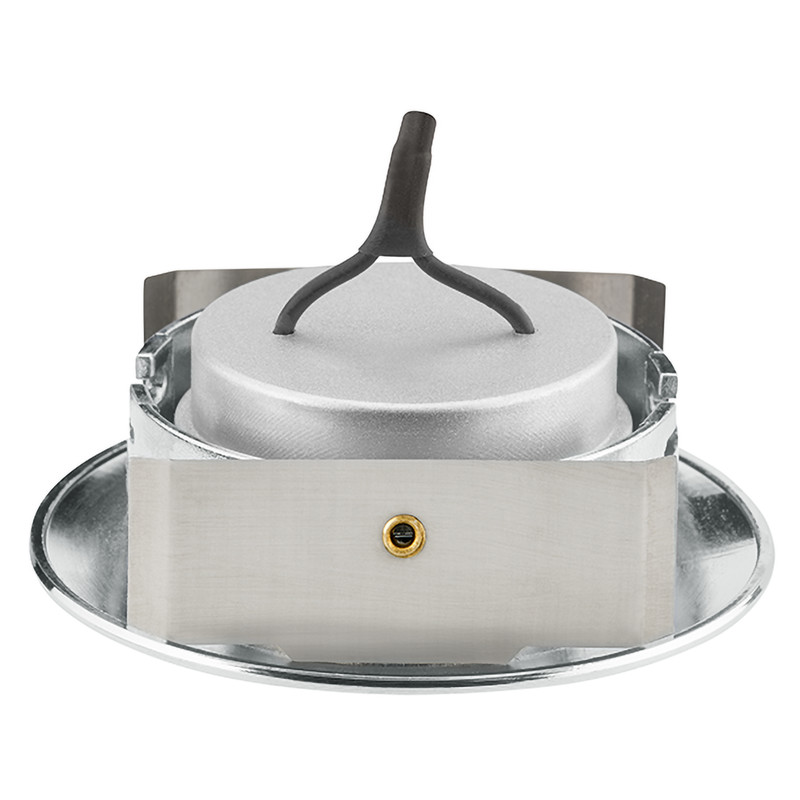

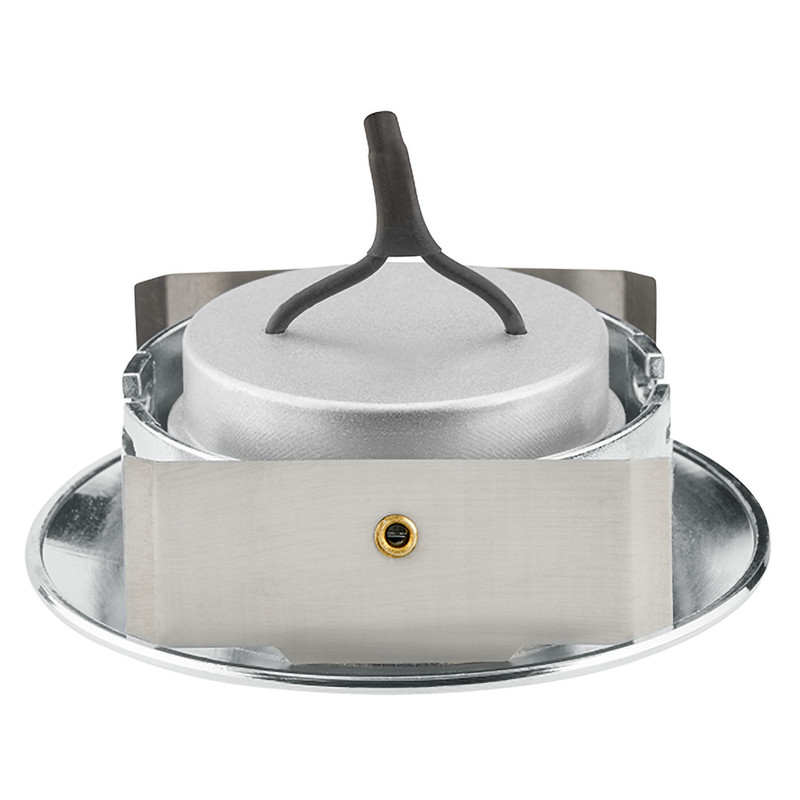

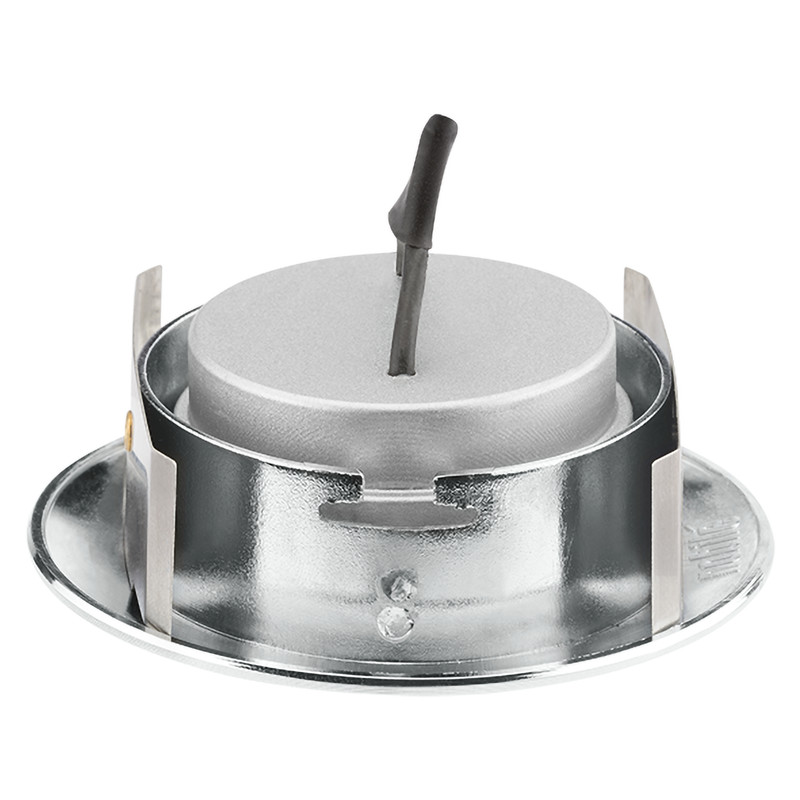

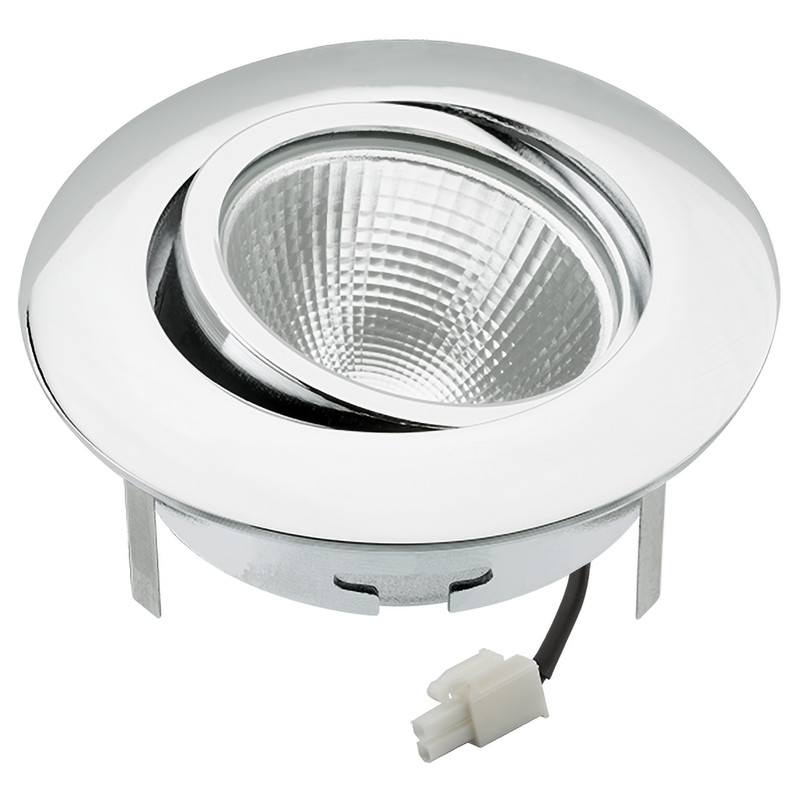

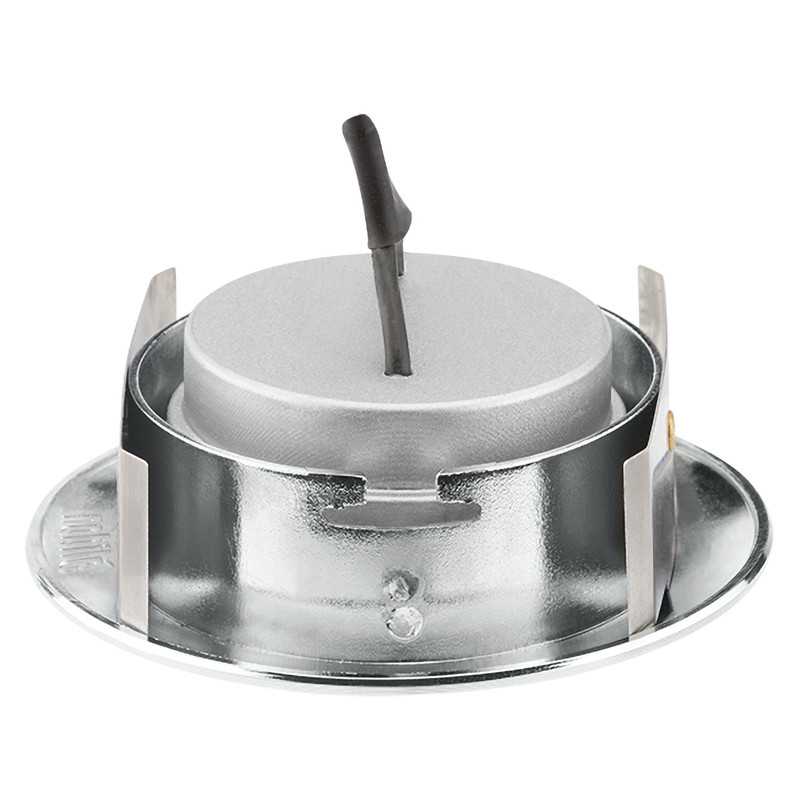

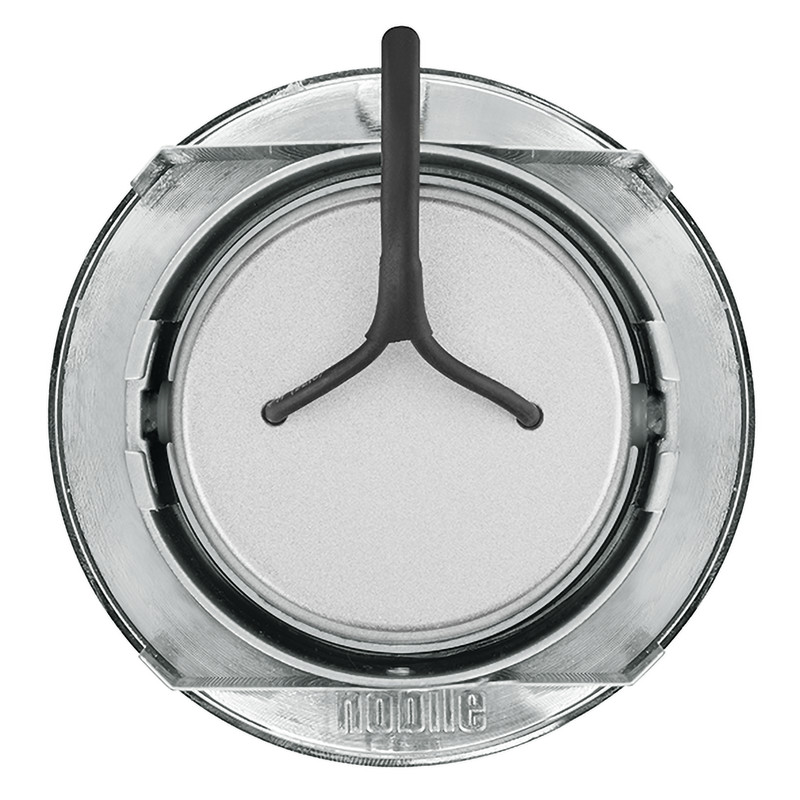

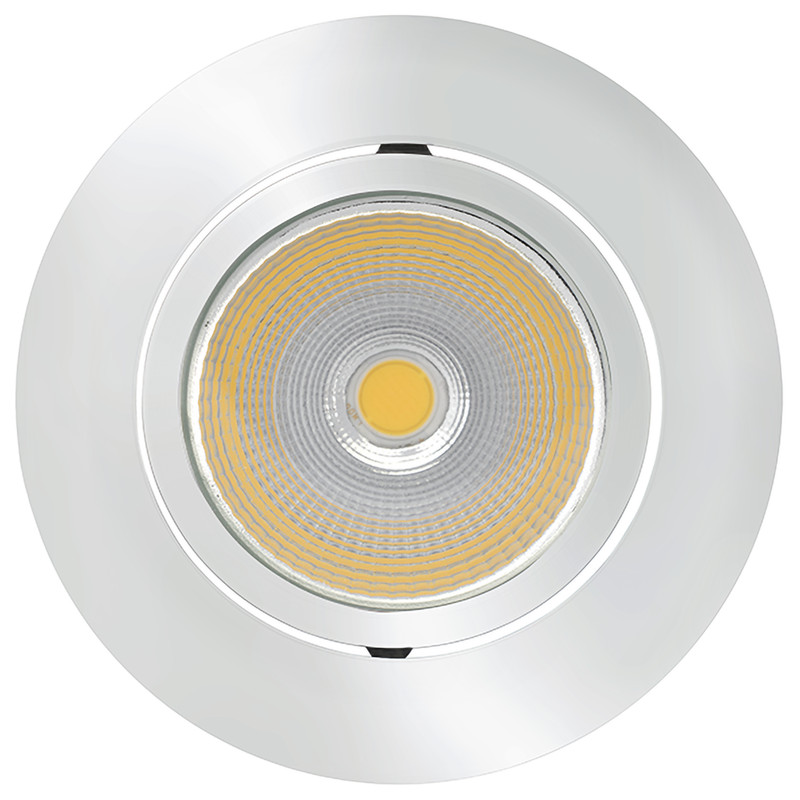

5068 ECO Flat chrom 6W SCCT 38° 350mA
EAN: 4044538072173
For use in spot and general lighting.
Tunable White technology allows dynamic adjustment of illuminance and colour temperature. A second option is the setting of individual lighting scenes. With the appropriate control and programming, this technology supports the concept of Human Centric Lighting (HCL) with a simulation of the course of daylight that is as true to nature as possible.
Ideal problem solver for ceilings with low installation depth
Aluminum heat sink
The luminaire is only suitable for installation in false ceilings. Installed downlight must not be covered by insulation material. Ensure constant convection.
Installation housing: the LED Downlight can generally be installed in all standard housings for the installation in concrete ceilings; specially tested are the housings from KAISER: HaloX® 100 with tunnel 190 (Type 1281-30) + Front section, i. e. type 1281-11/HaloX® 180 with tunnel 190 (Type 1282-72/1282-75)
Material: die-cast aluminium
Surface: powder coated or galvanized
Suitable for ceiling cut-out: 68 mm
Colour rendering index Ra: 90
Colour distance (MacAdam): 3 SDCM
Life time: 50,000 h (L80 B10)
Recommendation LED driver:
Part No. 8999011353 EL-22 Uni 225-600 TUN-2CH dim Dali-2 push
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes LVD Standard EN 60598-1:2015; EN 60598-2-2:2012; EN 62471:2008 Protection class III Degree of protection IP40 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] flammable materials Installation in insulated ceilings, fire protection 'F with roof' yes Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Material and colour
Reflector colour silver Material housing die-cast aluminium Colour housing chrome Surface of the housing galvanized Material cover glass Heat sink yes Material of Heat sink aluminium Material of reflector aluminium Front glass yes - Product contents
With light source yes Including LED driver no - Technical lighting specifications
Light cone Medium beam 21-40° Suitable for number of light sources 1 Colour temperature [K] 2700 - 6500 LED efficiency [lm/W] 95 Total luminous flux [lm] 540 - 570 Beam angle [°] 38 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 90 Light distributor reflector L70B50 - life time at 25°C [h] 50000 Colour controllable (RGB) no Total lumen setting adjustable no Constant light output (CLO) no Light source replaceable no Luminaire lighting surface transparent Light sharing symmetric Light outlet direct Lamp type COB LED Minimum distance per luminaire [m] 0,05 - Electrical specifications
Type of LED driver LED operating device current-controlled Lamp power [W] 6 Nominal current of luminaire [mA] 350 Constant current [mA] 350 Type of wiring Ending Wire cross section Mini AMP plug (male) Cable conductor quantity 4 Length of cable [luminaire] [cm] 17 Cable cross section [luminaire] [mm²] 0,2 Exchangeable LED driver yes Dimmable yes Type of dimming Led driver dependent Nominal voltage [V] 17 Forward voltage drop (DC) [V] 17 - Other specifications
Operation by Bluetooth no Adjustability Swivelling Compatible with Casambi no Type of luminaire recessed luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for built-in mounting yes Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Adjustable [°] 20 Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector high gloss - Dimensions and weight
Length [mm] 88 Width [mm] 88 Diameter [mm] 88 Height [mm] 39 Weight [g] 155 Built-in depth [mm] 34 Ceiling cut-out [mm] 68
