A 5068 s.-mounted m. white 9,5W BIO 950 38° dim C

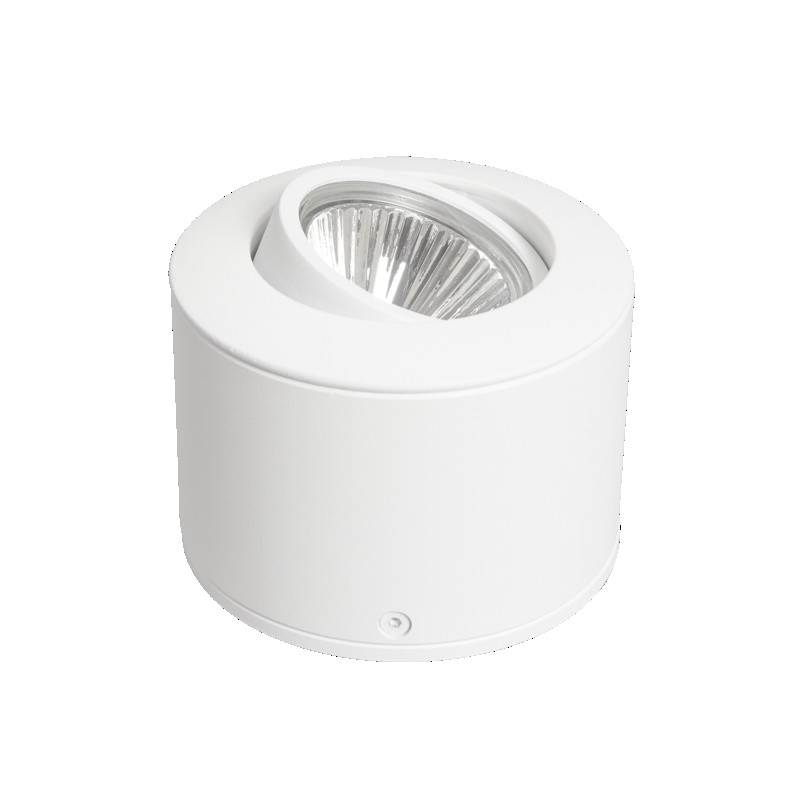

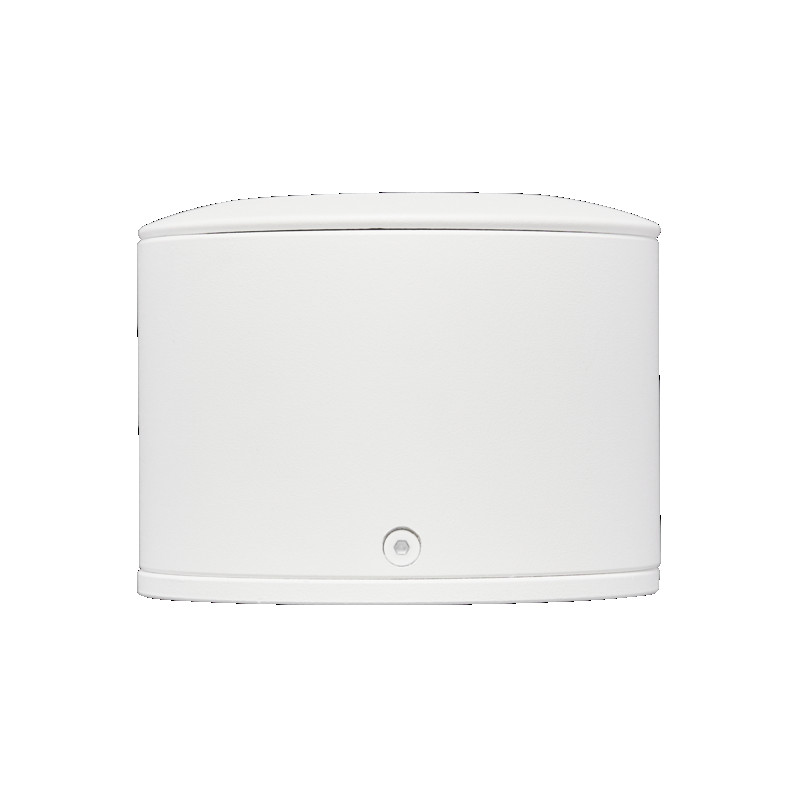

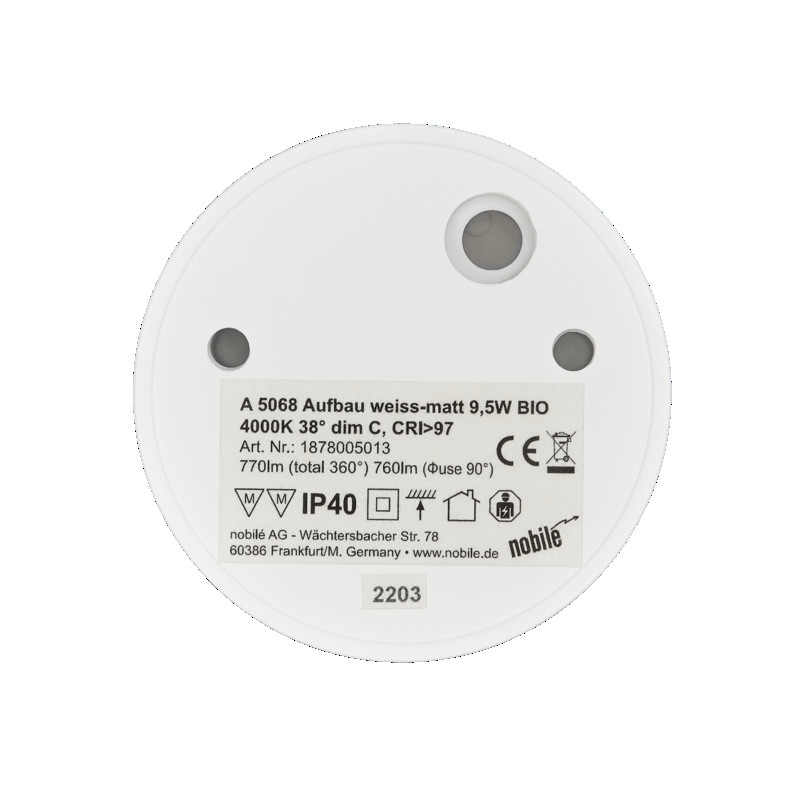

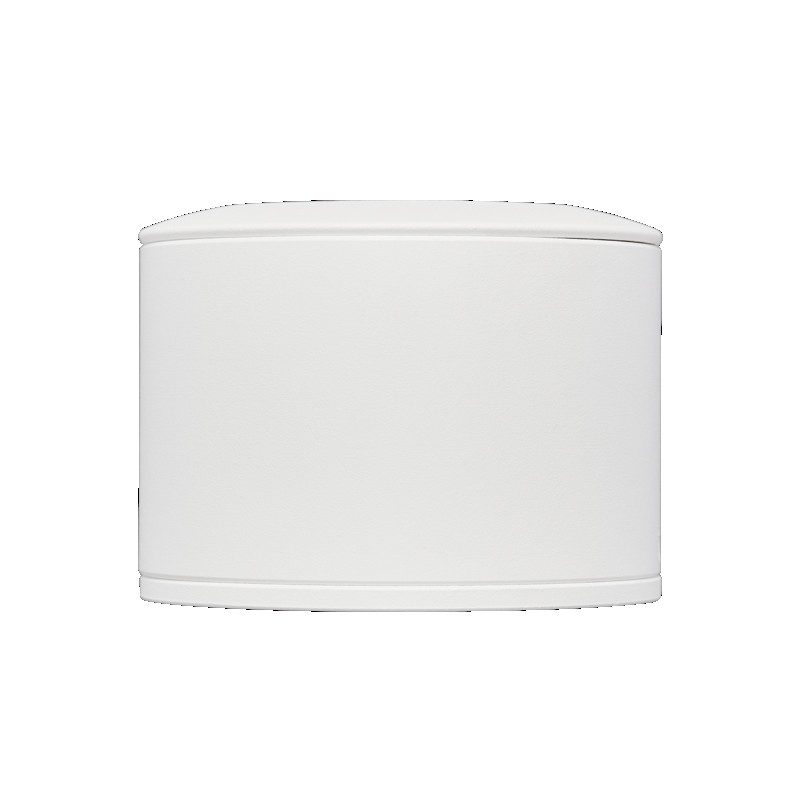

LED Downlight A 5068 Surface-Mounted BIO, COB LED, adjustable
For use in spot and general lighting.
Front glass
Genuine glass reflector
Aluminum heat sink
Material: die-cast aluminium
Surface: galvanized or powder coated
Colour rendering index Ra: 97
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver included: dimmable with trailing edge
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class II Degree of protection IP40 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' yes - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Product contents
With light source yes Including LED driver yes - Technical lighting specifications
Light cone Medium beam 21-40° Colour temperature [K] 5000 Total luminous flux [lm] 770 Beam angle [°] 38 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 97 Colour rendering index R9 86 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 1200 Light distributor reflector L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Colour controllable (RGB) no Colour temperature adjustable no Light sharing symmetric Light outlet direct Lamp type COB LED Suitable for number of lamps 1 - Dimensions and weight
Diameter [mm] 89 Height [mm] 65 Weight [g] 470 - Other specifications
Operation by Bluetooth no Adjustability Swivelling Mounting method surface mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Adjustable [°] 20 Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector high gloss Suitable for lighting accessories no - Material and colour
Reflector colour silver Material housing die-cast aluminium Colour housing matt white Material cover glass Heat sink yes Material of Heat sink aluminium Material of reflector glass Front glass yes Colour matt white - Electrical specifications
Type of LED driver LED driver Lamp power [W] 8 Max. system power [W] 9,5 Rated voltage of the LED driver [AC [V] 220 - 240 Input frequency [Hz] 50 - 60 Lamp holder without Wire cross section 15 cm with Mini AMP plug system 2-pole Exchangeable LED driver yes Dimmable yes Type of dimming trailing edge Through-wiring possible no Electrical connection with connector system yes
