Window/Door contact sensor BT

Smartmatic 2.0 Window/Door Contact

SKU: 9109011006
EAN: 4044538074009

Battery operated

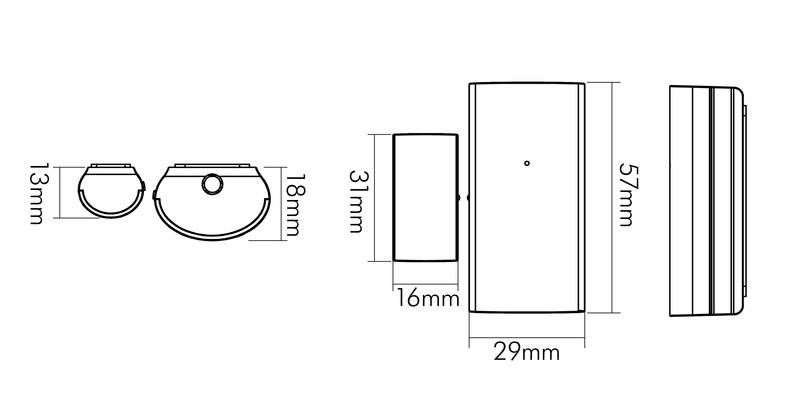

Dimensions (LxWxH): 29x18x57 mm

Dimensions (LxWxH): 16x13x31 mm

weniger lesen

	Montageanleitung
	Produktdatenblatt
	Ausschreibungstext neutral
	Ausschreibungstext nobilé

Temperature specifications

Ambient temperature [Ta] [°C]	-10 - 50

Protection specifications

CE-Conformity	yes
RoHS	yes
EMC Standard	EN 55032; EN 55035
RED Standard	ETSI EN 300 328 V2.2.2; ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-17 V3.2.4; EN 62368-1; EN 50663
Degree of protection	IP20
Only for indoor use	yes

Other specifications

Model	Window/Door Contact
Kind of disposal at the end of the life time	specific collection points, please consider the local regulations
APP	Smartmatic 2.0

Material and colour

Material housing	synthetic material
Colour housing	white

Dimensions and weight

Length Window/door contact [mm]	57
Length Magnet unit [mm]	31
Width Window/door contact [mm]	29
Width Magnet unit [mm]	16
Height Window/door contact [mm]	18
Height Magnet unit [mm]	13
Weight [g]	27

Product contents

Battery included	yes

Electrical specifications

Type of battery	Lithium
Battery type	CR2
Radio frequency [GHz]	2,4
Power supply	battery
Control system	Smartmatic
Frequency band	2.4GHz
Transmission protocol	BLE 4.2 (Mesh)
Transmission power [dBm]	10
Supported operating systems (OS)	Android/iOS
Radio range outdoors [m]	90
