Plug BT

Smartmatic 2.0 Plug

SKU: 9109011002
EAN: 4044538073965

The plug can switch the connected device on and off with the help of the app It has a child or touch protection

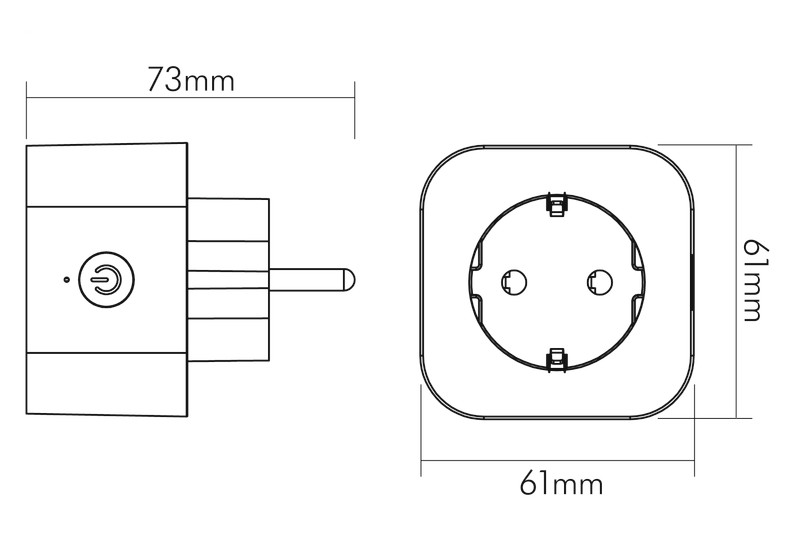

Dimensions (LxWxH): 61x73x61 mm

weniger lesen

	Montageanleitung
	Produktdatenblatt
	Ausschreibungstext nobilé
	Ausschreibungstext neutral

Temperature specifications

Ambient temperature [Ta [°C]	-10 - 40

Material and colour

Material housing	synthetic material
Colour housing	white

Dimensions and weight

Protection specifications

Other specifications

Kind of disposal at the end of the life time	specific collection points, please consider the local regulations
APP	Smartmatic 2.0

Electrical specifications

Input frequency [Hz]	50 - 60
Radio frequency [GHz]	2,4
Input voltage [AC] [V]	90 - 250
Power supply	Mains voltage
Output current [DC] [A]	16
Input current [A]	16
Control system	Smartmatic
Frequency band	2.4GHz
Transmission protocol	BLE 4.2 (Mesh)
Transmission power [dBm]	10
Supported operating systems (OS)	Android
Radio range outdoors [m]	90
