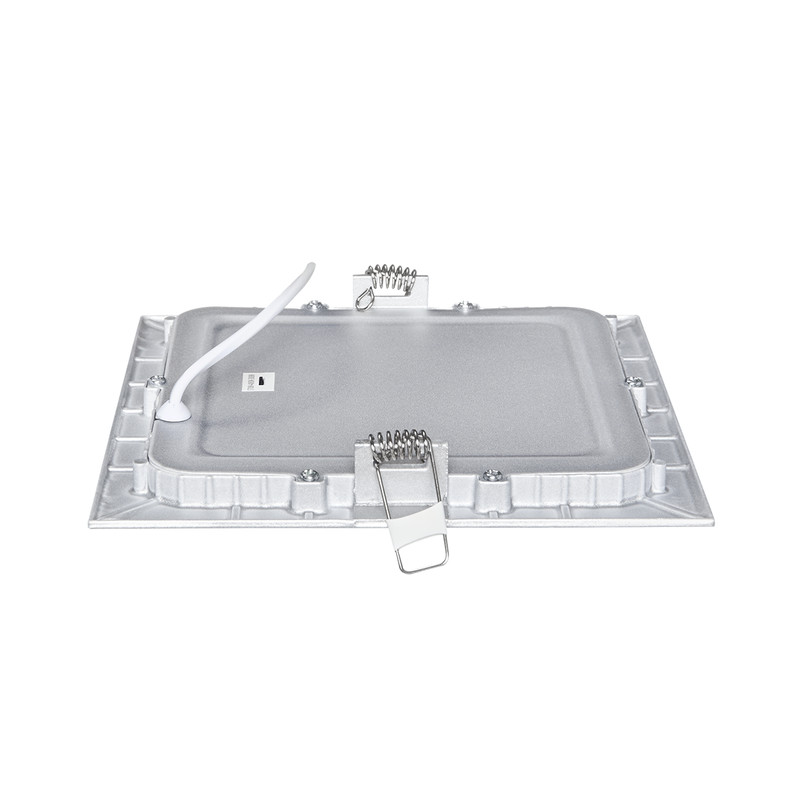

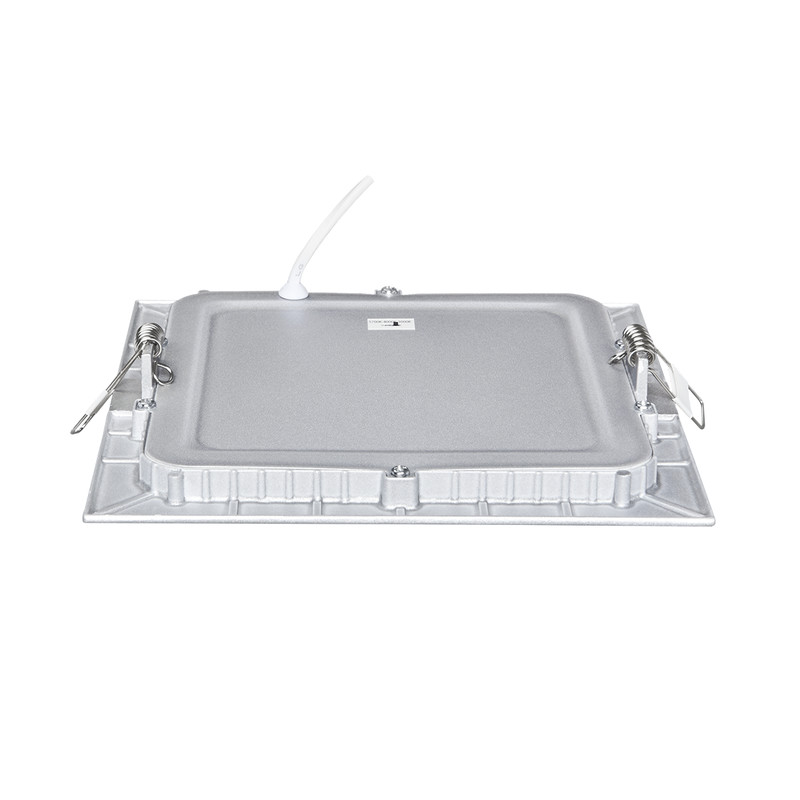

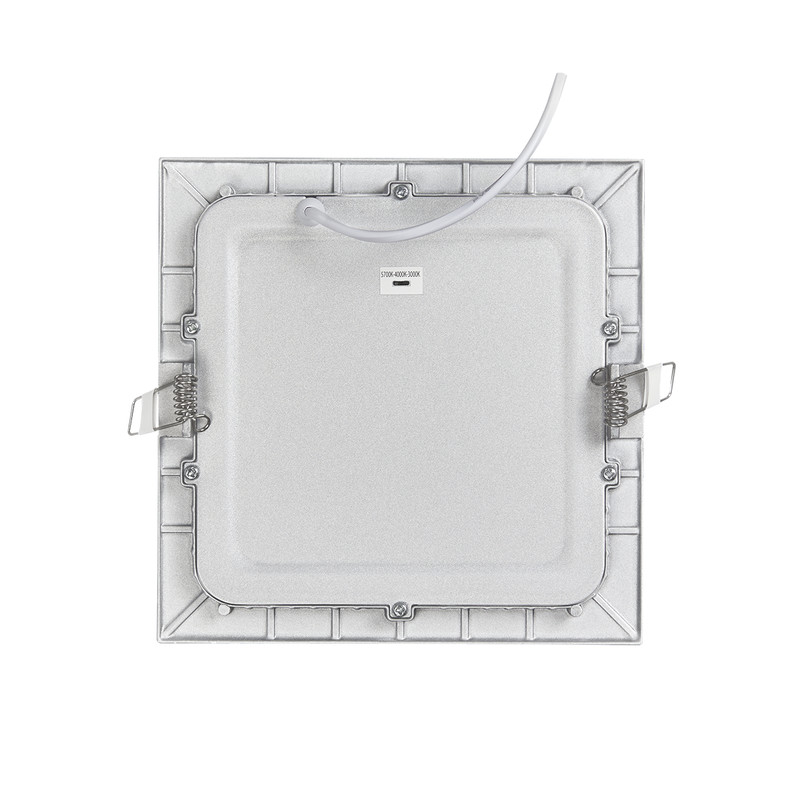

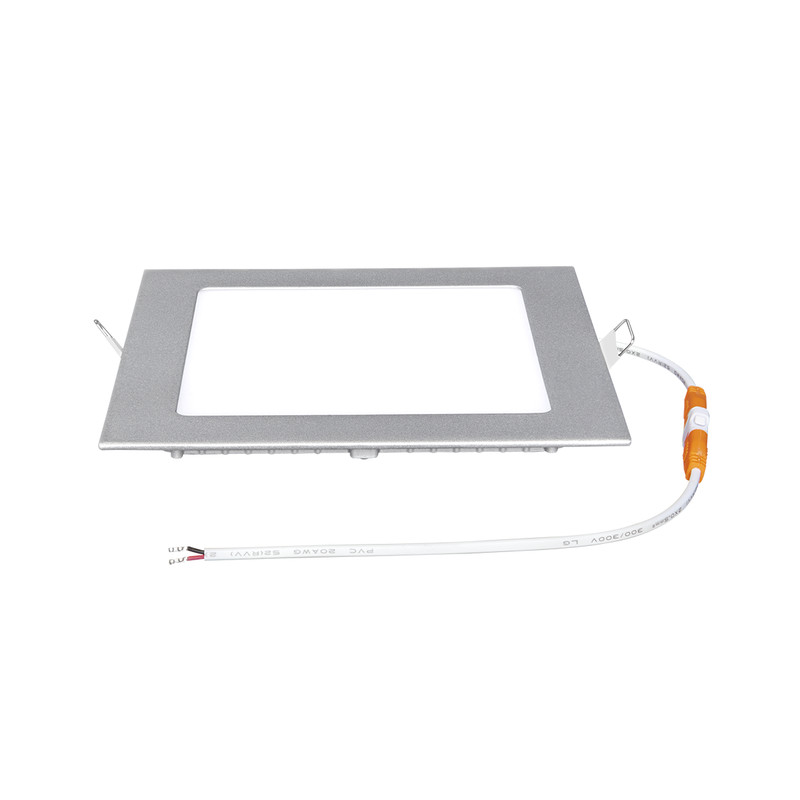

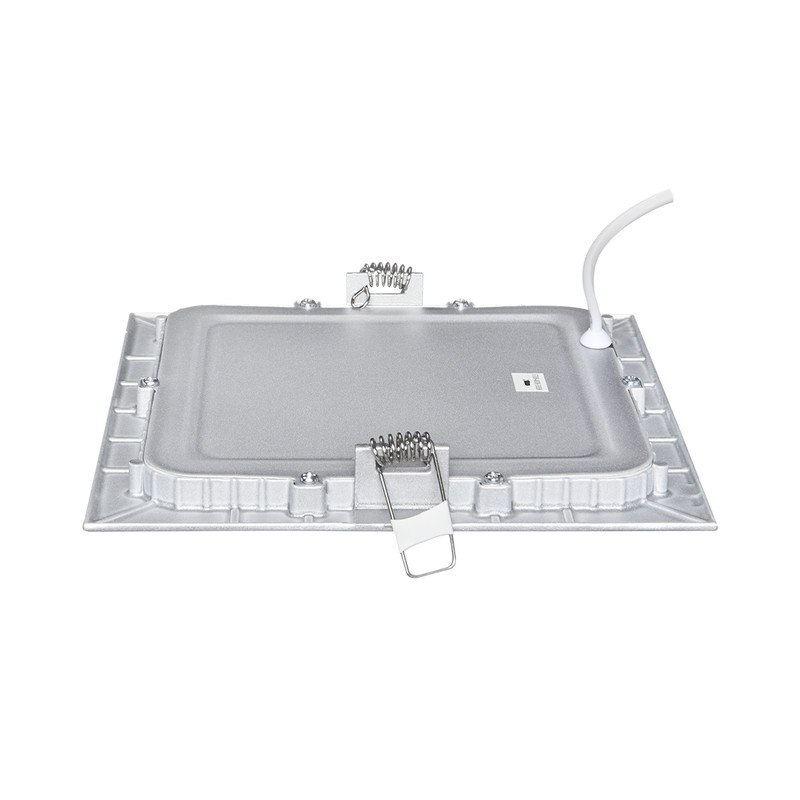

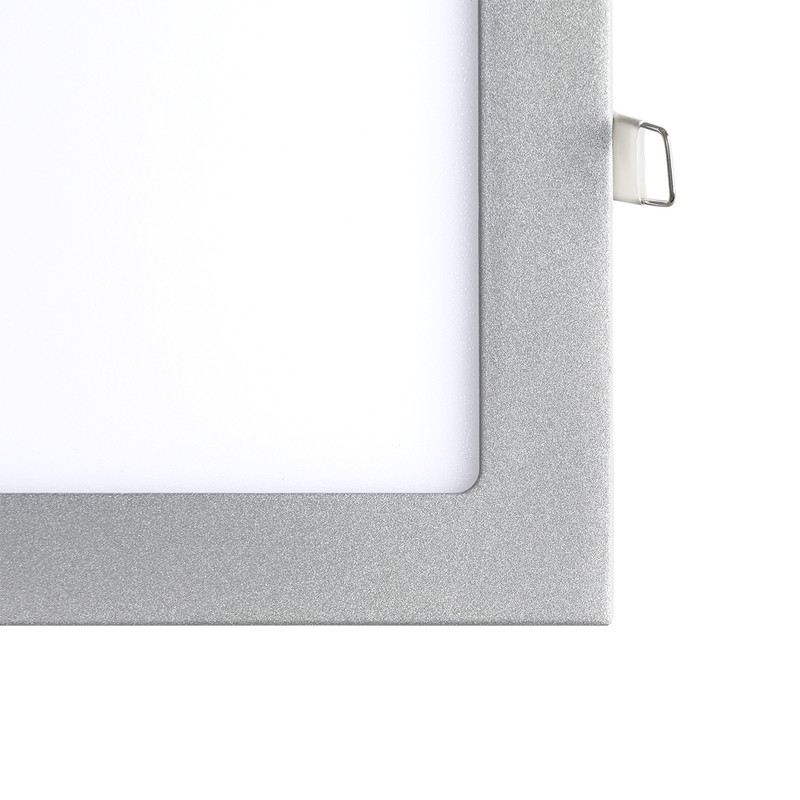

LED Panel Flat 130 Q matt titanium 11W SCCT 350mA
Switchable Color Temperature - SCCT.
Decide on your color temperature before installing the luminaire! Adjust it, by means of a switch, to the desired color temperature without further ado.
Even LED light distribution throughout the entire emitting surface.
Material: aluminium/diffuser and light guide made of PMMA (non-yellowing)
Dimensions (LxWxH): 170x170x22 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 4 SDCM
Life time: 50.000 h (L80 B10)
LED driver: not included
Dimmable: LED driver dependent
Recommendation LED driver:
Part no. 8990153510 EL-15-350 non dim, non dimmable
Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP20 Impact strength IK00 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Fire resistance 'D' no - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Material and colour
Material housing aluminium Colour housing matt titanium Surface of the housing painted Material diffuser PMMA Material lightguide PMMA - Other specifications
Type of luminaire recessed luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting yes Suitable for suspended mounting no Suitable for built-in mounting yes Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Product contents
Including LED driver no - Technical lighting specifications
Colour temperature 2 [K] 4000 Colour temperature 3 [K] 5700 Light cone Open beam/diffuse Suitable for number of light sources 1 Colour temperature [K] 3000 Colour of light warm white till halogen white LED efficiency [lm/W] 100 Total luminous flux at 3000 K [lm] 1000 Total luminous flux at 4000 K [lm] 1100 Total luminous flux at 5700 K [lm] 1100 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 4 Colour rendering index Ra 80 Colour rendering index R9 22 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable Positions Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type SMD-LED Color temperature control Switchable Color Temperature (SCCT) - Dimensions and weight
Length [mm] 170 Width [mm] 170 Height [mm] 22 Weight [g] 350 Light outlet opening [lenght] [mm] 125 Light outlet opening [width] [mm] 125 Ceiling cut-out (length) [mm] 150 Ceiling cut-out [width] [mm] 150 Built-in depth [mm] 25 - Electrical specifications
With movement sensor no Type of LED driver LED operating device current-controlled Lamp power [W] 11 Nominal current of luminaire [mA] 350 Rated voltage of luminaire [DC] [V] 32 Constant current [mA] 350 Lamp holder without Type of wiring Ending Wire cross section CCV male plug (+ CCV female plug with open cable ends) Cable conductor quantity 2 Exchangeable LED driver no Dimmable yes Type of dimming Led driver dependent Length of cable [cm] 45 Conductor diameter [mm²] 0,5
