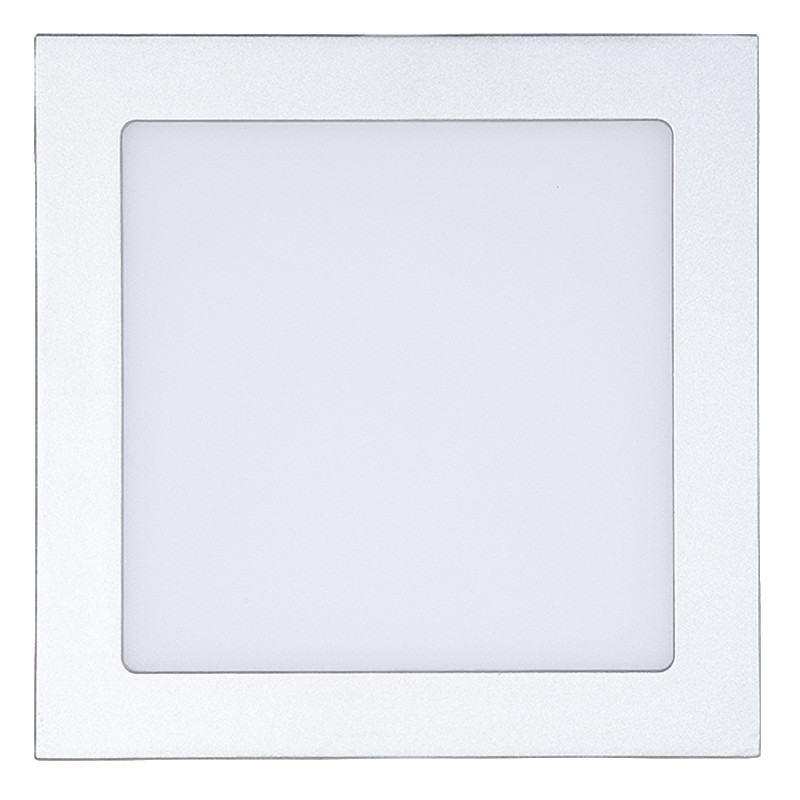

LED Panel Flat 130 Q titan-matt 11W DTW 830 350mA
EAN: 4044538073811
Dim to Warm - the lighting effect becomes warmer and warmer as the LEDs are dimmed down. Parallel to the brightness, the color temperature also reduces continuously.
Even LED light distribution throughout the entire emitting surface.
Material: aluminium/diffuser and light guide made of PMMA (non-yellowing)
Dimensions (LxWxH): 170x170x22 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 4 SDCM
Life time: 50.000 h (L80 B10)
LED driver: not included
Dimming: trailing edge
Recommendation LED driver:
Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge
Betriebsgerät: nicht inklusive
Dimmung: über Phasenabschnitt
Material: Aluminium/Diffusorscheibe und Lightguide aus PMMA (vergilbungsfrei)
Abmessungen (LxBxH): 170x170x22 mm
Farbwiedergabeindex Ra: 80
Farbabstand (MacAdam): 4 SDCM
Lebensdauer: 50.000 h (L80 B10)
Betriebsgerätempfehlung:
Art.-Nr. 8990153500 EL-15-350 D dim C, dimmbar über Phasenabschnitt
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes LVD Standard EN 60598-1; EN 60598-2-2; EN 62471 Protection class III Degree of protection IP20 Impact strength IK00 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Material and colour
Material housing aluminium Colour housing matt titanium Surface of the housing painted Material diffuser PMMA - Product contents
With light source yes Including LED driver no - Dimensions and weight
Length [mm] 170 Width [mm] 170 Height [mm] 22 Weight [g] 283 Light outlet opening [lenght] [mm] 125 Light outlet opening [width] [mm] 125 Ceiling cut-out (length) [mm] 150 Ceiling cut-out [width] [mm] 150 Built-in depth [mm] 25 - Technical lighting specifications
Colour temperature [K] 2000 - 3000 Total luminous flux at 3000 K [lm] 1100 Total luminous flux at 2000 K [lm] 60 Beam angle [°] 120 Colour consistency (MacAdam) [SDCM] 4 Colour rendering index Ra 80 Colour rendering index R9 8 Peak luminous intensity [cd] 400 L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Total lumen setting adjustable no Colour temperature adjustable Continuously variable Light source replaceable no - Other specifications
Type of luminaire panel luminaire Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting yes Suitable for suspended mounting no Suitable for built-in mounting yes Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Electrical specifications
Lamp power [W] 11 Nominal current of luminaire [mA] 350 Rated voltage of luminaire [DC] [V] 32 Constant current [mA] 350 Lamp holder without Type of wiring Ending Wire cross section CCV male plug (+ CCV female plug with open cable ends) Cable conductor quantity 2 Exchangeable LED driver no Dimmable yes Type of dimming Led driver dependent Length of cable [cm] 40 LED driver LED operating device current-controlled Conductor diameter [mm²] 0,33
