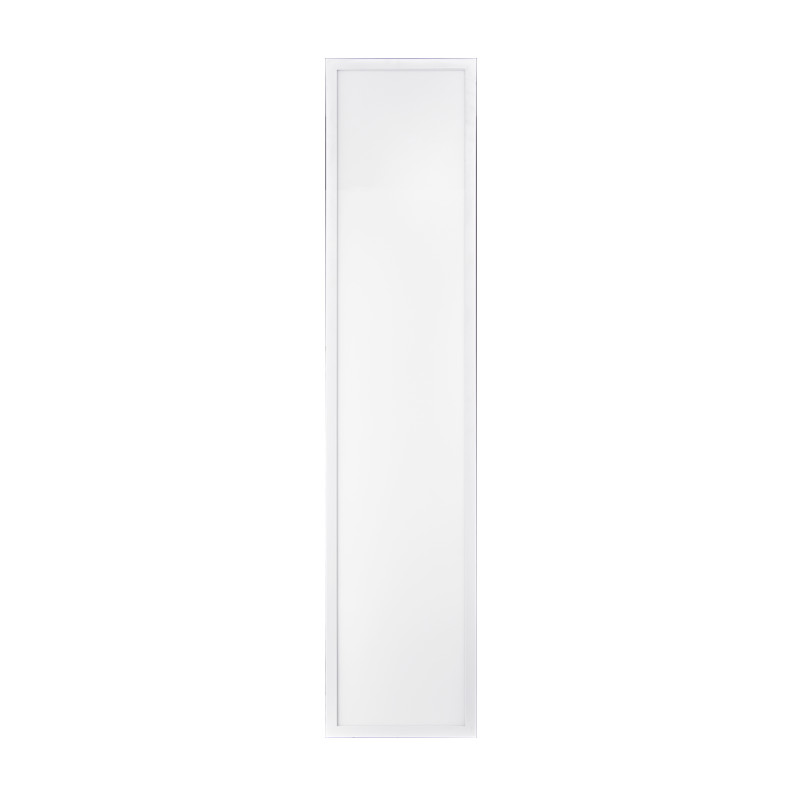

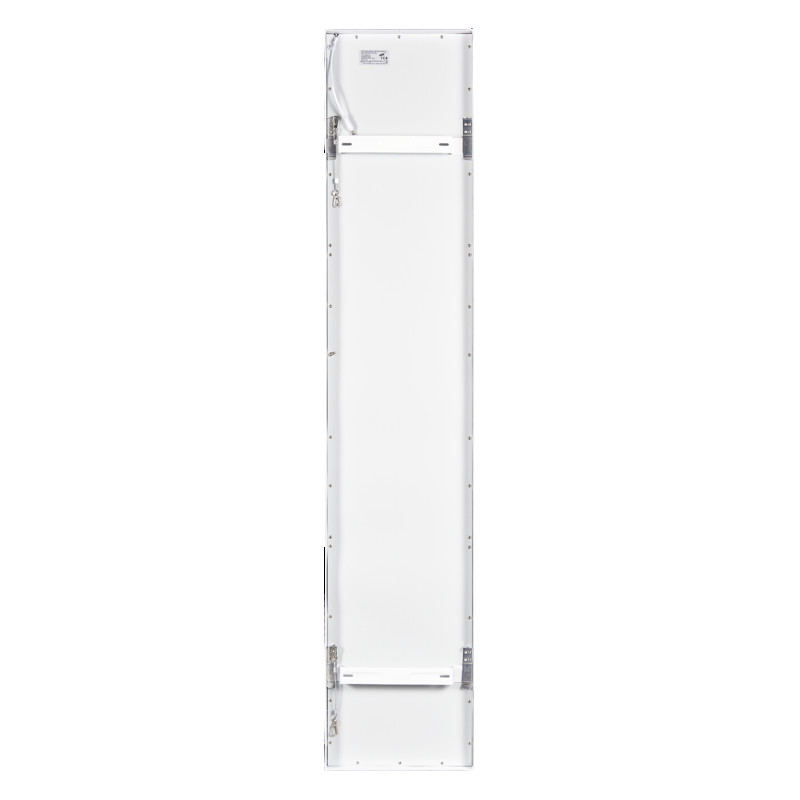

LED Panel s.mount 1247x310 UGR<19 w. 38-840 n.dim

LED Panel surface-mounted for easy and rapid installation
SKU: 1580381011
EAN: 4044538072265
Article Choice

The luminaire convinces with its high energy efficiency as well as its clear and unobtrusive design.

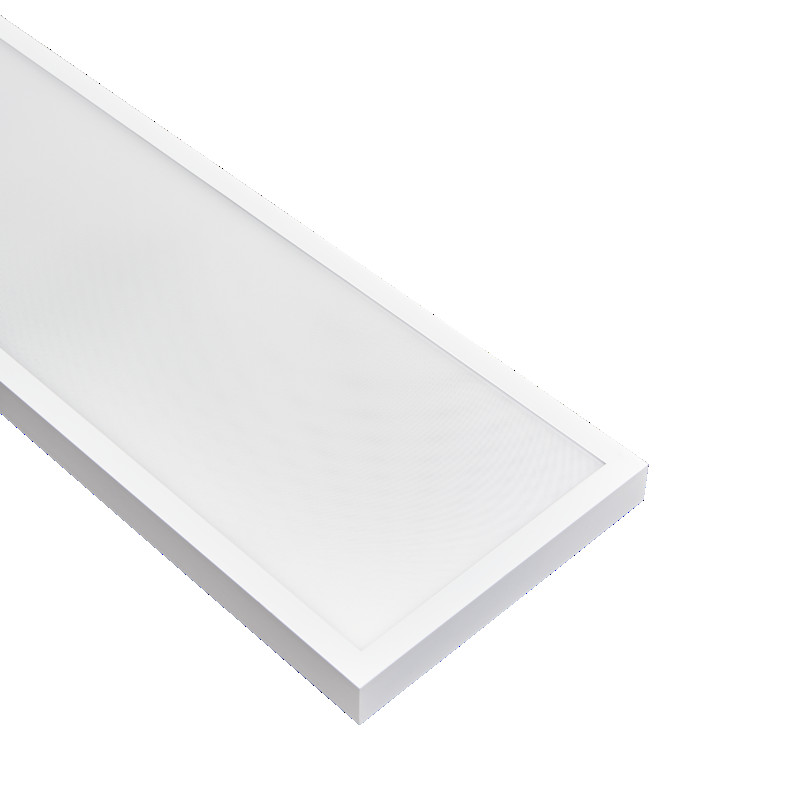

A special feature is the low construction that’s a reason why the luminaire is the right choice for a harmonious general lighting. It can be integrated discreetly into all rooms.

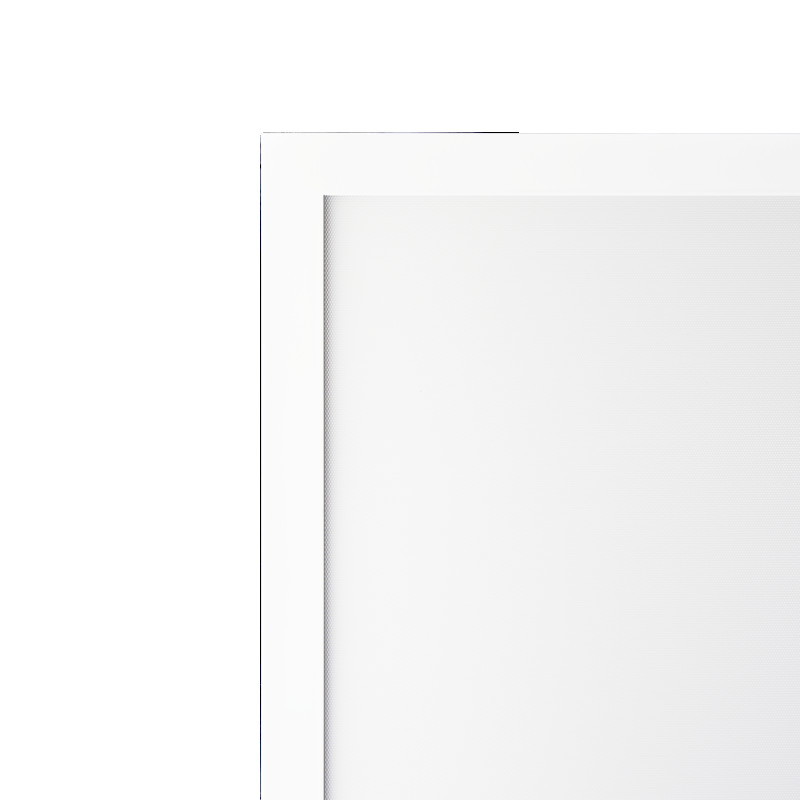

Material: aluminium white painted/Microprism diffuser made of PMMA (non-yellowing)

Dimensions (LxWxH): 1247x310x45 mm

Colour rendering index Ra: 80

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

LED driver included: non dimmable

Terminal block and through-wiring (L, N, PE)

Betriebsgerät: inklusive

Dimmung: nicht dimmbar

Material: Aluminium weiß lackiert/Microprismenscheibe aus PMMA (vergilbungsfrei)

Abmessungen (LxBxH): 1247x310x45 mm; Lichtaustrittsöffnung (LxB): 1203x266 mm

Farbtemperatur: 4000 K (neutralweiß)

Farbwiedergabeindex Ra: 80; Farbabstand (MacAdam): 3 SDCM

Lebensdauer: 50.000 h (L70 B50)/50.000 h (L80 B10)

weniger lesen
mehr lesen

Downloads

MontageanleitungMontageanleitung
ProduktdatenblattProduktdatenblatt

Technical Data

  • Other specifications
    BEG funding yes
    Mounting method surface mounted
    Type of luminaire panel luminaire
    Suitable for general lighting yes
    Suitable for recessed wall installation no
    Suitable for wall mounting no
    Suitable for suspended mounting no
    Suitable for built-in mounting no
    Suitable for ceiling mounting yes
    Suitable for surface mounting yes
    Suitable for light line configuration no
    Operation by Bluetooth no
    Compatible with Apple HomeKit no
    Compatible with Google Assistant no
    Compatible with Amazon Alexa no
    IFTTT support available no
    Kind of disposal at the end of the life time specific collection points, please consider the local regulations
    Reflector without
    Independant installation yes
  • Protection specifications
    CE-Conformity yes
    RoHS yes
    EMC Standard EN 55015:2013 + A1:2015; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013
    LVD Standard EN 60598-1; EN 60598-2-1
    Protection class I
    Degree of protection IP40
    Impact strength IK04
    Installation, electrical engineering expertise yes
    Only for indoor use yes
    Furniture installation, fire protection 'MM' yes
    Installation note [flammable materials] surface-mounted luminaire for direct mounting on normal flammable surfaces
  • Temperature specifications
    Ambient temperature [Ta] [°C] 0 - 40
  • Material and colour
    Material housing aluminium
    Colour housing white
    Surface of the housing painted
    Material diffuser PMMA
    Diffuser surface micro prismatic
  • Technical lighting specifications
    Light cone Open beam/diffuse
    Colour temperature [K] 4000
    LED efficiency [lm/W] 138
    LED efficiency [system] [lm/W] 123
    Total luminous flux [lm] 4700
    Beam angle [°] 90
    Colour consistency [MacAdam] [SDCM] 3
    Colour rendering index Ra 80
    Colour rendering index R9 9
    Unified Glare Rating [UGR] 19
    Anti-glare limiting [UGR] lengthwise 19
    Anti-glare limiting [UGR] crosswise 18,7
    Fit for monitor workplace acc. EN 12464-1 yes
    Luminance y ≥ 65° ≤3000 cd/m2
    Peak luminous intensity [cd] 2369
    Light distributor Diffuser
    L80B10 - life time at 25 °C [h] 60000
    L70B50 - life time at 25°C [h] 70000
    Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80
    Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10
    Colour controllable (RGB) no
    Total lumen setting adjustable no
    Colour temperature adjustable no
    Constant light output (CLO) no
    Light input sidelit
    Light sharing symmetric
    Light outlet direct
    Lamp type SMD-LED
    Suitable for number of lamps 1
  • Product contents
    With light source yes
    Including LED driver yes
  • Dimensions and weight
    Length [mm] 1247
    Width [mm] 310
    Height [mm] 45
    Weight [g] 4000
    Light outlet opening [lenght] [mm] 1203
    Light outlet opening [width] [mm] 266
  • Electrical specifications
    Lamp power [W] 34
    Max. system power [W] 38
    Nominal current of luminaire [mA] 1050
    Rated voltage of luminaire [DC] [V] 33
    Rated voltage of the LED driver [AC] [V] 220 - 240
    Lamp holder without
    Type of wiring Through wiring included
    Wire cross section Clamp 2x0.5-2.5 mm², 1x0.5-0.75 mm²
    Exchangeable LED driver yes
    Dimmable no
    Flicker free yes
    LED driver LED operating device current-controlled
    Rated current max. at 230V AC [A] 0,2
    Power factor > 0,9
