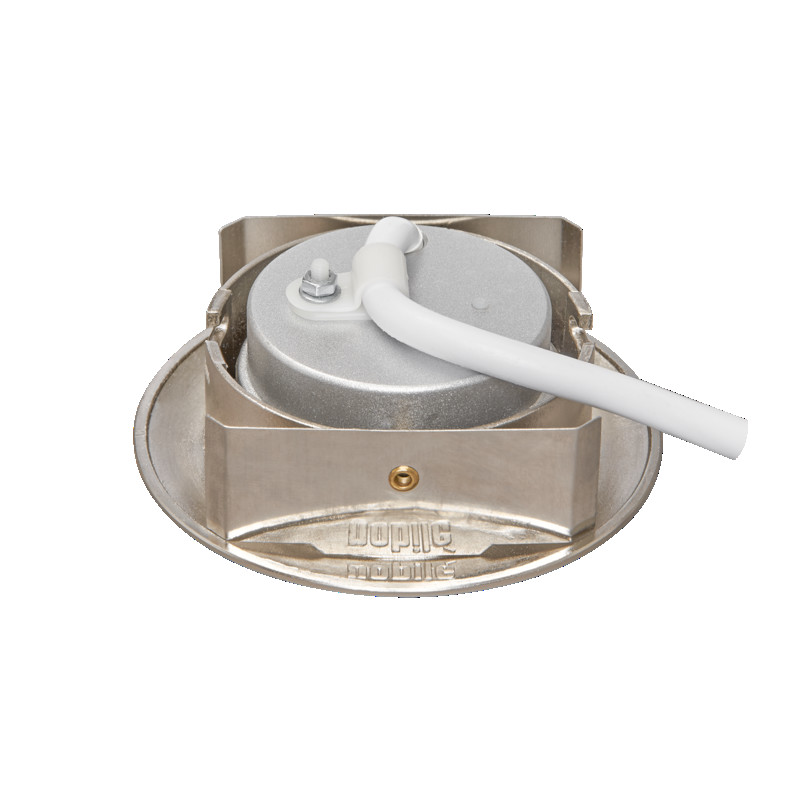

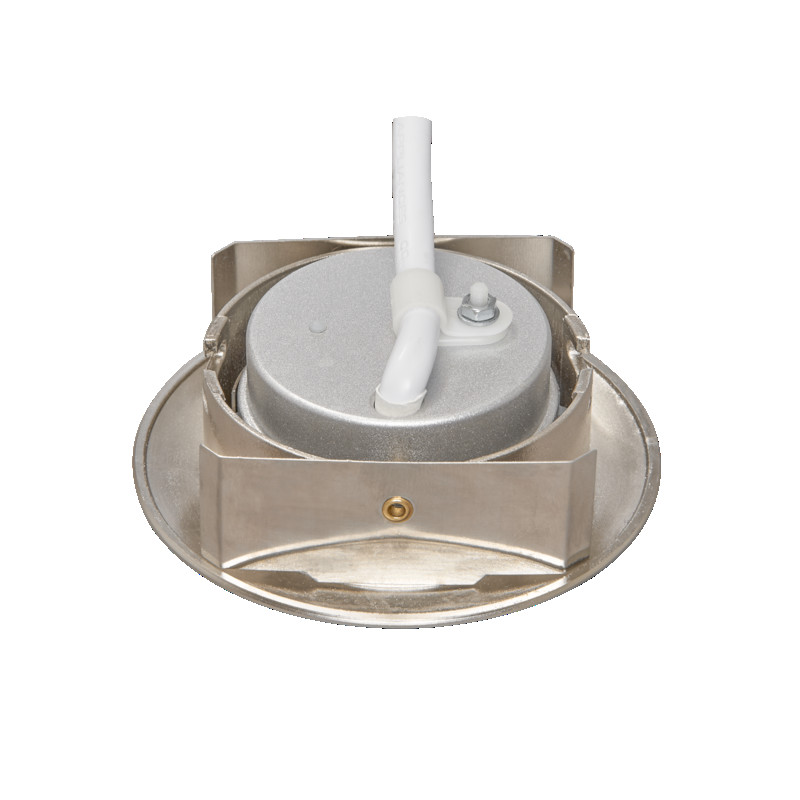

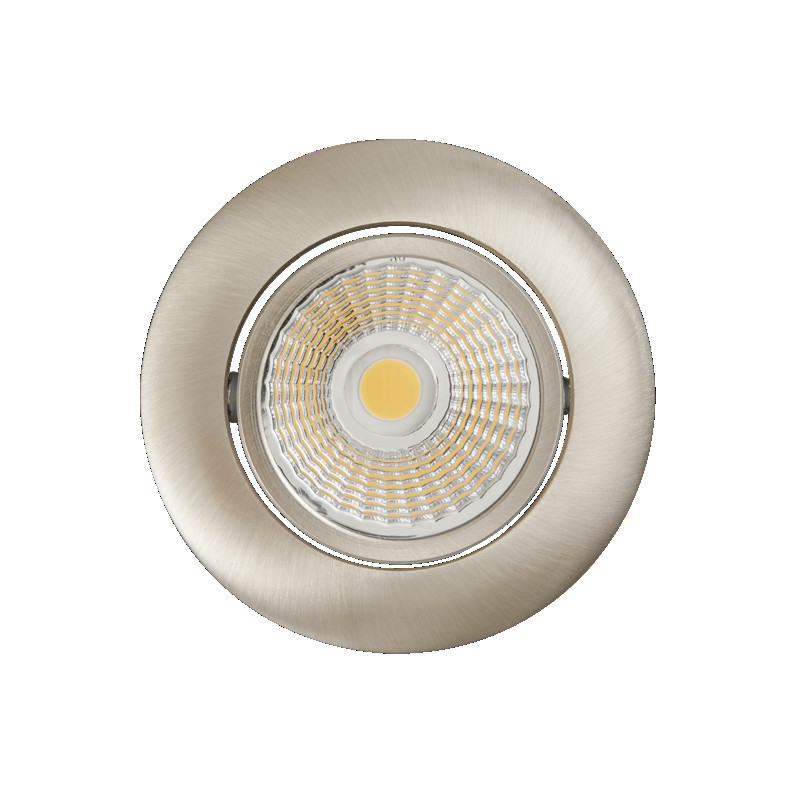

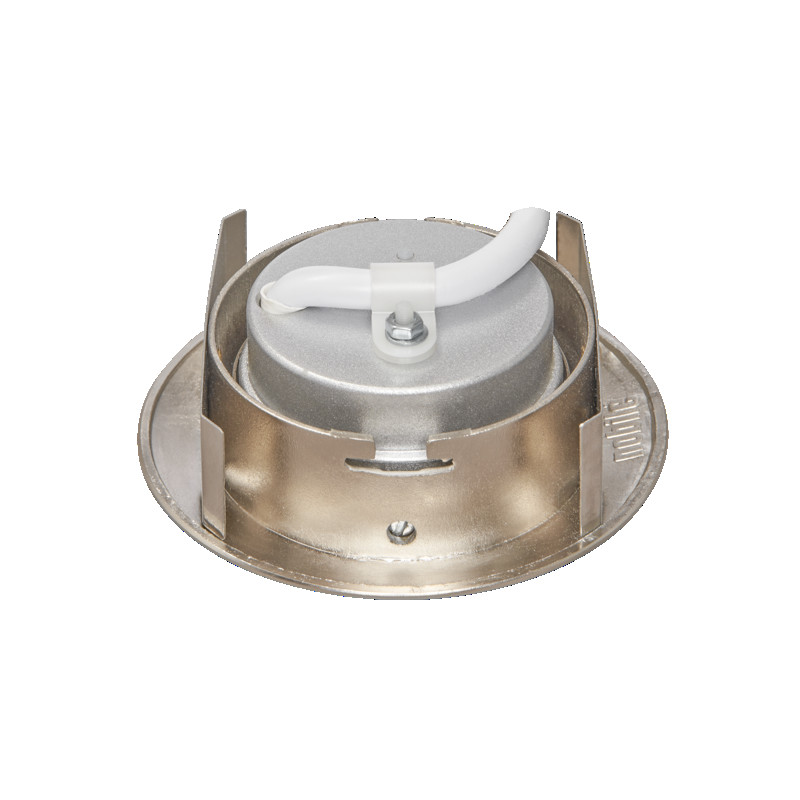

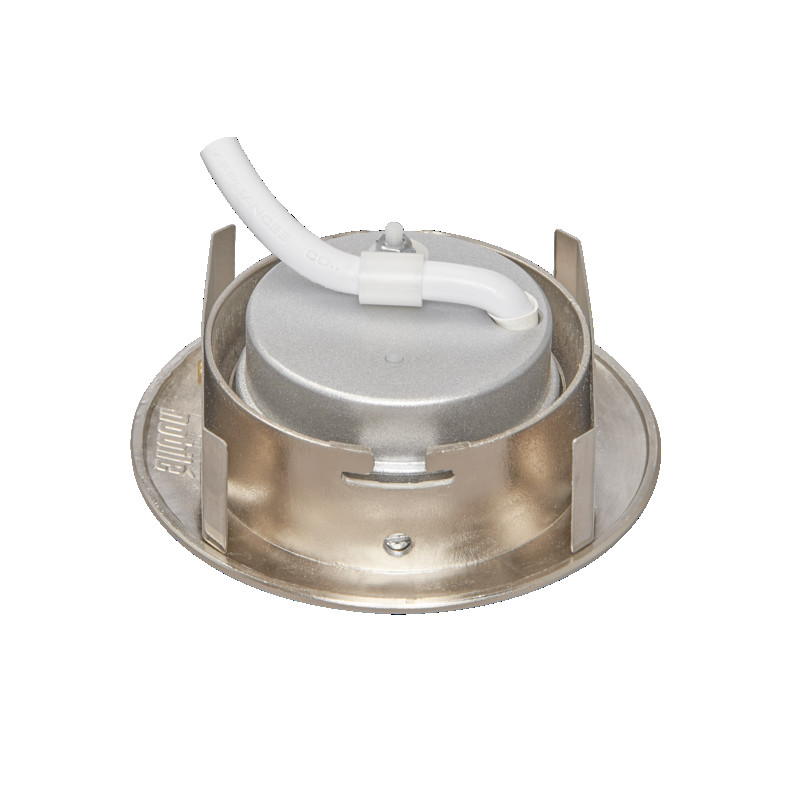

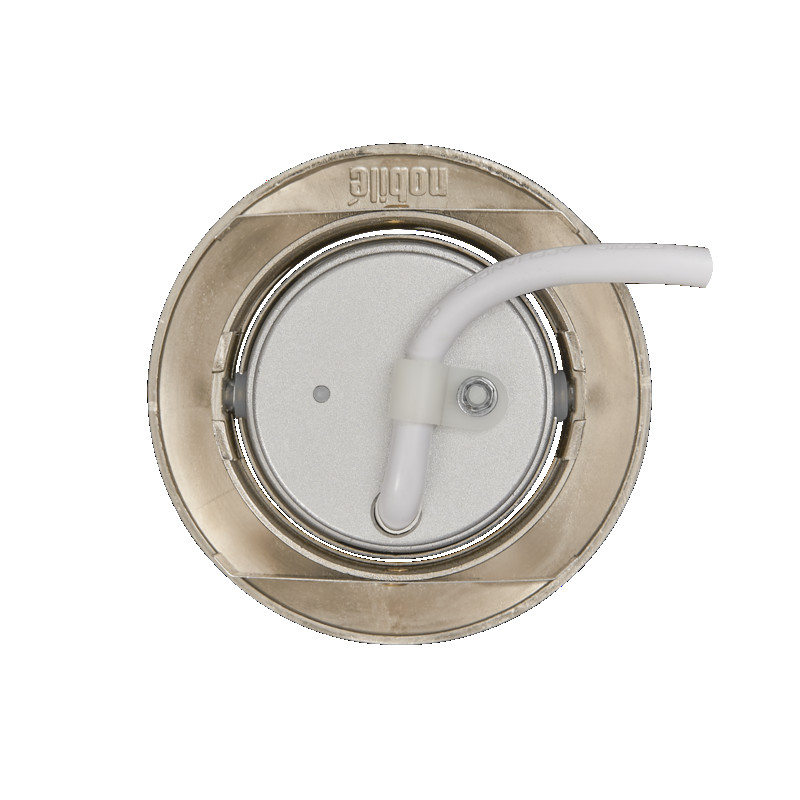

5068 ECO DOB nickel-brushed 6W 830 38° dim C
For use in spot and general lighting.
Ideal problem solver for ceilings with low installation depth
Front glass
Reflector coated with high-purity aluminum for efficient and accurate illumination
Aluminum heat sink
The luminaire is only suitable for installation in false ceilings. Installed downlight must not be covered by insulation material. Ensure constant convection.
Material: die-cast aluminium/glass
Surface: powder-coated or galvanized
Suitable for ceiling cut-out: 68 mm
Colour rendering index Ra: >80
Colour distance (MacAdam): 3 SDCM
Life time: 30.000 h (L70 B50)
LED driver: DOB (Driver on Board) integrated, dimmable with trailing edge
Terminal block and through-wiring (L, N, PE)
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes EMC Standard EN 55015:2015; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013 LVD Standard EN 60598-1:2015; EN 60598-2-2:2012; EN 62493:2015; EN 61347-1:2015; EN 61347-2-13:2014 Protection class I Degree of protection IP40 Impact strength IK00 Protection against overheating yes Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] flammable materials Installation in insulated ceilings, fire protection 'F with roof' yes Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Material and colour
Reflector colour silver Material housing die-cast aluminium Colour housing brushed nickel Surface of the housing galvanized Surface finish texture housing brushed Material cover glass Heat sink yes Material of Heat sink aluminium Material of reflector Plastic with aluminium coating Front glass yes - Product contents
With light source yes - Technical lighting specifications
Light cone Medium beam 21-40° Colour temperature [K] 3000 Colour of light warm white LED efficiency [system] [lm/W] 95 Total luminous flux [lm] 570 Beam angle [°] 38 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 21 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 900 Light distributor reflector L70B50 - life time at 25°C [h] 30000 Flicker Metric [Pst LM] 1 Stroboscopic effect metric [SVM] 0,4 Colour controllable (RGB) no Total lumen setting adjustable no Colour temperature adjustable no Light source replaceable no Luminaire lighting surface transparent Light sharing symmetric Light outlet direct Lamp type COB LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 88 Width [mm] 88 Diameter [mm] 88 Height [mm] 46 Weight [g] 165 Light portal opening [diamter] [mm] 48 Ceiling cut-out [diameter] [mm] 68 Built-in depth [mm] 45 - Other specifications
Operation by Bluetooth no Adjustability Swivelling Type of luminaire recessed luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Adjustable [°] 20 Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector high gloss Suitable for lighting accessories no - Electrical specifications
Type of LED driver LED operating device current-controlled Lamp power [W] 6 Lamp holder without Type of wiring Through wiring included Wire cross section Terminal block and through-wiring (L, N, PE) Exchangeable LED driver no Dimmable yes Type of dimming trailing edge Power factor (PF) 0,93 Through-wiring possible yes Nominal voltage [V] 230
